Products description

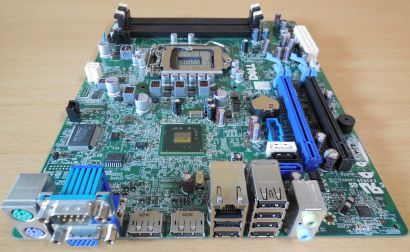

Dell Optiplex 7010 SFF Mainboard 0GXM1W Rev A00 Sockel 1155 Intel Q77 PCIe DDR3 DP VGA
Technische Daten
Hersteller Dell
Model 0GXM1W oder GXM1W Rev A00
Geeignet für Dell Optiplex 7010 SFF oder baugleich
Sockel Intel 1155
FSB prozessorabhängig
Prozessor
Intel® Quad Core Processors (Core™ i7 3770 / 3770S; Core™ i5 3570 / 3570S / 3470 / 3475S / 3470S / 3550 / 3550S / 3450 / 3450S)
Intel® Dual Core Processors (Core™ i3-3240 / 3225 / 3220 / 2130 / 2125 / 2120; Core™ G860 / G850 / G640 / G630)
Intel® Celeron Processors Core™ G540 / G530 / G460
Chipset Intel® Q77 Express-Chipsatz
Memory 4x DDR3-RAM-Bänke, 1066 / 1333 / 1600 MHz, unbuffered non-ECC 1.5V; (Max 16GB); Dual-Channel unterstützt
Steckplätze 1x PCI-Express x16; 1x PCI-Express x16@x4 Mode
VGA prozessorabhängig
Audio Realtek ALC269Q High Definition Audio Codec
LAN Intel® 82579LM Gigabit Ethernet LAN solution 10/100/1000 Ethernet with Remote Wake Up, PXE and Intel Active Management Technology support
Anschlüsse Intern
2 x SATA III 6Gb/s Connectors
1 x SATA II 3Gb/s Connector
1 x Front USB Connector
1 x Intruder Connector
1 x Buzzer
1 x Power Switch Connector
1 x Internal Speaker Connector
1 x 5-Pin CPU FAN Connector
1 x 5-Pin SYSTEM FAN Connector
1 x PSWD Jumper
1 x RTCRST CMOS Jumper
1 x Front Panel Connector
1 x 24-pin Mainboard Power Connector
1 x 4-pin 12V CPU Power Connector
Anschlüsse Extern 1x PS/2 Keyboard; 1x PS/2 Mouse, 4 x USB2.0, 2 x USB3.0, 1 x LAN, 1 x VGA, 1 x Seriell (COM); 2 x DisplayPort, Audio Anschlüsse 2x 3,5 mm Klinke
Formfaktor Dell 7010 SFF
Lieferumfang
Nur das Dell Mainboard * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
