Fujitsu D3061-A13 GS1 Mainboard +Blende Sockel 1155 Intel Q65 Esprimo P700* m768

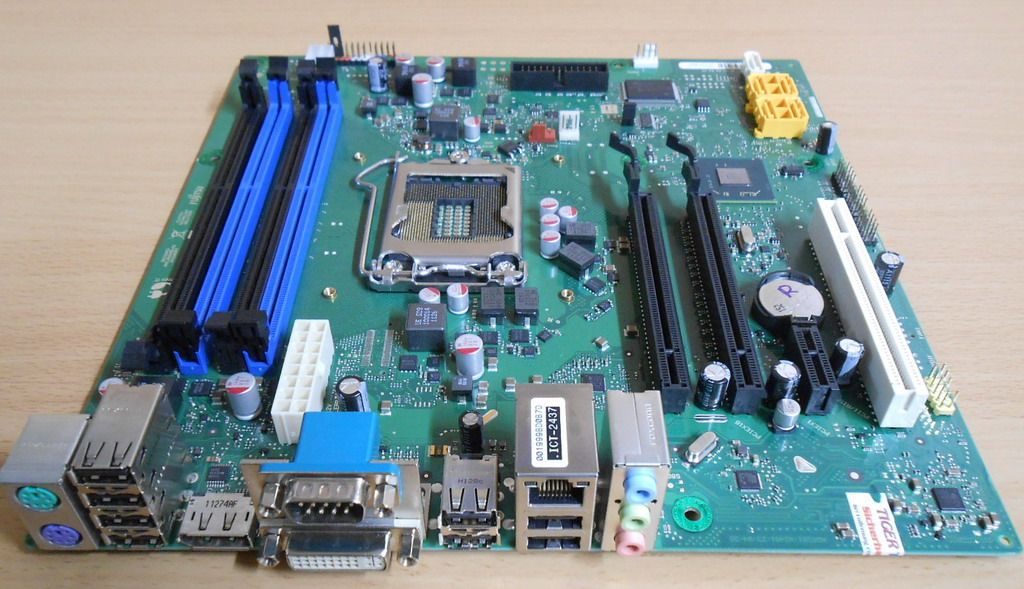

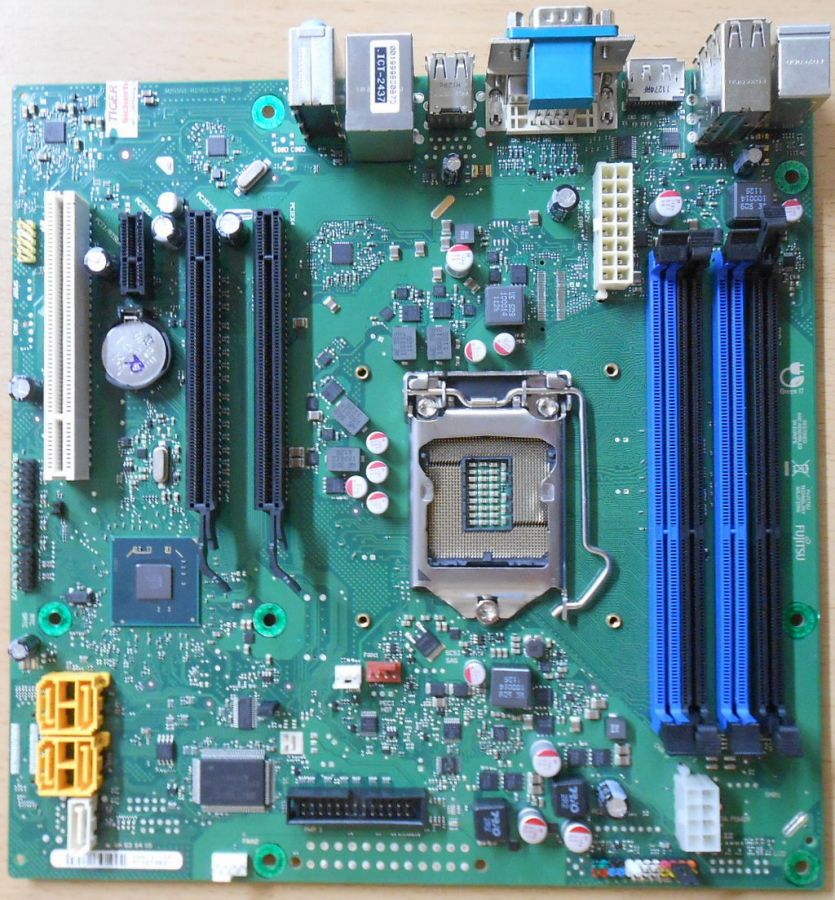

Fujitsu D3061-A13 GS1 Mainboard + Blende

Sockel 1155 Intel Q65 Esprimo P700

Technische Daten

Chipset

Intel® Q65

Memory

4 x DDR3 1066 / 1333 MHz ungepufferte DIMM Module 240-Pin; 1,5 V; 64 Bit ohne ECC

1, 2, 4 oder 8 GB pro Modul; Max. 32 GB DDR3

CPU support

CoreTM i7 series

i7-2600, i7-2600S; 1333/1066; HD Graphics 2000; vPro

i7-2600K, i7-2700K; 1333/1066; HD Graphics 3000

CoreTM i5 series

i5-2500, i5-2500T, i5-2500S; 1333/1066; HD Graphics 2000; vPro

i5-2500K; 1333/1066; HD Graphics 3000

i5-2405S; 1333/1066; HD Graphics 3000

i5-2400, i5-2400S; 1333/1066; HD Graphics 2000; vPro

i5-2390T; 1333/1066; HD Graphics 2000; vPro

i5-2300, i5-2310, i5-2320; 1333/1066; HD Graphics 2000 *

*No official support by Intel, but tested by Fujitsu

CoreTM i3 series

i3-21x5; 1333/1066; HD Graphics 3000

i3-21x0; 1333/1066; HD Graphics 2000

i3-21xxT; 1333/1066; HD Graphics 2000

Pentium® G series

G8xx; 1333/1066; HD Graphics

G860T; 1333/1066; HD Graphics

G6xx; 1066; HD Graphics

G6xxT; 1066; HD Graphics

Celeron® G series

G5xx; 1066; HD Graphics

G5xxT; 1066; HD Graphics

G4xx; 1066; HD Graphics

(For details on supported processors please refer to the Fujitsu website)

Graphics

Intel® HD Grafik oder HD Grafik 2000 (je nach CPU); aufrüstbar durch PCI Express x16 Grafikkarten

DVI & Displayport & VGA (only in conjunction with an adapter)

Unterstützung zweier Displays; DirectX 10.1; Unterstützung für HDCP; OpenGL® 2.1

Für Multi-Monitoring-Modus laufen Grafikkarte und integrierte Grafik parallel (nur Microsoft® Windows 7®)

Audio

LAN

Intel® 82579 V Gigabit Ethernet Controller with 10/100/1000 MBit/s, Wake-on-LAN (WoL); Remote Boot; iAMT

Features

FAN monitored PSU / CPU FAN(1) / System (FAN2)

FAN controlled PSU / CPU FAN(1) / System (FAN2)

TEMP monitored CPU / ONB1 / ONB2 / ONB3 / SIO / PCH

Fujitsu Technology Solutions Keyboard Power Button Support

External Connectors

1 x PS/2 Maus

1 x PS/2 Tastatur

1 x Seriell COM

1 x LAN (RJ-45)

1 x Displayport

1 x DVI

8 x USB2.0

Audio Mic. In / Line in / Line out (or driver configuration)

Internal Connectors

1 x PCI Express x16 Slot

1 x PCI Express x16 Slot @ x4

1 x PCI Express x1 Slot

1 x PCI Slot

4 x SATA-300 (gelb)

1 x SATA-600 (grau)

1 x Frontpanel Audio (9-Pin, HD Audio)

3 x USB2.0 connector for additional 6 ports

FAN1 & FAN2 Connectors

1 x Power 16 pin

1 x PAR connector

1 x System Panel connector

Board size       ATX

Special Features

Green Edition   Halogen-free and lead-reduced product

System Guard  View and adjust Silent Fan

Silent Drives  Noise reduction for optical and hard disk drives

Recovery BIOS Restores a corrupted BIOS

Desk Update  Simple driver update with DU CD or Internet

Multi Boot  Comfortable boot from any boot device

HDD Password Access protection for disk drives

Lieferumfang

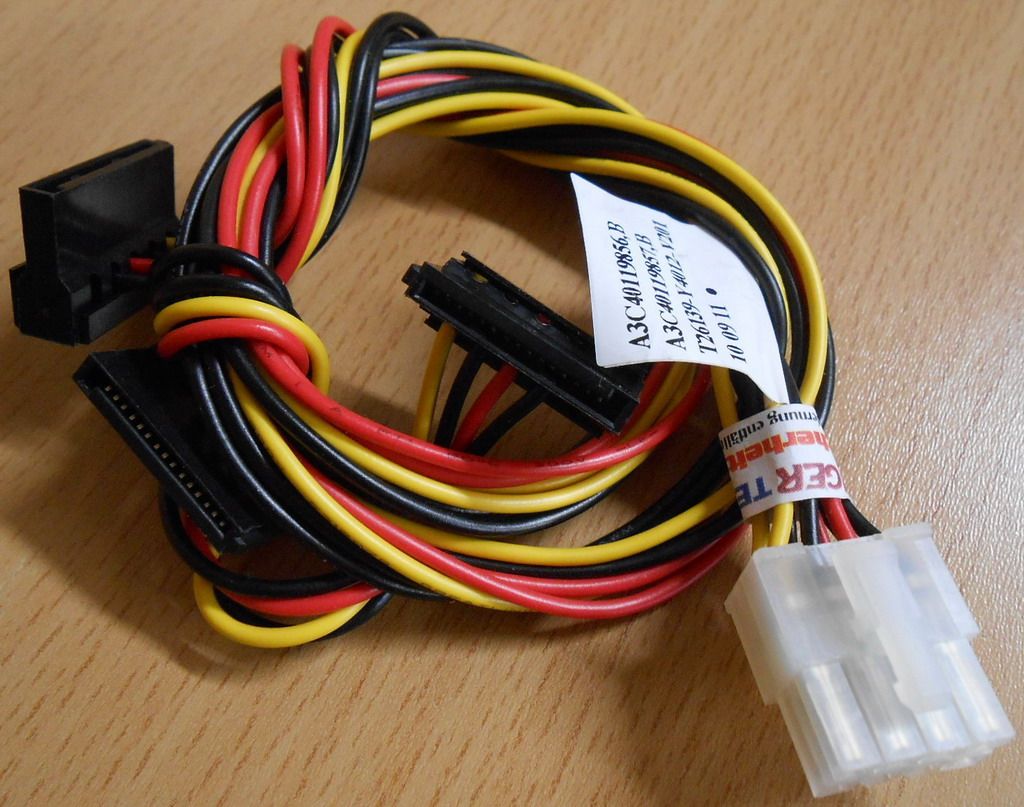

Das Mainboard und SATA Stromkabelsatz für 2x SATA Strom - ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
