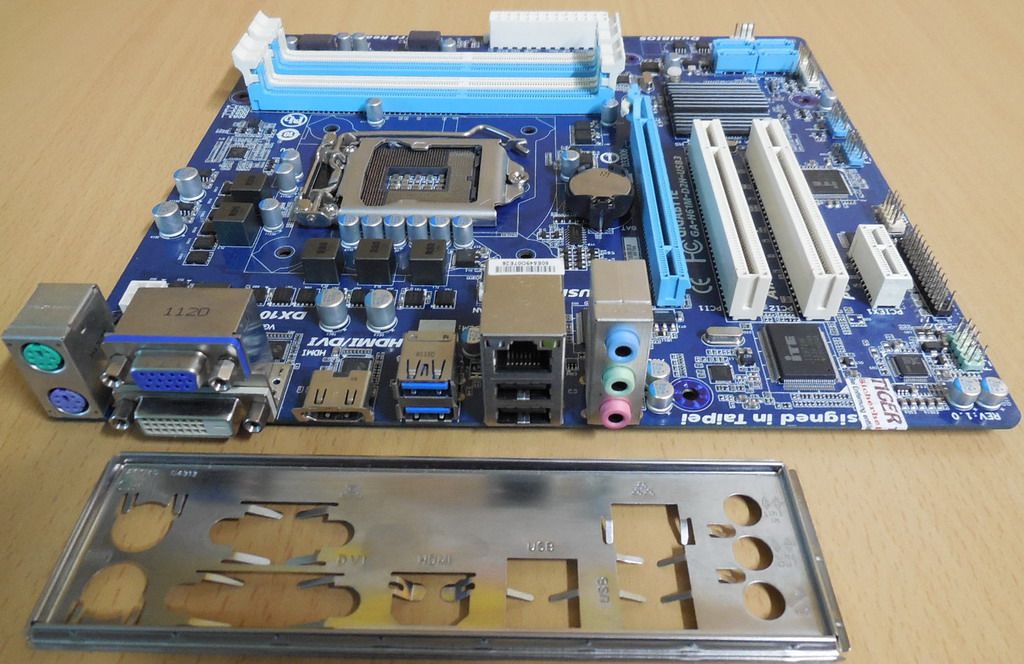

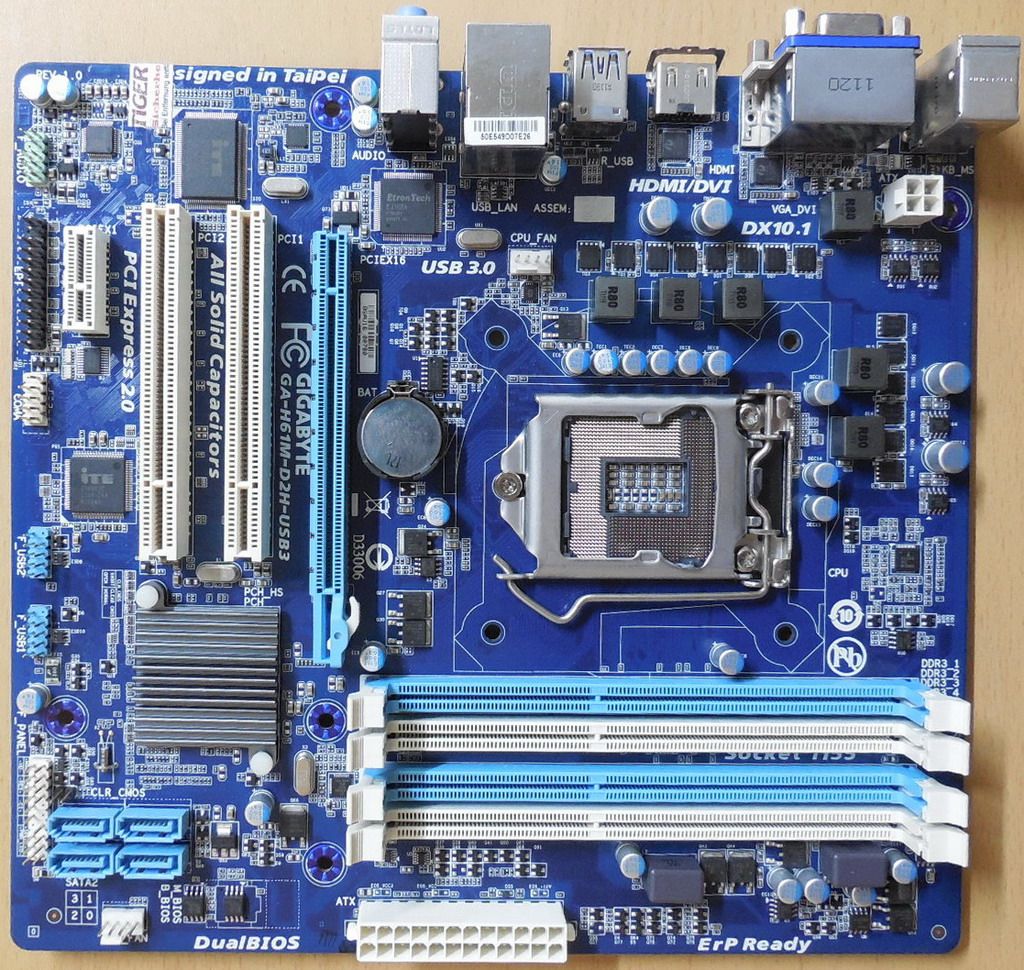

Gigabyte GA-H61M-D2H-USB3 Rev1.0 Mainboard +Blende Intel H61 Sockel 1155* m1079

Products description

Gigabyte GA-H61M-D2H-USB3 Rev1.0 Mainboard + Blende Intel H61 Sockel 1155 DDR3 USB3.0 PCIe 2.0 SATA II

Technische Daten

Prozessor

Support for Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors / Intel® Pentium® processors / Intel® Celeron® processors in the LGA1155 package

L3 cache varies with CPU

(Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information.)

Chipsatz

Intel® H61 Express Chipset

Arbeitsspeicher

4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB* of system memory

Dual channel memory architecture

Support for DDR3 1333/1066/800 MHz memory modules

Support for non-ECC memory modules

*Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB

* Due to Intel H61 chipset limitation, please use single-side memory modules when four memory modules are installed. Please refer "Manual" for more memory information

* Please refer "Memory Support List" for more information

Onboard Grafik

1 x D-Sub port

1 x DVI-D port, supporting a maximum resolution of 1920x1200 (The DVI-D port does not support D-Sub connection by adapter)

1 x HDMI port, supporting a maximum resolution of 1920x1200

Audio

Realtek ALC889 High Definition Audio codec

2/4/5.1/7.1*-channel

*To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver

LAN

1 x Atheros 8151 GbE LAN chip (10/100/1000 Mbit)

Erweiterungssteckplätze

1 x PCI Express x16 slot, running at x16

1 x PCI Express x1 slot

(All PCI Express slots conform to PCI Express 2.0 standard.)

2 x PCI slots

Storage Interface

4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices

USB

by Chipset Up to 6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

by Etron EJ168 chip Up to 2 USB 3.0/2.0 ports on the back panel

Interne I/O Anschlüsse

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

4 x SATA 3Gb/s connectors

1 x 4-pin CPU fan header

1 x 4-pin system fan header

1 x front panel header

1 x front panel audio header

2 x USB 2.0/1.1 headers

1 x parallel port header

1 x serial port header

1 x clearing CMOS jumper

Rückseite I/O Panel

1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x D-Sub port

1 x DVI-D port

1 x HDMI port

2 x USB 2.0/1.1 ports

2 x USB 3.0/2.0 ports

1 x RJ-45 port

3 x audio jacks (Line In/Line Out/Microphone)

I/O

iTE IT8728 chip

H/W Überwachung

System voltage detection

CPU/System temperature detection

CPU/System fan speed detection

CPU/system fan speed control (Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.)

BIOS

2 x 32 Mbit flash

Use of licensed AWARD BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Einzigartige Funktionen

Support for @BIOS; Q-Flash; Xpress BIOS Rescue; Download Center; Xpress Install; Xpress Recovery2; EasyTune (Available functions in EasyTune may differ by motherboard model); Smart 6™; Auto Green; ON/OFF Charge; Cloud OC; 3TB+ Unlock; TouchBIOS; Q-Share
