Products description

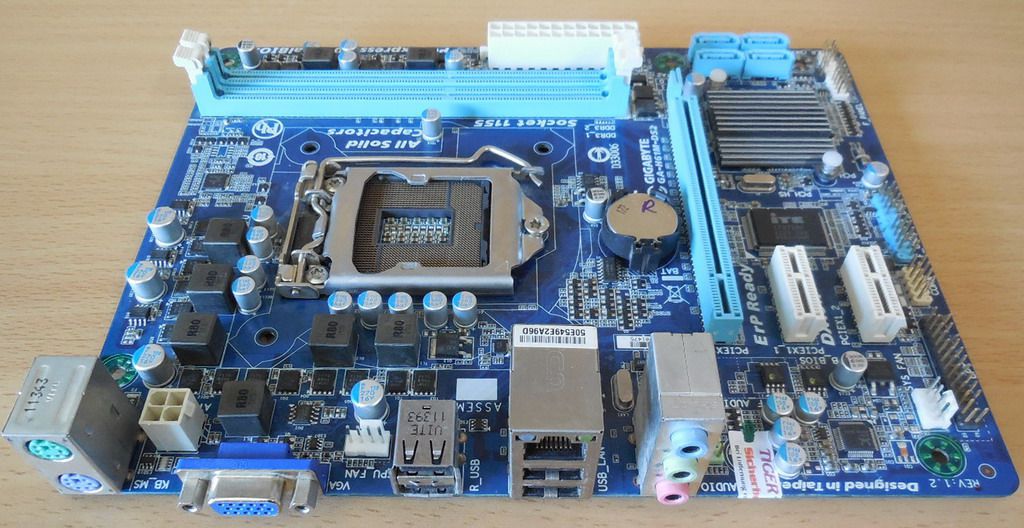

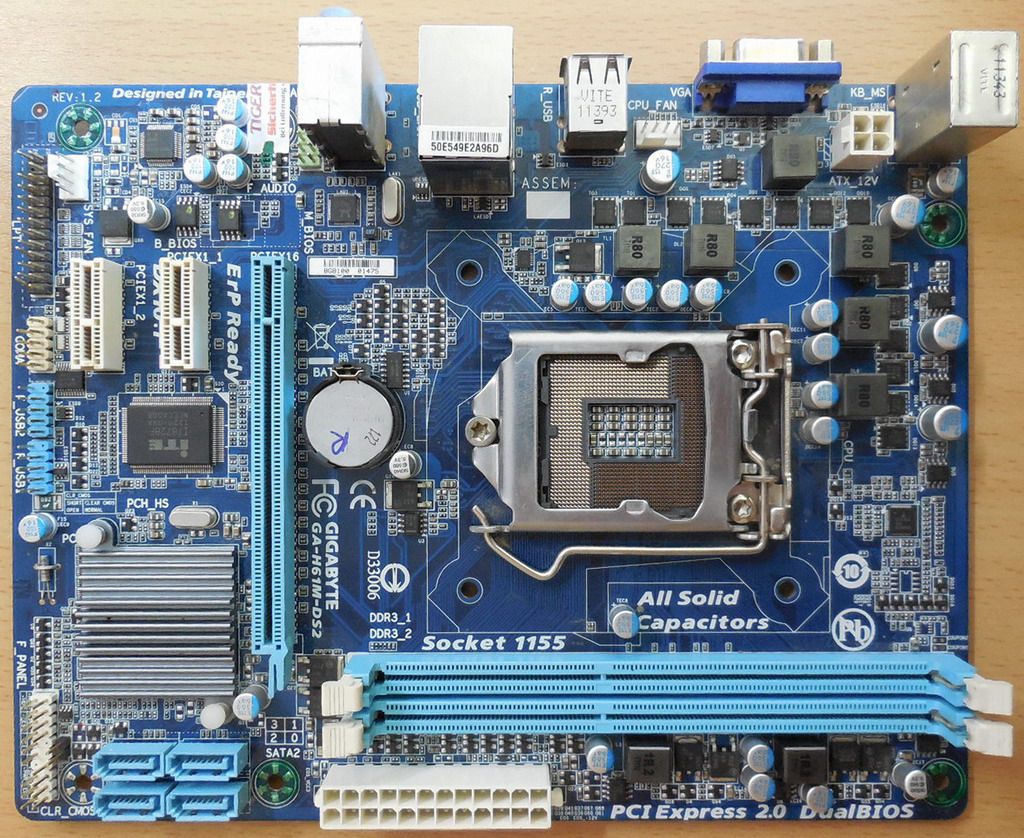

Gigabyte GA-H61M-DS2 Rev 1.2 Mainboard Intel H61 Sockel 1155 DDR3 PCIe SATA
Technische Daten
Prozessor
Support for Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors / Intel® Pentium® processors / Intel® Celeron® processors in the LGA1155 package
L3 cache varies with CPU
(Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information.)
Chipsatz
Intel® H61 Express Chipset
Arbeitsspeicher
2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
Dual channel memory architecture
Support for DDR3 1333/1066/800 MHz memory modules
Support for non-ECC memory modules
(Please refer "Memory Support List" for more information.)
* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
Onboard Grafik
1 x D-Sub port
Audio
Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN
1 x Realtek RTL8111E chip (10/100/1000 Mbit)
Erweiterungssteckplätze
1 x PCI Express x16 slot, running at x16 (PCIEX16 conforms to PCI Express 3.0 standard. )
* PCIE Gen.3 is dependent on CPU and expansion card compatibility.
2 x PCI Express x1 slot (Slots conform to PCI Express 2.0 standard.)
Storage Interface
4 x SATA 3Gb/s connectors (SATA2 0/1/2/3) supporting up to 4 SATA 3Gb/s devices
USB
Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)
Interne I/O Anschlüsse
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
2 x USB 2.0/1.1 headers
1 x parallel port header
1 x serial port header
1 x clearing CMOS jumper
Rückseite I/O Panel
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In/Line Out/Microphone)
I/O
iTE IT8728 chip
H/W Überwachung
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System fan speed control
*Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
BIOS
2 x 32 Mbit flash
Use of licensed Award BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Einzigartige Funktionen
Support for @BIOS; Support for Q-Flash; Support for Xpress BIOS Rescue; Support for Download Center; Support for Xpress Install; Support for Xpress Recovery2; Support for EasyTune (* Available functions in EasyTune may differ by motherboard model.); Support for Smart 6™; Support for Auto Green; Support for ON/OFF Charge; Support for Cloud OC; Support for 3TB+ Unlock; Support for TouchBIOS; Support for Q-Share
Betriebssystem
Support for Microsoft® Windows® 8/7/Vista/XP
Form Factor
Micro ATX Form Factor; 22.6cm x 17.4cm
Lieferumfang
Nur das Mainboard * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
