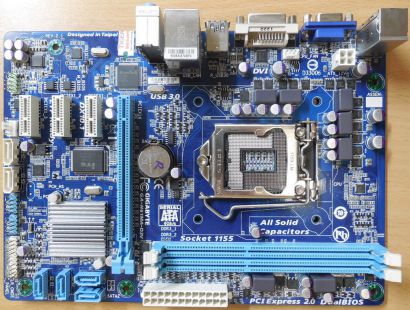

Gigabyte GA-H61MA-D3V Rev2.1 Mainboard +Blende Intel H61 Sockel 1155 DDR3
Technische Daten
Prozessor
Support for Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors / Intel® Pentium® processors / Intel® Celeron® processors in the LGA1155 package
L3 cache varies with CPU
(Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information.)
Chipsatz
Intel® H61 Express Chipset
Arbeitsspeicher
2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
Dual channel memory architecture
Support for DDR3 2200(OC)/1333/1066/800 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules
* To support XMP memory, you must install an Intel 22nm (
(Please refer "Memory Support List" for more information.)
* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
Onboard Grafik
1 x D-Sub port
1 x DVI-D port, supporting a maximum resolution of 1920x1200
* The DVI-D port does not support D-Sub connection by adapter.
Audio
Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN
1 x Realtek RTL8111E/RTL8111F chip (10/100/1000 Mbit)
Erweiterungssteckplätze
1 x PCI Express x16 slot, running at x16 (PCIEX16 conforms to PCI Express 3.0 standard. )
* PCIE Gen.3 is dependent on CPU and expansion card compatibility.
3 x PCI Express x1 slot (Slots conform to PCI Express 2.0 standard.)
Storage Interface
Chipset
4 x SATA 3Gb/s connectors (SATA2 0/1/2/3) supporting up to 4 SATA 3Gb/s devices
Marvell 88SE9172 chip
2 x SATA 6Gb/s connectors (GSATA3 0/1) supporting up to 2 SATA 6Gb/s devices
Support for RAID 0 and RAID 1
USB
Chipset
Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)
Etron EJ168 chip
Up to 2 USB 3.0/2.0 ports on the back panel
Interne I/O Anschlüsse
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
2 x SATA 6Gb/s connectors
4 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
2 x USB 2.0/1.1 headers
1 x clearing CMOS jumper
Rückseite I/O Panel
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
4 x USB 2.0/1.1 ports
2 x USB 3.0/2.0 ports
1 x RJ-45 port
3 x audio jacks (Line In/Line Out/Microphone)
I/O
iTE IT8728F chip
H/W Überwachung
System voltage detection
CPU/System temperature detection
CPU/System/Power fan speed detection
CPU overheating warning
CPU/System/Power fan fail warning
CPU/System fan speed control
*Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
BIOS
2 x 32 Mbit flash
Use of licensed AMI EFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
Einzigartige Funktionen
Support for @BIOS; Support for Q-Flash; Support for Xpress Recovery2; Support for EasyTune (* Available functions in EasyTune may differ by motherboard model.); Support for ON/OFF Charge
Betriebssystem
Support for Microsoft® Windows® 8/7/Vista/XP
Form Factor
Micro ATX Form Factor; 24.4cm x 17.4cm
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
