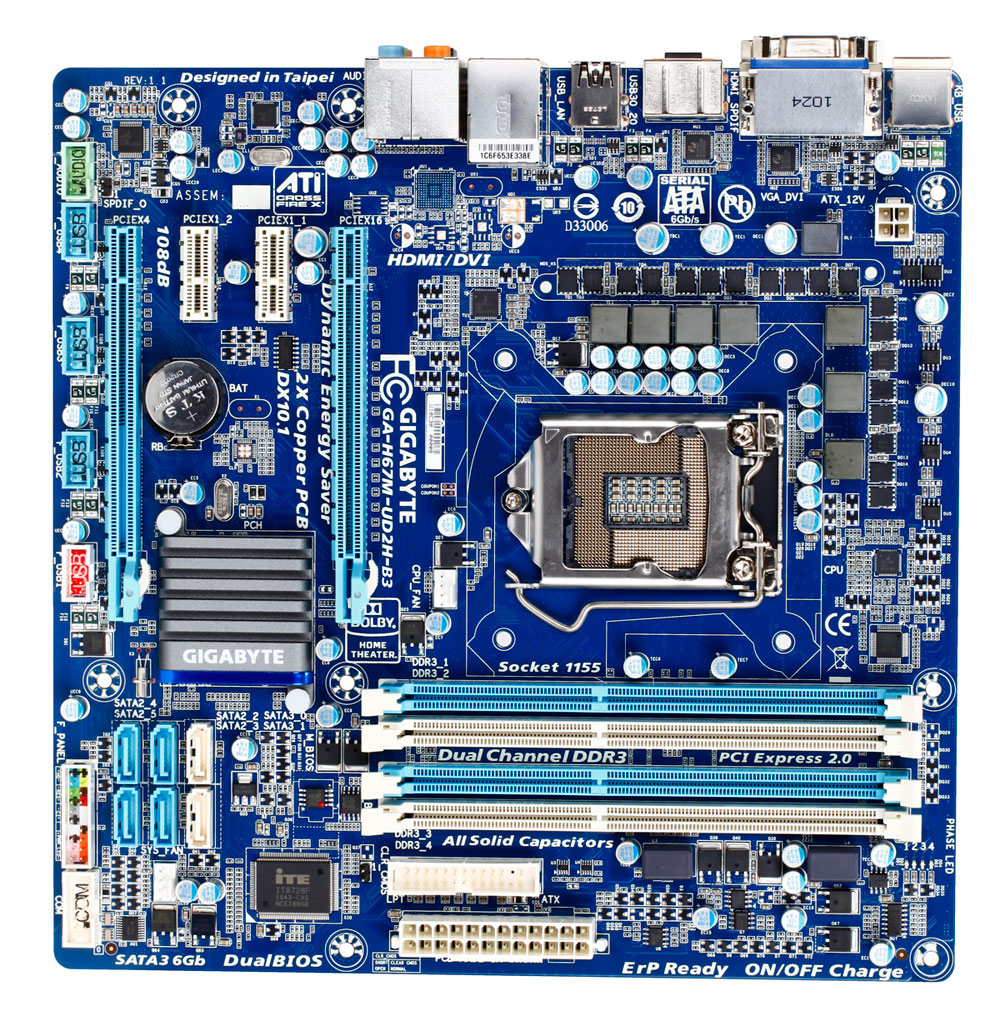

Gigabyte GA-H67M-UD2H-B3 Intel® Core i7, i5, i3 DDR3- 32GB LGA1155* m155

Gigabyte GA-H67M-UD2H-B3 Intel® Core™ i7, i5, i3

DDR3,1333 MHz up to 32 GB LGA1155 + Blende

Specification

Prozessor

    Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel®       Pentium® processors/Intel® Celeron® processors in the LGA1155 package  L3 cache varies with CPU

    (Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information.)

Chipsatz     Intel® H67 Express Chipset

Arbeitsspeicher

    4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory

    Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.

    Dual channel memory architecture

    Support for DDR3 1333/1066/800 MHz memory modules

    Support for non-ECC memory modules

    (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

Onboard Grafik   Integrated Graphics Processor:

    1 x D-Sub port

    1 x DVI-D port, supporting a maximum resolution of 1920x1200

    The DVI-D port does not support D-Sub connection by adapter.

    1 x HDMI port, supporting a maximum resolution of 1920x1200

Audio

    Realtek ALC889 codec

    High Definition Audio

    2/4/5.1/7.1-channel

    Support for Dolby® Home Theater

    Support for S/PDIF Out

LAN     1 x Realtek RTL8111E Chip (10/100/1000 Mbit)

Erweiterungssteckplätze

    1 x PCI Express x16 slot, running at x16 (PCIEX16)

    For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    1 x PCI Express x16 slot, running at x4 (PCIEX4)

    2 x PCI Express x1 slots

    (All PCI Express slots conform to PCI Express 2.0 standard.)

Multi-Graphics Technology

    Support for ATI CrossFireX™ technology

    The PCIEX16 slot operates at up to x4 mode when ATI CrossFireX™ is enabled.

Storage Interface  Chipset:

    2 x SATA 6Gb/s connectors (SATA3_0, SATA3_1) supporting up to 2 SATA 6Gb/s devices

    4 x SATA 3Gb/s connectors (SATA2_2~SATA2_5) supporting up to 4 SATA 3Gb/s devices

    Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10

    * When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.

USB    Chipset:

    Up to 14 USB 2.0/1.1 ports (6 on the back panel, 8 via the USB brackets connected to the internal USB headers)

Interne I/O Anschlüsse

    1 x 24-pin ATX main power connector

    1 x 4-pin ATX 12V power connector

    2 x SATA 6Gb/s connectors

    4 x SATA 3Gb/s connectors

    1 x CPU fan header

    1 x system fan header

    1 x front panel header

    1 x front panel audio header

    1 x S/PDIF Out header

    4 x USB 2.0/1.1 headers

    1 x parallel port header

    1 x serial port header

    1 x clearing CMOS jumper

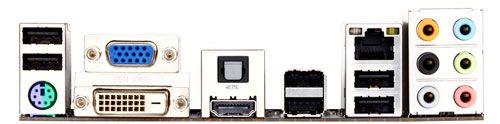

Rückseite I/O Panel

    1 x PS/2 keyboard/mouse port

    1 x D-Sub port

    1 x DVI-D port

    1 x optical S/PDIF Out connector

    1 x HDMI port

    6 x USB 2.0/1.1 ports

    1 x RJ-45 port

    6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)

I/O     iTE IT8728 Chip

H/W Überwachung

    System voltage detection

    CPU/System temperature detection

    CPU/System/Power fan speed detection

    CPU overheating warning

    CPU/System/Power fan fail warning

    CPU/System fan speed control

    *Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.

BIOS

    2 x 32 Mbit flash

    Use of licensed AWARD BIOS

    Support for DualBIOS™

    PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Einzigartige Funktionen

    Support for @BIOS

    Support for Q-Flash

    Support for Xpress BIOS Rescue

    Support for Download Center

    Support for Xpress Install

    Support for Xpress Recovery2

    Support for EasyTune

 Available functions in EasyTune may differ by motherboard model.

    Support for Dynamic Energy Saver™ 2

    Support for Smart 6™

    Support for Auto Green

    Support for eXtreme Hard Drive (X.H.D)

    Support for ON/OFF Charge

    Support for Cloud OC

    Support for Q-Share

Softwarebeigaben     Norton Internet Security (OEM version)

Betriebssystem     Support for Microsoft® Windows® 8/7/Vista/XP

Form Factor    Micro ATX Form Factor; 24.4cm x 24.4cm

Support Intel 22nm processors

GIGABYTE motherboards support Intel 22nm processors.



Designed for PCI Express Gen.3 Support

The GIGABYTE motherboard is fully configured to provide gamers with the latest Gen.3 PCI Express technology, delivering maximum data bandwidth for forthcoming discrete graphics cards.
* PCIe Gen. 3 is dependent on CPU and expansion card compatibility.



New 100% Hardware VRD 12 Compliant CPU Power Design

GIGABYTE 6 series motherboards incorporate an Intel^® approved Intersil PWM controller that is VRD 12 (Voltage Regulator Down) compliant. This means that it offers new features that include SerialVID (SVID) which transfers power management information between the processor and voltage regulator controller, allowing more robust and efficient signaling control between the CPU and PWM controller – hence, delivering a more energy efficient platform.



108dB Signal-to-Noise ratio playback

GIGABYTE strongly believes that in 2011, HD audio playback is a standard specification, and as such, we have made Blu-ray audio playback a standard for all of our motherboards.
All of GIGABYTE's 2011 motherboards feature higher capability audio solution with 108dB Signal-to-Noise ratio (SNR) playback quality to deliver high-performance, multi-channel HD audio. SNR is a comparison of the amount of signal to the amount of noise such as hiss present in the signal (expressed in Decibels). A higher SNR equals a better audio experience. For example, 108dB, is a high audio specification, as this means the audio signal is 108dB higher than the level of the noise.



DualBIOS™ 3TB+ HDD Support (Hybrid EFI Technology)

Hybrid EFI Technology combines the benefits of GIGABYTE's mature BIOS platform including stability and compatibility with 3rd party products with 3TB+ HDD support from EFI technology, allowing GIGABYTE to offer the best of both worlds through a quick and easy BIOS update using GIGABYTE's @BIOS utility that is freely available from the GIGABYTE website.
GIGABYTE DualBIOS™ is a patented technology that automatically recovers BIOS data when the main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS™ allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating. In addition, GIGABYTE DualBIOS™ now supports 3TB+ (terabyte) hard drive booting without the need for partitioning, and enables more data storage on a single hard drive.



Ultra Durable 3

The GIGABYTE Ultra Durable™ 3 design features twice the copper for both the power and ground layers of the PCB, dramatically lowering system temperature by efficiently spreading heat from critical areas of the motherboard (such as the CPU power zone) throughout the entire PCB. GIGABYTE's Ultra Durable™ 3 also lowers the PCB impedance by 50%, which helps to reduce electrical waste and further lowers component temperatures. A 2x Copper layer design also provides improved signal quality and lower EMI (Electromagnetic Interference), providing better system stability and allowing for greater margins for overclocking...more



On/Off Charge Technology

GIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger...more
*Due to certain mobile phone limitations, users may need to connect the mobile phone to their PC before the PC enters S4/S5 mode to enable a quick charge from non On/Off Charge USB ports. Charging results may vary by model.
*Whether to support 3X USB power design, it may vary by models.



SATA 6 Gbps

GIGABYTE motherboards are High-Speed SATA Revision 3.0 compatible, delivering superfast 6Gbps link speeds for twice the data transfer rates of SATA Revision 2.0 (3 Gbps). When used in RAID 0 (Stripe) mode, they offer even faster data transfer rates of up to a theoretical 4x the speed of current SATA interfaces.



3x USB Power Boost

GIGABYTE motherboards feature a 3x USB power boost, delivering greater compatibility and extra power for USB devices. GIGABYTE’s unique USB power design is also able to efficiently regulate output over the full voltage range, which greatly enhances USB device compatibility. In addition, dedicated lower resistance fuses ensure lower voltage drops, and provide more stable and plentiful power delivery.



Turbo XHD- Full Automatic RAID 0

GIGABYTE Turbo XHD provides a quick and easy way to boost your hard drive performance by automatically detecting 2 new SATA3 HDDs and enabling users to effortlessly set up a RAID 0 configuration via an easy to use utility. RAID 0 boosts HDD performance by up to 4X.
Turbo XHD function only enabled for the SATA controllers integrated in the Intel Z68/P67/H67 Chipset.



Dynamic Energy Saver™ 2

GIGABYTE Dynamic Energy Saver™ 2 incorporates a host of intelligent features that, at the click of a button, utilize a proprietary hardware and software design to considerably enhance PC system energy efficiency, reduce power consumption and deliver optimized auto-phase-switching for the CPU, Memory, Chipset, VGA, HDD, and fans.



HDMI™-The Next Generation Multimedia Interface

HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.



DVI Support

DVI (Digital Visual Interface) is a video interface standard designed for carrying uncompressed digital video data and to maximize the visual quality of digital display devices, such as LCD monitors, digital projectors, and so on. In addition, the DVI interface is compatible with HDCP (High-bandwidth Digital Content Protection).



Multi-display support with ATI CrossFireX™

ATI^® CrossFireX™ delivers the ultimate graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.



Smart 6 – Smarter PC system Management

	Smart QuickBoot Speeds up booting times.		Smart DualBIOS Smart personal reminder of PC passwords.
	Smart QuickBoost* One-click Overclocking		Smart Recorder Your PC's Watch Dog
	Smart Recovery 2 Allows you to go back in time on your PC and retrieve lost files		Smart TimeLock Time Controller for your PC.

* Whether SMART QuickBoost is supported depends on the motherboard model.



Cloud OC

GIGABYTE Cloud OC is a free overclocking application that facilitates PC overclocking through any web browsing capable device such as a smart phone, iPad, iPhone, Netbooks or notebook PC. Being browser based, it connects via wireless Internet, Bluetooth or through an Ethernet cable, and its many functions are categorized into three tabs: Tuner, System Info and Control...more



AutoGreen- Greening your PC via Bluetooth cellphone

AutoGreen technology can automatically save power by simply putting your PC in a state of sleep when your Bluetooth^® cell phone is out of range of your computer.
Note: GIGABYTE motherboards do not include a Bluetooth^® receiver; the addition of a 3rd party Bluetooth receiver is required.



Dolby Home Theater^® - Enjoy a Rich Home Theater Surround Sound Experience

Dolby Home Theater^® places listeners in the middle of the action, giving their PCs a powerful set of tools to deliver a cinema-style experience in vivid surround sound.

• Delivers vivid surround sound for music, movies, and games, using two to eight speakers or any set of headphones
• Designed to automatically deliver the best possible listening experience

ErP Lot 6 support

Lieferumfang

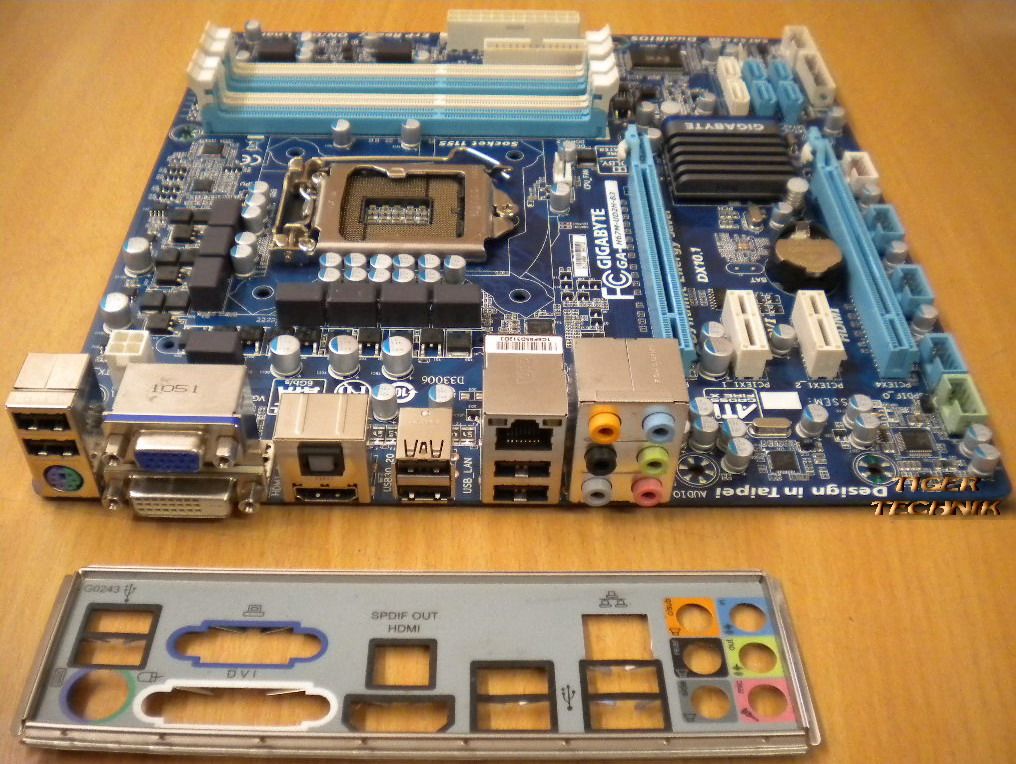

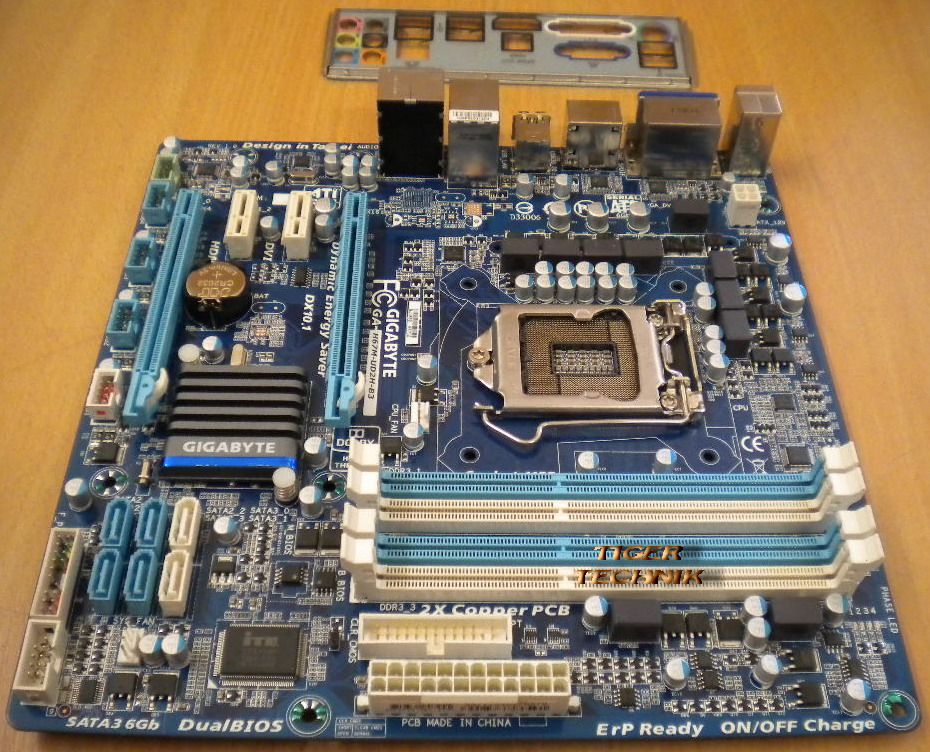

Gigabyte GA-H67M-UD2H-B3 + Blende  - ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
