Products description

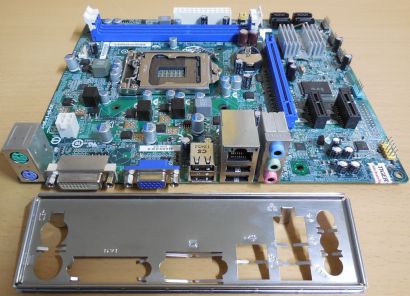

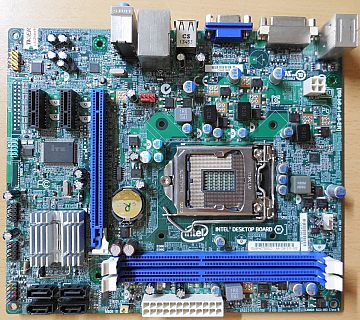

Intel DH61BF Mainboard + Blende Intel H61 Sockel 1155 DDR3 PCIe VGA DVI
Technische Daten
Hersteller Intel
Model DH61BF
CPU-Unterstützung
2nd/3rd Generation Intel® Core processor family processors with up to 95 W TDP in an LGA1155 socket
PCI Express* 3.0 x16 graphics interface
Integrated graphics processing (processors with Intel Technology)
External graphics interface controller
Integrated memory controller with dual channel DDR3 memory support
Sockel Socket LGA1155
Chipsatz Intel® H61 Express Chipset
RAM 2 x 240-pin DIMM Sockets DDR3, max. 16GB, Dual Channel, 1333MHz / 1066MHz, UDIMM, non-ECC.
(For details on recommended RAM, please refer to the Intel website)
VGA Intel® HD Graphics (depends on installed CPU) controller, upgradeable with PCI Express x16 3.0 graphics card
LAN Realtek RTL8111E 10/100/1000 MBit/s GbE Controller
Audio Intel High Definition Audio - Realtek ALC662VC Audio Codec
Erweiterungssteckplätze 1x PCI-E x16 (3.0/2.0); 2x PCI-E x1 (2.0)
Intern Echtzeituhr/Kalender mit Batteriepufferung
4 x SATA3 Ports bis zu 6GBit/s
1 x 4-pin CPU FAN Connector
1 x 4-pin Rear FAN Connector
1 x Front Audio Panel Connector
1 x COM1 Connector
1 x BIOS setup configuration jumper block
2 x USB2.0-Anschluss Connectoren für insgesamt 4 weitere USB2.0 Ports z.B. via Blende
1 x Front Panel Connector
1 x 24-pin ATX Mainboard Power Connector
1 x 4-pin CPU Power Connector
Externe Anschlüsse 1 x DVI-D; 1 x VGA; 1 x PS/2 Maus, 1 x PS/2 Tastatur, 1 x (RJ-45) LAN, 4 x USB2.0, 1 x Line-In, 1 x Line-Out, 1 x Mic
Hardware Monitoring
Hardware monitoring through the ITE Super I/O controller; Voltage sense to detect out of range power supply voltages; Thermal sense to detect out of range thermal values; Two fan headers; Two fan sense inputs used to monitor fan activity; Fan speed control
Instantly Available PC Technology Support for PCI Express; Suspend to RAM; Wake on PCI Express, LAN, front panel, serial, PS/2, and USB ports
BIOS Intel BIOS resident in the SPI Flash device; Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and SMBIOS
Legacy I/O Control ITE 8728F Super I/O controller for hardware management and serial port and PS/2 support
Formfaktor MicroATX 8.85" x 7.45"; ca. 225 mm x 190 mm
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
