Products description

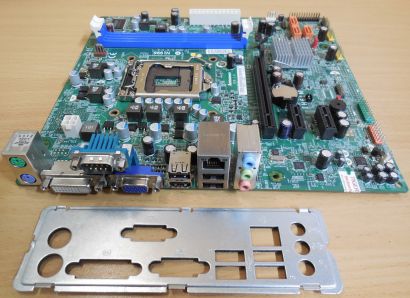

Lenovo M71e 03T6014 IH61M Ver 1.0 MS-7687 Mainboard + Blende Sockel 1155 DDR3
Technische Daten
CPU
Intel® Core i3-2100 Prozessor (3 MB Cache, 3,10 GHz); Intel® Core i3-2100T Prozessor (3 MB Cache, 2,5 GHz); Intel® Core i3-2120 Prozessor (3 MB Cache, 3,30 GHz); Intel® Core i5-2300 Prozessor (6 MB Cache, 2,8 GHz); Intel® Core i5-2390T Prozessor (3 MB Cache, 2,7 GHz); Intel® Core i5-2400 Prozessor (6 MB Cache, 3,10 GHz); Intel® Core i5-2400S Prozessor (6 MB Cache, 2,50 GHz); Intel® Core i5-2500 Prozessor (6 MB Cache, 3,30 GHz); Intel® Core i5-2500S Prozessor (6 MB Cache, 2,70 GHz); Intel® Core i5-2500T Prozessor (6 MB Cache, 2.30 GHz); Intel® Core i7-2600 Prozessor (8 MB Cache, 3,40 GHz); Intel® Core i7-2600S Prozessor (8 MB Cache, 2.80 GHz)
3 MB bis 8 MB Cache, prozessorabhängig
Chipset
Intel H61 Express Chipsatz
Main Memory
2 x DIMM slots, PC3-10600 1333MHz DDR3; Supports 8GB memory max.
Slots
1 x PCI Express x16
2 x PCI Express x1
On-Board SATA
3 x SATA3 (6Gb/sec Transferrate)
Video
Integrated Graphics Adapter (Intel HD Graphics 2000)
Audio
Integrated ALC662 Audio chipset
LAN
Realtek 8111E PCIe Gigabit Ethernet Controller
10Mbps, 100Mbps, 1000Mbps Data Rates Supported
RJ45 External Connector Type
Power management
Advanced Configuration and Power Interface (ACPI) support
Internal I/O Connectors
ATX 24-Pin power connector
4-pin ATX 12V power connector
CPU / Power / System fan connectors
Clear CMOS jumper
Serial port connector (COM2)
Parallel port connector (LPT)
2 x USB 2.0 connector support additional 4 ports
Front panel audio connector
Mono Out connector
Front panel connector
3 x Serial ATA device connector
Ther_HD connector
SPI-Debug1 connector
LPC_Debug connector
Buzzer
Back Panel I/O Ports
1 x COM Serial RS-232
1 x VGA (Sub-D)
1 x DVI
1 x Audio I/O (3 in 1)
4 x USB 2.0
1 x RJ45 LAN jack
1 x PS/2 keyboard
1 x PS/2 mouse
All systems conforms to the following industry standards:
ACPI v3.0, DMI v2.0, IEEE 802.3, JEDEC 240-pin DIMM memory, SmBios v2.6, PCI v2.3, PCIe v1.0, Serial ATA II/III, PXE v2.1, USB v2.0, AMT7.1
Dimension
Tower (3x4)
Lieferumfang
Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
