Products description

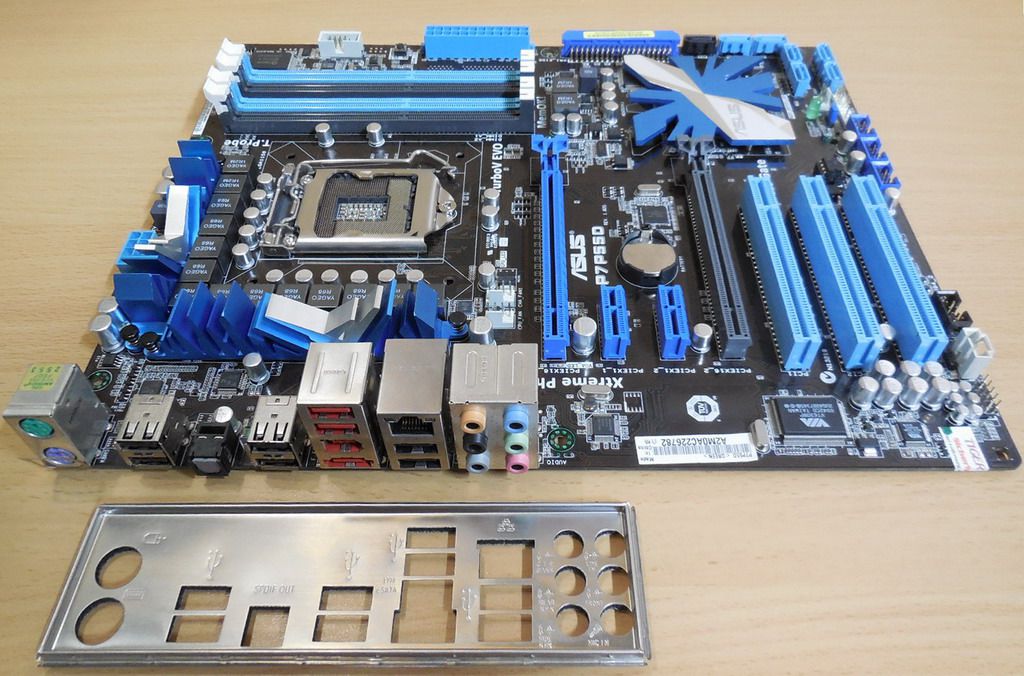

Asus P7P55D Rev 1.02G Mainboard + Blende Intel P55 Sockel 1156 DDR3 PCIe GBLAN SATA2
Technische Daten
CPU
Intel Socket 1156 Core™ i7 Processor / Core™ i5 Processor
Supports Intel® Turbo Boost Technology
Chipsatz
Intel P55 Express Chipset
Memory
4 x DIMM, 16 GB, DDR3 1600/2133(O.C.)*/1333/1066 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
*Hyper DIMM support is subject to the physical characteristics of individual CPUs. Some hyper DIMMs only support one DIMM per channel. Please refer to Memory QVL for details. Refer to the Asus Website or the user manual for the Memory QVL(Qualified Vendors Lists).
Expansion Slots
1 x PCIe 2.0 x16 (single at x16)
1 x PCI Express 2.0 x16 slots (@x4 mode, 2.5GT/s)
2 x PCI Express 2.0 x1 (2.5GT/s)
3 x PCI
Multi-GPU Support
Supports ATI® Quad-GPU CrossFireX™ Technology
Storage
by Intel® P55 Express Chipset built-in
6 x SATA 3.0 Gb/s ports
0,1,5,10 Intel Matrix Storage Technology Support RAID
by JMicron® JMB363 PATA and SATA controller
UltraDMA 133/100/66 for up to 2 PATA devices
1 x SATA 3Gb/s port (black)
1 x External SATA 3Gb/s port (SATA on-the-go)
LAN
Realtek® 8112L Gigabit LAN controller featuring AI NET2
Audio
VIA® VT1828S 8-Channel High Definition Audio CODEC
- Absolute Pitch BD192/24
- DTS Surround Sensation UltraPC
- BD audio layer Content Protection
- Supports Jack-Detection, Multi-streaming, Front Panel Jack-Retasking
- Optical S/PDIF out ports at back I/O
IEEE 1394
2 x VIA® 6308P controller supports x 1394a ports (one at mid-board; one at back panel)
USB
14 x USB 2.0 ports (6 ports at mid-board, 8 ports at back panel)
ASUS AI Lifestyle Features
ASUS Hybrid Processor - TurboV EVO: Auto Tuning, TurboV and Turbo Key
ASUS 16 Hybrid Phase*: T.Probe Technology for Active Cooling; 12+2 Phase Power Design; 100% Ultra Long Life Japan-Made Solid Capacitors; *16 Hybrid Phase = 12+2 Phase x T.Probe
ASUS Hybrid OS - Express Gate
ASUS Xtreme Design
ASUS Exclusive Features: MemOK!; ASUS EPU
ASUS Quiet Thermal Solution: ASUS Fanless Design: Stylish Heat-sink solution; ASUS Fanless Design: Stack Cool 3; ASUS Fan Xpert
ASUS Crystal Sound: ASUS Noise Filter
ASUS EZ DIY: ASUS Q-Shield; ASUS Q-Connector; ASUS O.C. Profile; ASUS CrashFree BIOS 3; ASUS EZ Flash 2; ASUS MyLogo 2; Multi-language BIOS
ASUS Q-Design: ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED); ASUS Q-Slot; ASUS Q-DIMM
Overclocking Features
Precision Tweaker - vCore: Adjustable CPU voltage at 0.0125V increment 0.00625V - vIMC: 97-step IMC voltage control; vDRAM Bus: 81-step DRAM voltage control; vPCH: 2-step chipset voltage control; vCPU_PLL: 4-step reference voltage control
SFS (Stepless Frequency Selection): Internal Base Clock tuning from 80MHz up to 500MHz at 1MHz increment; PCI Express frequency tuning from 100MHz 200MHz at 1MHz
Overclocking Protection: ASUS C.P.R.(CPU Parameter Recall)
Back Panel I/O Ports
1 x PS/2 Keyboard (Purple)
1 x PS/2 mouse port (Green)
1 x Optical S/PDIF Output
1 x External SATA
1 x IEEE1394a
1 x RJ45 port
8 x USB 2.0/1.1
8-channel Audio I/O
Internal I/O Connectors
3 x USB connectors support additional 6 USB ports
1 x CPU Fan connector
1 x Power Fan connector
2 x Chassis Fan connector (1x4-pin, 1x3-pin)
1 x Front panel audio connector
1 x S/PDIF Out Header
1 x CD audio in
1 x 24-pin ATX Power connector
1 x 8-pin ATX 12V Power connector
1 x System Panel(Q-Connector)
1 x MemOK! button
1 x COM port connector
1 x IDE connector
7 x SATA connectors
1 x IEEE 1394a connector
BIOS
16 Mb Flash ROM , AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
Manageability
WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,WOR by PME
Form Factor
ATX Form Factor; 12 inch x 9.6 inch 30.5 cm x 24.4 cm )
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
