Products description

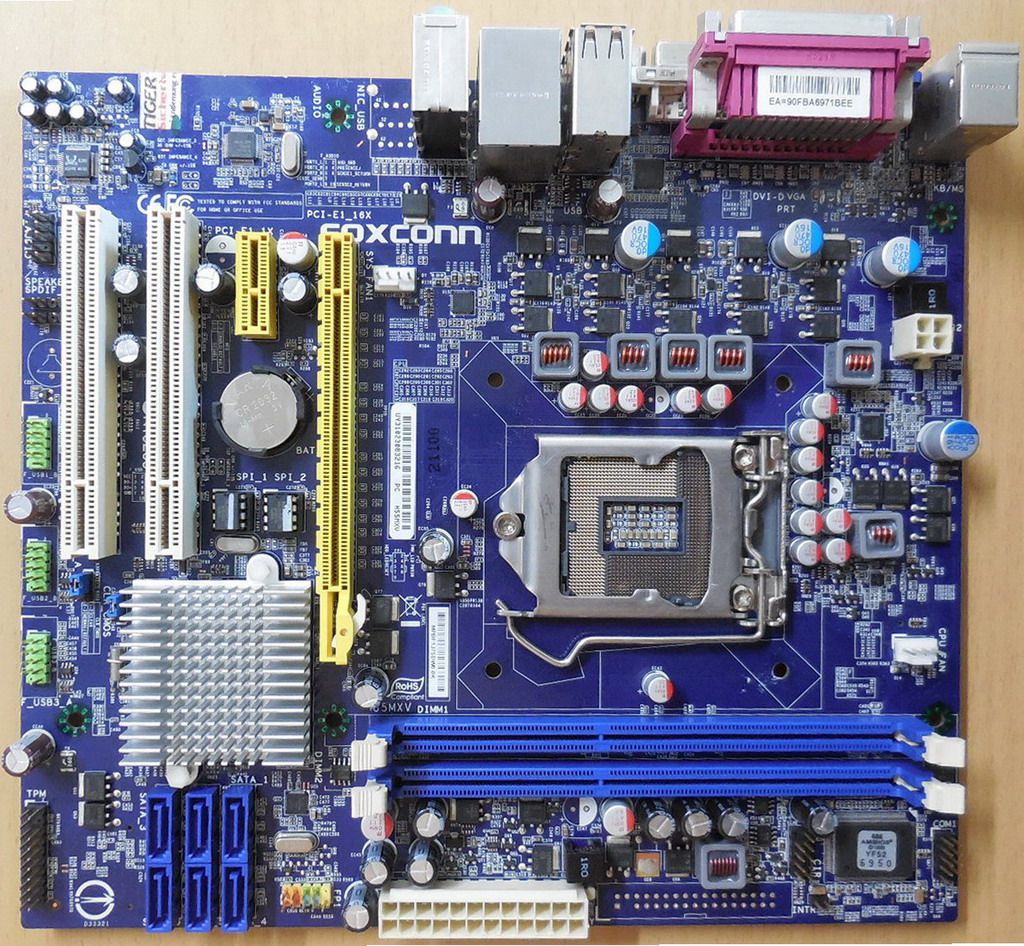

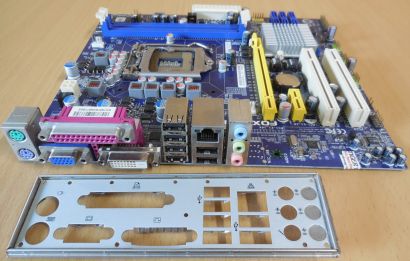

Foxconn H55MXV Rev 1.0 Mainboard + Blende Sockel 1156 DDR3 PCIe LAN DVI VGA
Technische Daten
CPU
Supports Intel® Core™ i7, Core™ i5 and Core™ i3 processors in the LGA 1156 socket
DMI Bus
Full duplex up to 10Gb/s each direction
Chipset
Intel® H55
Memory
2 x 240-pin DDR3 DIMM sockets
Support up to 8GB of system memory
Dual channel DDR3 1333/1066MHz architecture
Audio
Realtek ALC662 6-channel High Definition Audio chip
2/4/5.1-channel
Support for S/PDIF out; Jack-Sensing function
Gigabit LAN
Realtek RTL81XX 10/100/1000Mb/s Gigabit Ethernet LAN chip
Expansion Slots
1 x PCI Express x16 slot
1 x PCI Express x1 slot
2 x PCI slots
OnBoard SATA
6 x SATA connectors; 300MB/s data transfer rate
Support hot plug and NCQ (Native Command Queuing)
USB
Supports up to 12 x USB 2.0 ports (6 rear panel ports, 3 onboard USB headers supporting 6 extra ports)
Supports USB 2.0 protocol up to 480Mb/s
Supports hot plug
Internal Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
6 x SATA II connectors
3 x USB 2.0 connectors (supporting 6 USB devices)
1 x 4-pin CPU Fan header
1 x 4-pin System Fan header
1 x Front Panel connector
1 x Internal Speaker connector
1 x Front Audio connector
1 x CIR connector
1 x Chassis Intrusion alarm header (INTR)
1 x S/PDIF_OUT Connector
1 x CMOS Jumper
1 x Intel ME Jumper
1 x TPM connector
1 x COM1 connector
Back Panel Connectors
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x DVI-D Port
1 x Parallel port
1 x VGA port
6 x USB 2.0 ports
1 x RJ-45 LAN port
6-channel Audio ports
Hardware Monitor
System voltage detection; CPU/System temperature detection; CPU/System fan speed detection; CPU/System overheating shutdown; CPU/System fan speed control
PCI Express x1
Support 250MB/s (500MB/s concurrent) bandwidth; Low power consumption and power management features
PCI Express x16 Gen2.0
Support 8GB/s (16GB/s concurrent) bandwidth; Low power consumption and power management features
Green Function
Supports ACPI (Advanced Confguration and Power Interface)
Supports S0 (normal), S1 (power on suspend), S3 (suspend to RAM), S4 (suspend to disk), and S5 (soft - off)
Form Factor
Micro ATX Form Factor, 9.6 inches x 8.6 inches (24.4cm x 21.8cm)
Operating System
Support for Microsoft® Windows® Vista / XP / 7
Lieferumfang
Das Mainboard inkl. Blende, Treiber-CD und Handbuch * ohne weiteres Zubehör * gebraucht in der OVP *
Abbildung ähnlich
