Fujitsu D2912-A12 GS 1 Esprimo P9900 Mainboard +Bl

Products description

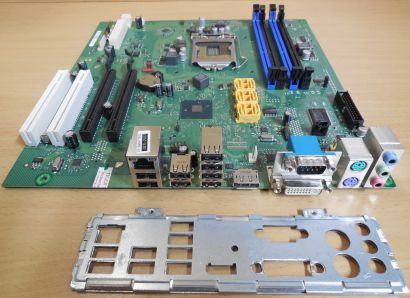

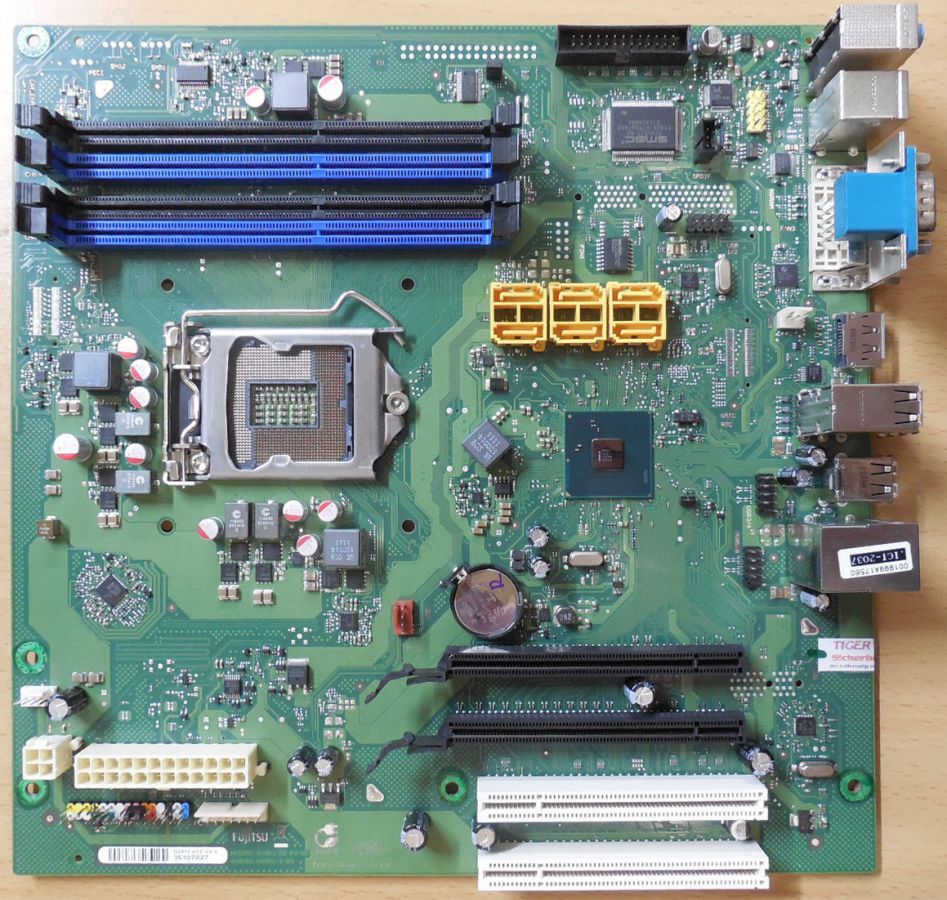

Fujitsu D2912-A12 GS 1 Mainboard + Blende Sockel 1156 PCIe x16

Technische Daten

ausgebaut aus einem Esprimo P9900; Für genanntes Modell oder baugleich geeignet;

Hersteller: Fujitsu

Model: D2912-A12 GS 1

CPU-Unterstützung:

Intel® Core™ i7-880 Prozessor (4K/8T, 3,06 GHz, 8 MB), Intel® Core™ i7-870 Prozessor (4 Kerne / 8 Threads, 2,93 GHz, 8 MB), Intel® Core™ i7-Prozessor i7-860 (4 Cores / 8 Threads, 2.80 GHz, 8 MB)

Intel® Core™ i5-760 Prozessor (4 Kerne / 4 Threads, 2,80 GHz, 8 MB), Intel® Core™ i5-Prozessor i5-750 (4 Cores / 4 Threads, 2.66 GHz, 8 MB), Intel® Core™ i5-680 Prozessor (2 Kerne / 4 Threads, 3,6 GHz, 4 MB, Intel® HD Graphics), Intel® Core™ i5-Prozessor i5-670 (2 Cores / 4 Threads, 3.46 GHz, 4 MB, Intel® HD Graphics), Intel® Core™ i5-660 Prozessor (2 Kerne / 4 Threads, 3,33 GHz, 4 MB, Intel® HD Graphics), Intel® Core™ i5-650 Prozessor (2 Kerne / 4 Threads, 3,20 GHz, 4 MB, Intel® HD Graphics), Intel® Core™ i5-661 Prozessor (2 Kerne / 4 Threads, 3,33 GHz, 4 MB), Intel® Core™ i5-655 Prozessor (2 Kerne / 4 Threads, 3,20 GHz, 4 MB)

Intel® Core™ i3-560 Prozessor (2 Kerne / 4 Threads, 3,33 GHz, 4 MB, Intel® HD Graphics), Intel® Core™ i3-550 Prozessor (2 Kerne / 4 Threads, 3,20 GHz, 4 MB, Intel® HD Graphics), Intel® Core™ i3-Prozessor i3-540 (2 Cores / 4 Threads, 3.06 GHz, 4 MB, Intel® HD Graphics), Intel® Core™ i3-Prozessor i3-530 (2 Cores / 4 Threads, 2.93 GHz, 4 MB, Intel® HD Graphics)

Intel® Pentium® Prozessor G6950 (2 Kerne / 2 Threads, 2,80 GHz, 3 MB, Intel® HD Graphics), Intel® Pentium® Prozessor G6960 (2 Kerne / 2 Threads, 2,93 GHz, 3 MB, Intel® HD Graphics)

möglicherweise Bios-Update (Microcode) nötig!

Sockel: Intel 1156

Chipsatz: Intel® Q57

RAM: 4x 1,5V DDR3-RAM-Bänke, PC3-8500~DDR3 1066 oder PC3-10600~DDR3 1333, maximal: 16 GB

VGA: CPU abhängig; Anschlüsse: 1x DVI-I (mittels DVI-SUB-D Adapter als VGA); 1x Displayport

Audio: ALC663 5.1 Multichannel Audio

Buzzer/int. Speaker Support nein/ja

LAN: 10/100/1000 Mbit/s Intel® 82578 DM supporting WoL, Remote Boot, iAMT

Serial ATA / ATA / RAID / eSATA-support: ja/nein/ja/ja

FAN monitored PSU / CPU FAN(1) / System (FAN2) / AUX2 (FAN3)/ AUX2 (FAN4): ja/ja/ja/nein/nein

FAN controlled PSU / CPU FAN(1) / System (FAN2) / AUX2 (FAN3)/ AUX2 (FAN4): ja/ja/ja/nein/nein

TEMP monitored CPU / ONB1 / ONB2 / HDD: ja/ja/ja/nein

Firewire / HI-SPEED USB 2.0: nein/ja

SmartCard SystemLock (USB/serial): ja/nein

FSC Keyboard Power Button Support: ja

Expansion Slots: 1x PCIe x16-Steckplatz; 1x PCIe x4-Steckplatz; 2x PCI-Steckplatz (32 Bit, 33 MHz, 5 V und 3,3 V)

Internal Connectors: 6x SATAII-Schnittstelle (davon optional 2x e-SATA); 1x Parallelport Connector; 1x S/PDIF Connector (digital Audio); 1x Front Audio Connector; 3x USB2.0 Connector für 2 Anschlüsse; 1x Intrusion Connector; 1x Lüfteranschluss CPU; 1x Lüfteranschluss FAN2; 1x Stromversorgung ATX 24-pol; 1x Stromversorgung ATX12V 4-pol; 1x PSU Fan control Connector; 1x Front Panel Connector;

Rear Panel: 1x DVI; 1x DisplayPort; 1x Audio ports Mic. in / Line in / Line out; 1x LAN (RJ-45); 2x PS/2 (Maus/Tastatur); 8x USB2.0 Anschlüsse; 1x Seriell Anschluss (FIFO, 16550 compatible);

Formfaktor: BTX

Special Features

Green Edition

Halogen-free and lead-reduced product

Silent Fan

Independent temperature related processor fan and system fan supervision and control

System Guard

View and adjust Silent Fan

Silent Drives

Noise reduction for optical and hard disk drives

Recovery BIOS

Restores a disrupted BIOS
