Gigabyte GA-H55-UD3H Rev 1.0 Mainboard + Blende Sockel 1156 HDMI DDR3 PCIe
Technische Daten
CPU
Support for an Intel® Core™ i7 series processor / Intel® Core™ i5 series processor / Intel® Core™ i3 series processor in the LGA1156 package
L3 cache varies with CPU
(Go to GIGABYTE's website for the latest CPU support list.)
Chipset
Intel® H55 Express Chipset
Memory
4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
Dual channel memory architecture
Support for DDR3 2200+/1800/1600/1333/1066/800 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules
* To reach DDR3 2200 MHz and above, you are required to use with Intel Core i7/Core i5 CPU without HD Graphics and install a discrete graphics card. When using Intel Core i5/Core i3/ Pentium CPU with HD Graphics, the maximum memory speed supported is 1666 MHz.
* Go to GIGABYTE's website for the latest memory support list.
Onboard Graphics
1 x D-Sub port (Note 2)
1 x DVI-D port (Note 2) (Note 3) (Note 4)
1 x HDMI port (Note 2) (Note 4)
Audio
Realtek ALC889 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF In/Out
Support for CD In
LAN
1 x RTL8111D chip (10/100/1000 Mbit)
Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16) (Note 5) (The PCIEX16 slot conforms to PCI Express 2.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4) (Note 6)
1 x PCI Express x1 slots
4 x PCI slots
Multi-Graphics Technology
Support for ATI CrossFireX™ technology (Note 7)
Storage Interface
by Chipset:
6 x SATA 3Gb/s connectors (SATA2_0, SATA2_1, SATA2_2, SATA2_3, SATA2_4, SATA2_5) supporting up to 6 SATA 3Gb/s devices
by iTE IT8213 chip:
1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
by iTE IT8720 chip:
1 x floppy disk drive connector supporting up to 1 floppy disk drive
USB
Up to 12 USB 2.0/1.1 ports (8 on the back panel, 4 via the USB brackets connected to the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x floppy disk drive connector
1 x IDE connector
6 x SATA 3Gb/s connectors
1 x CPU fan header
2 x system fan headers
1 x power fan header
1 x front panel header
1 x front panel audio header
1 x CD In connector
1 x S/PDIF In header
1 x S/PDIF Out header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x clearing CMOS jumper
Back Panel Connectors
1 x PS/2 keyboard or PS/2 mouse port
1 x D-Sub port (Note 2)
1 x DVI-D port (Note 2) (Note 3) (Note 4)
1 x HDMI port (Note 2) (Note 4)
1 x optical S/PDIF Out connector
8 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/ Side Speaker Out/Line In/Line Out/Microphone)
I/O Controller
iTE IT8720 chip
H/W Monitoring
System voltage detection
CPU/System temperature detection
CPU/System/Power fan speed detection
CPU overheating warning
CPU/System/Power fan fail warning
CPU/System fan speed control (Note 8)
BIOS
2 x 64 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Unique Features
Support for @BIOS; Q-Flash; Xpress BIOS Rescue; Download Center; Xpress Install; Xpress Recovery2; EasyTune; Dynamic Energy Saver™ 2; Smart 6™; Auto Green; Q-Share
Operating System
Support for Microsoft® Windows 7 / Vista / XP
Form Factor
ATX Form Factor; 30.5cm x 21.0cm
Note
(Note 1) Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
(Note 2) To use the onboard D-Sub, DVI-D and HDMI ports, you must install an Intel CPU with integrated graphics.
(Note 3) The DVI-D port does not support D-Sub connection by adapter.
(Note 4) You can use only one of the onboard digital graphics ports (e.g. HDMI and DVI-D) for output when in the BIOS Setup program or when during the POST screens.
(Note 5) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(Note 6) When the PCIEX1 slot is populated with an expansion card, the PCIEX4 slot will operate at up to x1 mode.
(Note 7) The PCIEX16 slot operates at up to x4 mode when ATI CrossFireX™ is enabled.
(Note 8) Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.(Note 9) Available functions in EasyTune may differ by motherboard model.
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

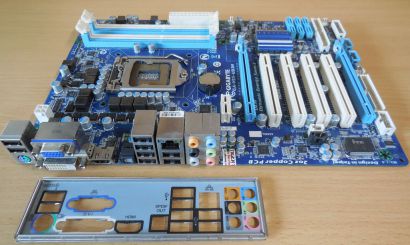

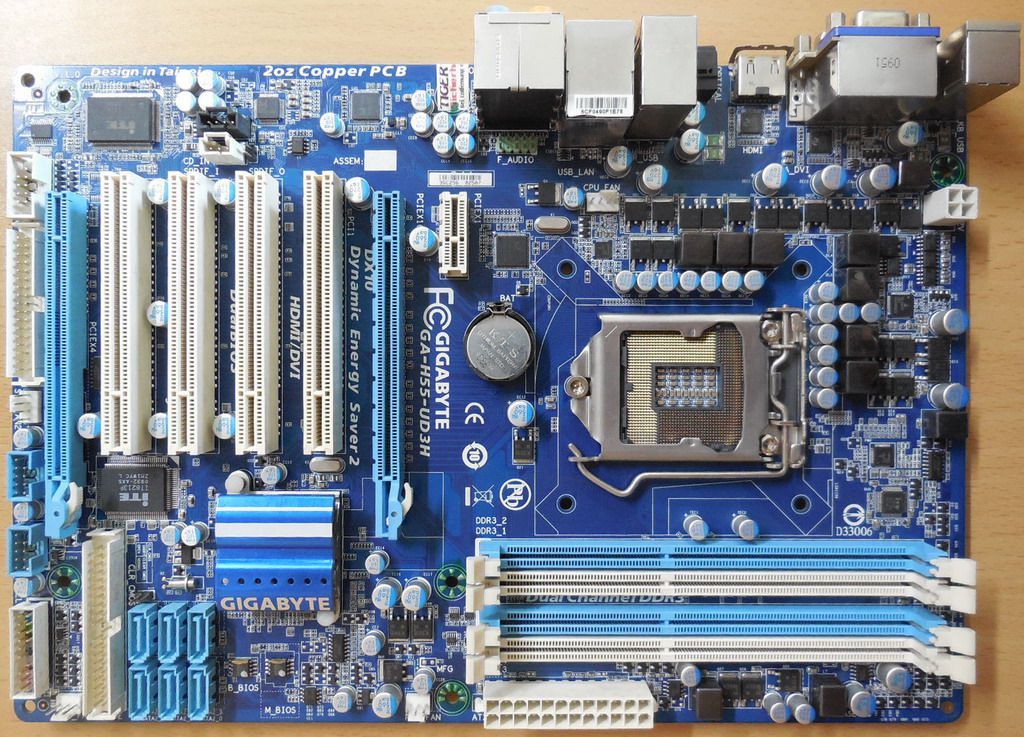

Abbildung ähnlich
