Products description

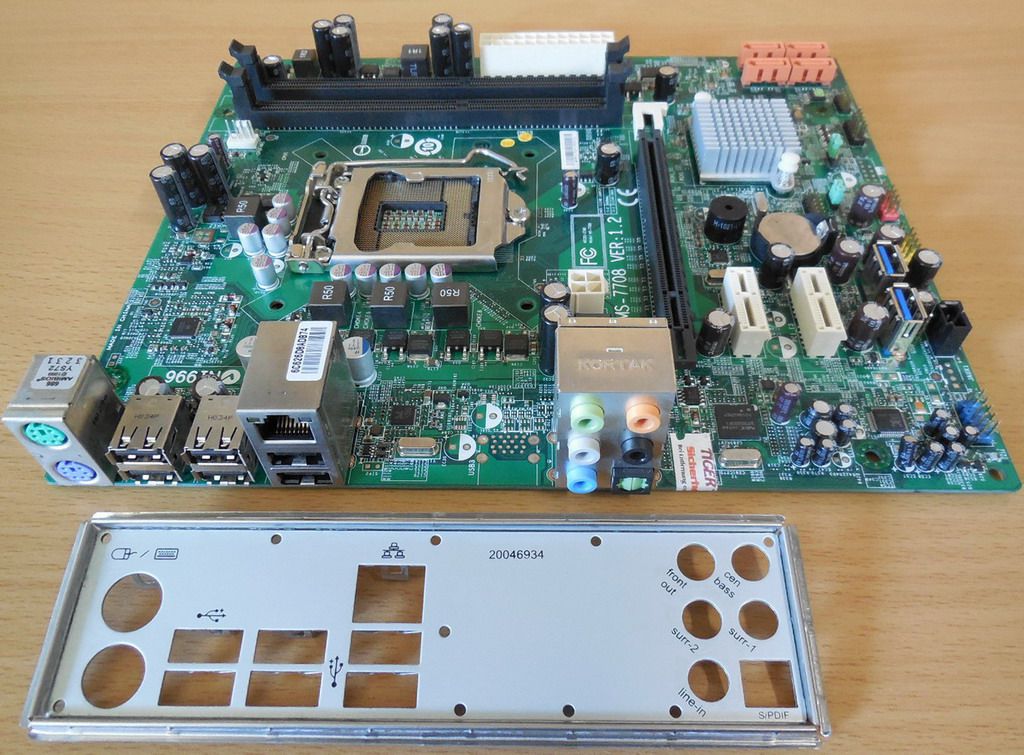

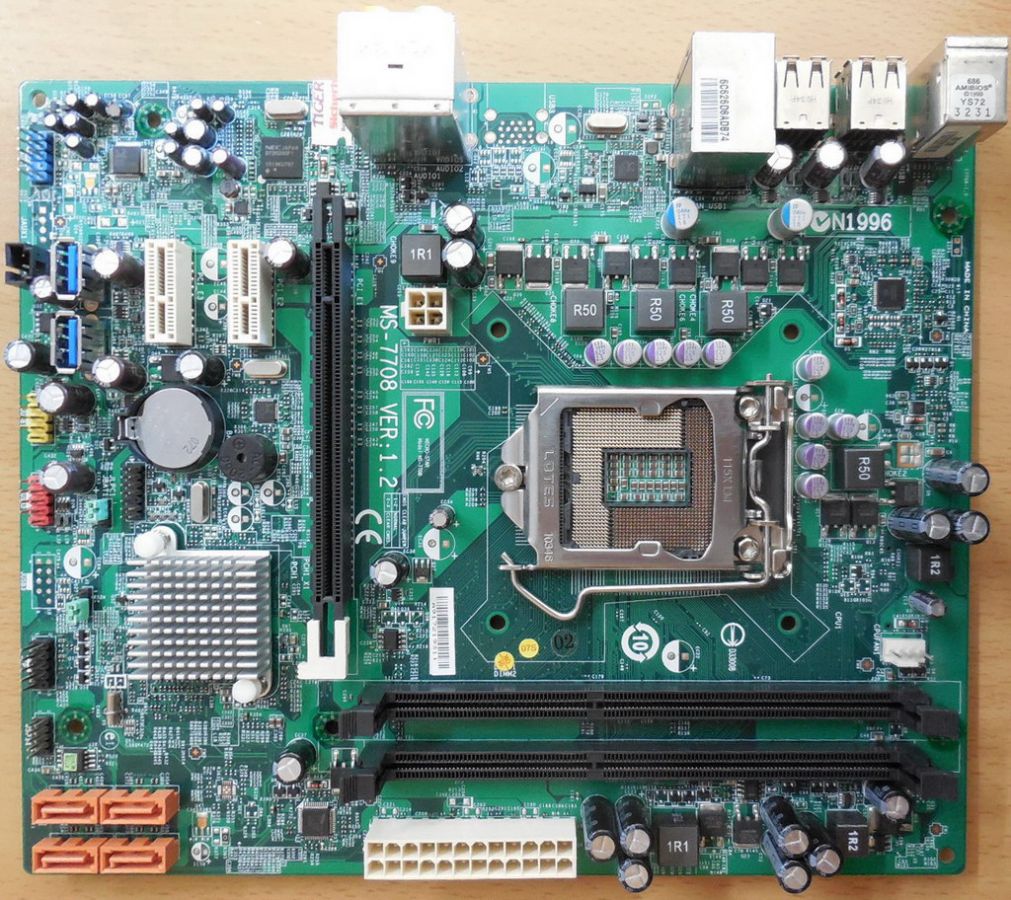

MSI MS-7708 Ver 1.2 Medion Akoya P4375 D MD8880 Mainboard + Blende Sockel 1156
Technische Daten
CPU
Intel Sockel 1156 Processor Support
(Clarkdale) Core i5, i3
Chipset
Intel P55
Main Memory
2 * 240-pin DDR3 DIMM slots
Supports Dual Channel DDR3 1333/1066 MHz non-ECC, un-buffered memory (Max. 8GB - 4GB per slot)
Slots
1 x PCI Express x16 (2.0)
2 x PCI Express x1
On-Board SATA
Serial ATA/ATA II controller integrated
SATA I Up to 1.5Gb/sec transfer rate; SATA II Up to 3Gb/sec transfer rate.
Can connect up to 4 Serial ATA drives.
Audio
Realtek ALC887 – 8 Kanal 7.1 High Definition Audio Codec
LAN
Realtek Gigabit Netzwerkkarte – 10/100/1000Mb/s
USB
max. 10 x USB2.0 ports
2 x USB3.0 ports OnBoard
Internal I/O Connectors
ATX 24-Pin power connector
4-pin ATX 12V power connector
CPU fan connector
Clear CMOS jumper
2 x USB 2.0 headers for additional 4 USB 2.0 ports
2 x USB 3.0 ports onboard
JSPD1 SPDIF connector
JSPI1 connector
JLPC1 connector
Front panel audio connector
Front panel connectors
4 x Serial ATA device connectors
Back Panel I/O Ports
- 1 x PS/2 Mouse
- 1 x PS/2 Keyboard
- 1 x Audio I/O ( Front Line Out; Back Surround Line Out; Center/Subwoofer Line Out; Side Surround Line Out; Line In; SPDIF Out opt. )
- 6 x USB 2.0
- 1 x RJ45 LAN jack
Formfaktor
microATX ca. 24,4 x 20,3 cm
Lieferumfang
Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
