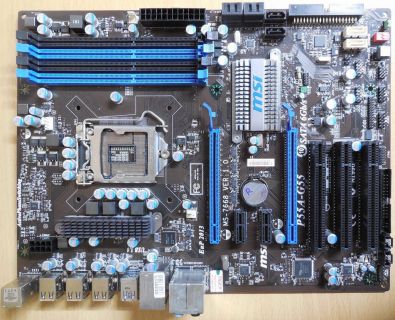

MSI P55A-G55 MS-7668 Ver 1.0 Mainboard + Blende Intel P55 Sockel 1156 DDR3 PCIe uvm.
Technische Daten
CPU
Supports Intel® i3 / i5 / i7 based processors in LGA1156 package
Please refer to CPU Support for compatible CPU; the above description is for reference only
Chipset
Intel® P55 Chipset
- Supports QPI up to 6.4GT/s
- Hi-Speed USB (USB2.0) controller, 480Mb/sec
- 6 x SATAII ports with transfer rate up to 3Gb/s
- PCI Master v2.3, I/O APIC
- ACPI 2.0 compliant
- Serial ATA RAID 0/1/5/10
- Integrated AHCI controller
Main Memory
Supports four unbuffered DIMM of 1.5 Volt DDR3 1066/1333/1600*/1800*/2000*/2133* (OC) DRAM, 16GB Max
Supports 1GB / 2GB / 4GB DRAM size
Supports Dual channel mode
Slots
2 x PCI Express gen2 x16 slots
(If two graphics cards are installed at PCI_E1 & PCI_E4 slots, these two PCIE x16 lanes will auto arrange from x16/ x0 to x8/ x8)
Supports ATI® Crossfire™
2 x PCI Express gen2 x1 slots
3 x PCI slots, support 3.3V/ 5V PCI bus Interface
On-Board IDE/SATA
One Ultra DMA 66/100/133 IDE controller integrated in Marvell® 88SE9128B1 (Supports PIO, Bus Master operation modes. Can connect up to two Ultra ATA drives.)
SATAII / SATAIII controller integrated in Intel P55/Marvell® 88SE9128B1 chipsets
Supports six SATAII ports by P55
Supports two SATAIII ports by Marvell 88SE9128B1, up to 6Gb/s, support SATA RAID 0/1
Supports AHCI controller with AHCI / SATA RAID 0/1/5/10 by P55
Realtek® ALC892 Audio
Flexible 8-channel audio with jack sensing
Compliant with Azalia 1.0 Spec
Meet Microsoft Vista Premium spec
LAN
Supports One LAN PCI-E Gb LAN controller by Realtek 8111DL
Internal I/O Connectors
1 x ATX 24-Pin power connector
1 x 8-pin ATX 12V power connector
1 x 4-Pin CPU FAN connector
2 x 3-Pin System FAN connectors
1 x CD-in connector
1 x Front panel audio connector
1 x Front panel connector
1 x chasis intrusion connector
2 x USB 2.0 connectors
6 x Serial ATAII connectors
2 x Serial ATAIII connectors
1 x ATA133 connector
1 x Power Button
1 x Clear CMOS jumper
1 x SPDIF-out connector
1 x TPM module connector
1 x Serial port connector
1 x Parallel port connector
1 x Easy OC Switch
Back Panel I/O Ports
1 x Optical SPDIF-out
1 x PS/2 Keyboard/Mouse port
8 x USB 2.0 ports
2 x USB 3.0 ports
1 x RJ45 LAN Jack
1 x 6 in 1 audio jack
BIOS
The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.
Dimension
30.5cm(L) x 23.0cm(W) ATX Form Factor
Mounting
6 mounting holes
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
