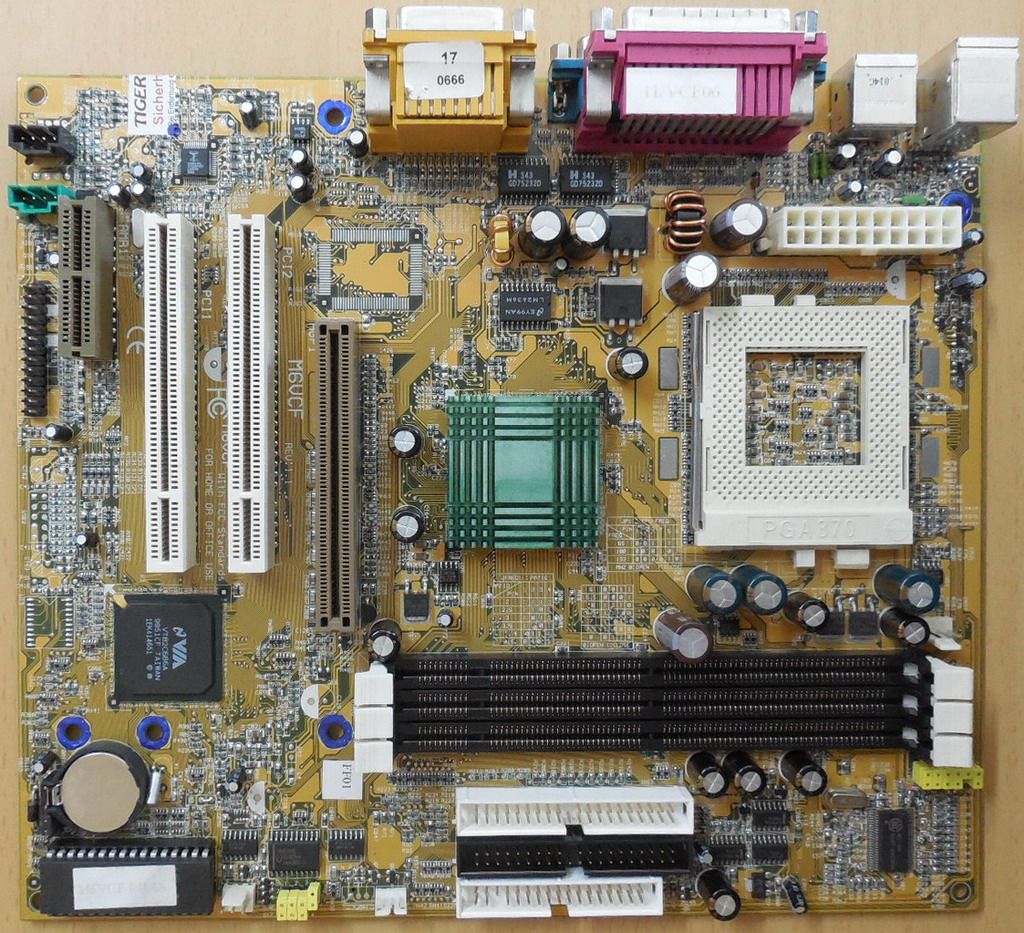

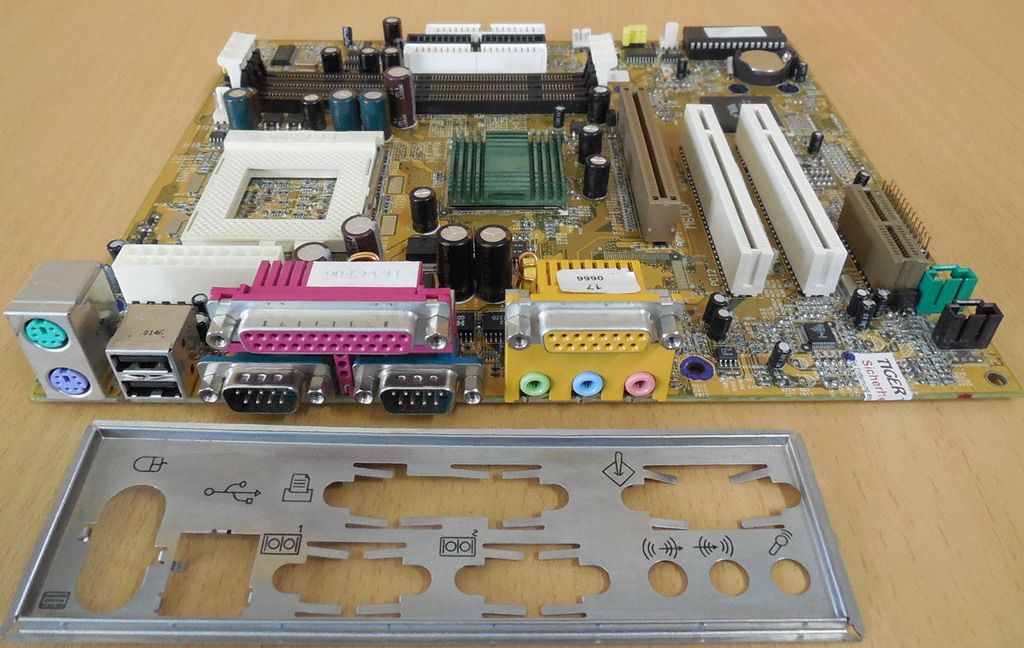

Biostar M6VCF Rev 1.1 Retro Mainboard + Blende Sockel 370 AGP PCI Audio USB
Technische Daten
CPU
The Celeron™ processor (PPGA) Coppermine (FC-PGA) Micro-Processor provides the new generation power for high-end workstations and servers
Provides Socket 370
Running at 66/100 or 133MHz Front Side Bus frequency
Speed
Supports from 233MHz to 733MHz CPU core speeds
Supports 33 MHz PCI Bus speed
Chipset
VIA Apollo 133A (VT82C694X) Northbridge + VIA VT82C686A Southbridge
DRAM Memory
Supports three 8/16/32/64/128/256MB DIMM module sockets
Supports Synchronous DRAM (3.3V)
Supports a maximum memory size of 768MB with SDRAM
133MHz Bus frequency
Shadow RAM
A memory controller that provides shadow RAM
Expansion Slots
1 x AMR slot
2 x 32-Bit PCI bus master slots (PCI V2.2 compliant)
1 x AGP v2.0 compliant 2X/4X slot
Full Featured Accerated Graphics Port (AGP) Controller
Synchronous and pseudo-synchronous with the CPU bus with optimal skew control
AGP v2.0 compliant
Supports SideBand Addressing (SBA) mode (non-multiplexed address / data)
Supports 266 MHZ 4x mode for AD and SBA signaling
Pipelined split-transaction long-burst transfers up to 1GB /sec
Eight level read request queue
Four level posted-write request queue
Thirty-two level (quadworks) read data FIFO (256 bytes)
Sixteen level (quadworks) write data FIFO (128 bytes)
Intelligent request reordering for maximum AGP bus utilization
Suppots Flush/Fence commands
Graphics Address Relocation Table (GART)
(1) One level TLB structure
(2) Sixteen entry fully associative page table
(3) LRU replacement scheme
(4) Independent GART lookup control for host /AGP /PCI master accesses
Direct Sound Ready AC97 Digital Audio Controller
Dual full-duplex Direct Sound channels between system memory and AC97 link
PCI master interface with scatter / gather and bursting capability
32 byte FIFO of each direct sound channel
Host based sample rate converter and mixer
Standard v1.0 or v2.0 AC97 Codec interface for single or cascaded AC97 Codec's from multiple vendors
Loopback capability for re-directing mixed audio streams into USB and 1394 speakers
Hardware SoundBlaster Pro for Windows DOS box and real-mode Dos legacy compatibility
Plug and play with 4 IRQ, 4 DMA, and 4 VO space options for SoundBlaster Pro and MIDI hardware
Hardware assisted FM synthesis for legacy compatibility
Direct two game ports and one MIDI port interface
Complete software driver support for Windows 95, Windows 98, Windows NT and Windows 2000.
PCI-Based Sigmatel STAC9721T AC 97 Digital Audio Processor
64 voice wavetable synthesis
DOS Game Compatibility
Uses a single sharable PCI Interrupt
Multiple sample rate support
CD audio over the PCI bus
Tone Control
Speaker EQ
PCI Bus Master for fast DMA
Sound are stored in Host memory
Sound Library of over 4000 Sounds
3 Stereo inputs and 3 mono inputs can be mixed into the output stream
Direct I/O space access of the control registers
Fully Compliant with PC97 Power Managment specification
PCI Enhanced IDE Built-in onboard
Supports 4 IDE hard disk drives
Supports Mode 4, bus master mode, high performance hard disk drives
Supports Ultra DMA33/66, bus master mode
Supports IDE interface with CD-ROM
Supports high capacity hard disk drives
Supports LBA mode
Supports booting from LS-120 or ZIP disk
Super I/O Built-in onboard
Support one multi-mode Parallel Port (SPP, EPP, ECP)
Supports two serial ports, 16550 UART with 16 byte FIFO
UART data rates up to 1.5MBaud
Supports one Infrared transmission (IR) port
Supports PS/2 Mouse
Supports 360KB, 720KB, 1.2MB, 1.44MB and 2.88MB floppy disk drives
Internal I/O Connectors
1 x ATX 20-Pin Connector
1 x 3-pin CPU FAN Connector
1 x 3-pin Chassis FAN Connector
1 x CD Audio-In Connector
1 x Telephony Connector
1 x JP1 CPU Frequency Selection Jumperblock
1 x JFREQ1 CPU Ratio Selection Jumperblock
1 x Wake On LAN Connector
1 x Front Panel Connector
1 x Floppy Disk Connector
2 x IDE Connectors
1 x Clear CMOS Jumper
Back Panel I/O Ports
1 x PS/2 Keyboard port
1 x PS/2 Mouse port
2 x COM ports
1 x Parallel port
1 x Game/Midi port
3 x Audio Jacks (Line-Out, Line-In, Mic)
BIOS
AWARD legal & user-friendly BIOS
Supports PnP functions
Dimension
Micro ATX Formfaktor; 21.3 cm X 24.5 cm (W x L)
Power Management
Supports both ACPI (Advanced and Configuration and Power Interface) and legacy (APM) power management
ACPI v1.0 Compliant
APM v1.2 Compliant
CPU clock throttling and clock stop control for complete ACPI CO to C3 state support
PCI bus clock run, Power Management Enable (PME) control, and PCVCPU clock generator stop control
Supports multiple system suspend types: power-on suspends with flexible CPU/PCI bus reset options and suspend to disk (soft-off), all with hardware automatic wake-up
Multiple suspend power plane controls and suspend status indicators
One idle timer, one peripheral timer and one general purpose timer, plus 24/32-bit ACPI compliant timer
Normal, doze, sleep, suspend,and conserve modes
Global and local device power control
System event monitoring with two event classes
Primary and secondary interrupt differentiation for individual channels
Dedicated input pins for power and sleep buttons, external modem ring indicator, and notebook lid open/close for system wake-up
Multiple internal and external SMI sources for flexible power management models
One programmable chip select and one microcontroller chip select
Enhanced integrated real time clock (RTC) with date alarm, month alarm, and century field
Thermal alarm on either external or any combination of two internal temperature sensing eircuits.
Hot docking support
I/O pad leakage control
Green Function
Supports power management operation via BIOS
Power down timer from 1 min to 1 hour
Wakes up by any key pressed or mouse activity
Wake On AN connector
Universal Serial bus
USB v.1.1 and Intel Universal HCI v.1.1 compatible
Eighteen level (doublewords) data FIFO with full scatter and gather capability
Root hub and four function ports
Intrgrated physical layer transceivers with optional over-current detection status on USB inputs
Keyboard and mouse support
