Products description

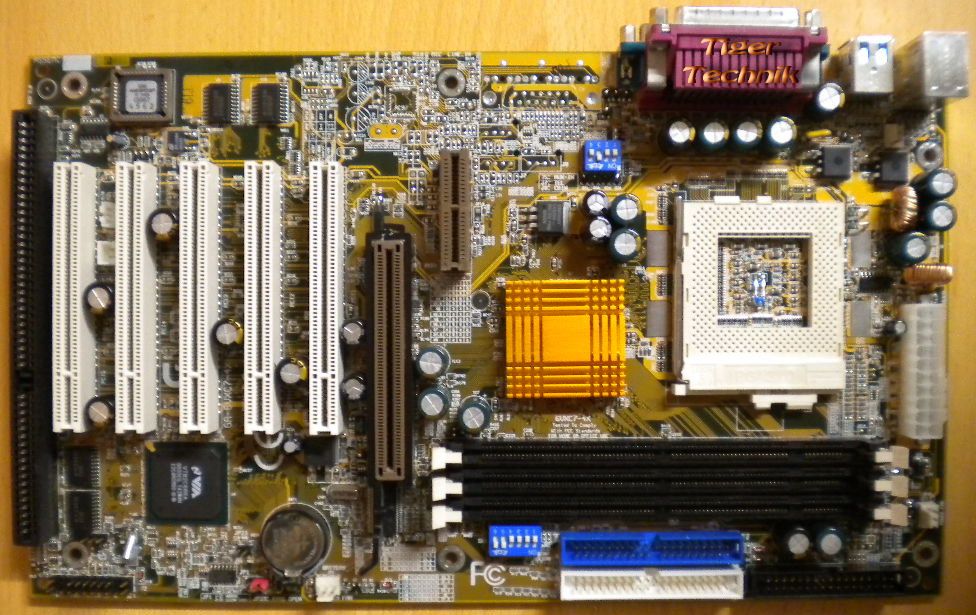

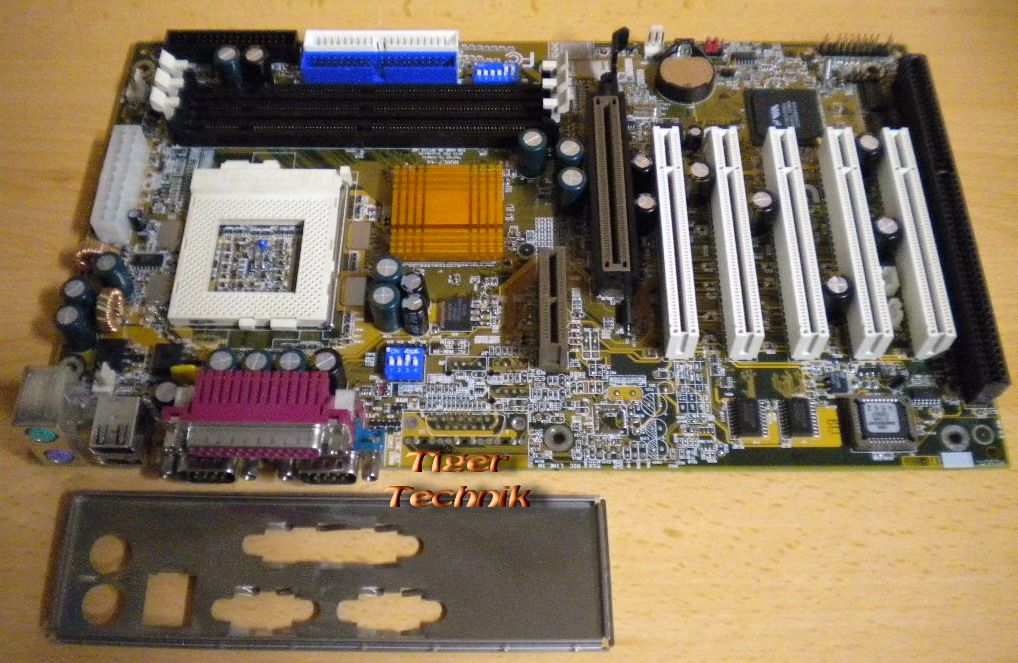

Gigabyte GA-6VXC7-4X Rev 3.0 Mainboard + Blende
Sockel 370 Intel Pentium III AMR AGP PCI ISA
Technische Daten
Hersteller: Gigabyte
Model: GA-6VXC7-4X Rev. 3.0
Sockel: Intel 370
Form Factor 30.5 cm x 18.0 cm ATX size form factor, 4 layers PCB.
CPU:
Socket 370 processor
Intel Pentium 3 100/133MHz FSB, FC-PGA
Intel CeleronTM 66MHz FSB, FC-PGA
VIA Cyrix III 100/133MHz FSB,
2nd cache in CPU (Depend on CPU)
Chipset: VT82C694X (VIA Apollo Pro 133A) + VT82C686A
Clock Generator
ICS 9248DF-39
66/100/133 MHz system bus speeds (PCI 33MHz)
75/83/112/124/140/150 MHz system bus speeds (PCI 44MHz) (reserved)
Memory
3x 168-pin DIMM sockets.
Supports PC-100 / PC-133 SDRAM and VCM SDRAM
Supports up to 1.5GB DRAM
Supports only 3.3V SDRAM DIMM
Supports 72bit ECC type DRAM integrity mode.
I/O Control: VT82C686A
Slots
1x AGP slot supports 4X mode & AGP 2.0 compliant
5x PCI slot supports 33MHz & PCI 2.2 compliant
1x AMR(Audio Modem Riser) slot
1x 16-bit ISA Bus slots
On-Board IDE
2 IDE bus master (DMA 33/ ATA 66 )IDE ports for up to 4 ATAPI devices
Supports PIO mode 3, 4 (UDMA 33/ATA 66) IDE & ATAPI CD-ROM
On-Board Peripherals
1 floppy port supports 2 FDD with 360K, 720K,1.2M, 1.44M and 2.88M bytes
1 parallel ports supports SPP/EPP/ECP mode
2 serial ports (COM A & COM B)
2 USB ports
1 IrDA connector for Fast IrDA
Hardware Monitor
CPU / System fan revolution detect
CPU / System temperature detect
System voltage detect (Vcore,Vcc3,Vcc,+12V)
CPU overheat shutdown detect
ACPI Shutdown Temperature
PS/2 Connector: PS/2 Keyboard interface and PS/2 Mouse interface
BIOS: Licensed AMI BIOS, 2M bit flash ROM
Additional Features
Support Wake-On-LAN (WOL)
Support Internal / External Modem Ring On.
Includes 3 fan power connectors.
Poly fuse for keyboard over-current protection
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
