Products description

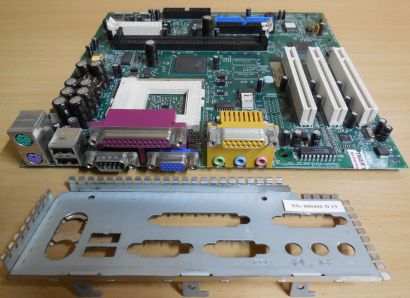

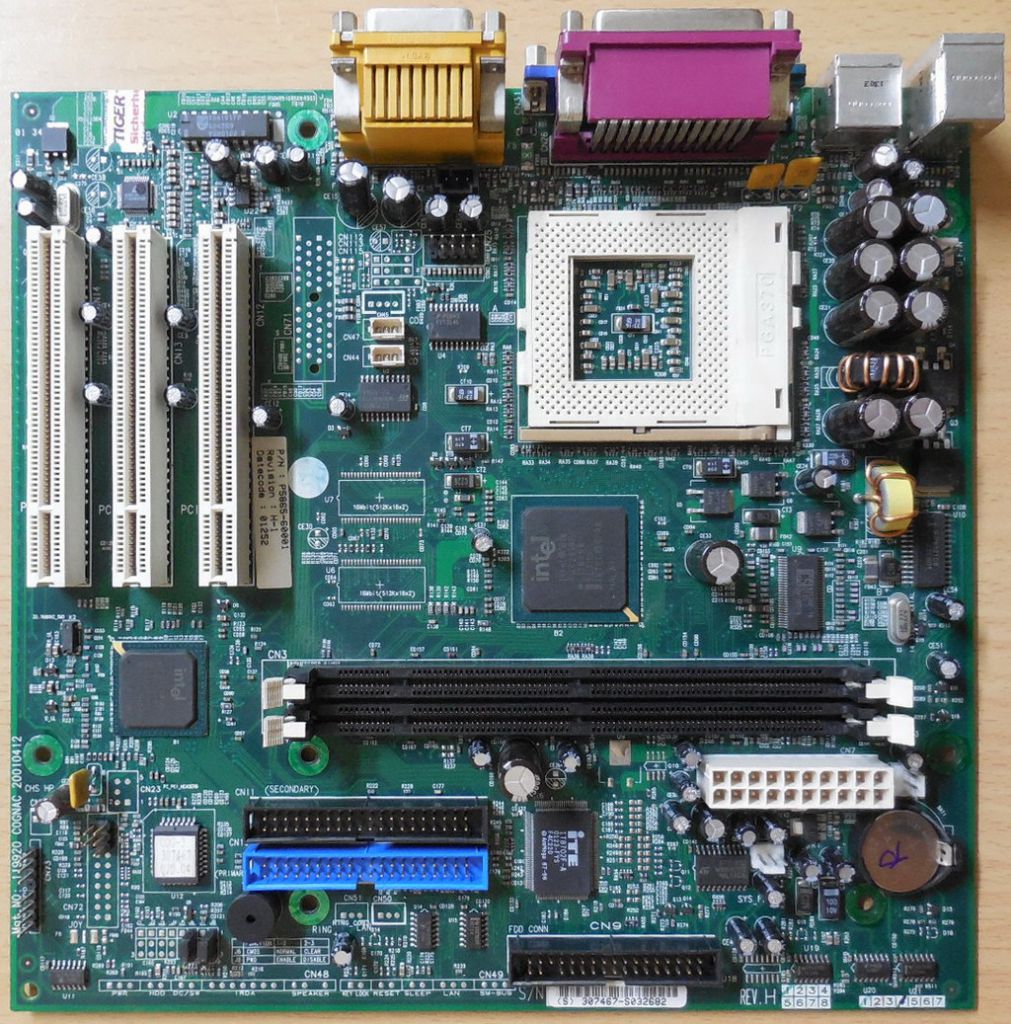

HP Vectra XE310 Mainboard + Blende Sockel 370 SD-RAM VGA PCI Audio IDE USB
Technische Daten
Hersteller HP
Serie HP Vectra XE310 Series 1
P/N P5865-60001 Rev H-1
Model 119920 Cognac 20010412
Sockel Intel® 370
Prozessor Intel® Pentium III; Intel® Celeron
Chipset Intel® 815EG
FSB 100 / 133 MHz
Memory 2x SD-RAM Bänke, 100 / 133 MHz, unbuffered non-ECC 3.3V; (Max 512MB)
Steckplätze 3x PCI
VGA Integrierter 2D/3D/DirectX Intel® Graphics Controller; Uses up to 4MB shared with system memory; 230MHz Integrated DAC; VGA DB-15 (analog) Display Interface
Audio AC´97 Audio Controller
Anschlüsse Intern
1 x FDD Connector für Diskettenlaufwerk (Floppy)
2 x IDE Connectors for up to 4 IDE/ATA devices
1 x CMOS Jumper
1 x PSWD Jumper
1 x COM 2 Connector
2 x CD Audio Connector
1 x 3-Pin Power FAN Connector
1 x 3-Pin CPU FAN Connector
1 x 3-Pin System FAN Connector
1 x Front Panel Connector
1 x 20-pin ATX Mainboard Power Connector
Anschlüsse Extern 2x USB, 1x VGA, 1x Seriell (COM); 1x Parallel (LPT); Audio Anschlüsse 3x 3,5 mm Klinke; 1x Gamepad/Midi
Formfaktor microATX; ca. 235mm x 239mm
Lieferumfang
Das Mainboard inkl. Blende * Ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
