Products description

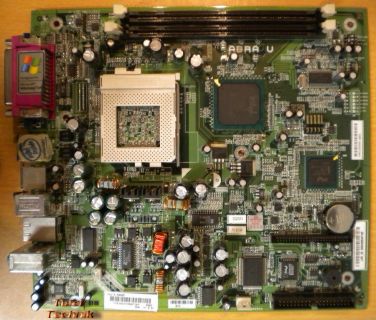

HP ABRA U Mainboard für e-PC 40 oder baugleich
Technische Daten
Processor
Choice of processors:
Intel Celeron 1 GHz, 1.1 GHz, 1.2 GHz, 1.3 GHz, and 1.4 GHz processor and a 100 MHz front side bus;
Intel Pentium III 1.13 GHz and 1.2 GHz processor and a 133 MHz front side bus
Chipset
• Intel 815E chipset with 100 or 133 MHz system bus, includes Advanced Configuration and Power Interface (ACPI) and integrated LAN and graphics
Cache
• 128 KB or 256 KB level-2 integrated cache
Memory
• 64, 128, or 256 MB 133 MHz Synchronous DRAM (non-ECC) standard (PC133 specification):
– Expandable to 512 MB through two memory sockets
– Auto-detection of memory modules via serial presence detect (SPD)
Hard disk controller
• PCI Bus Master Ultra ATA controller:
– Support for Ultra ATA/100, PIO (up to Mode 4), DMA Mode 2, and Ultra DMA Mode
Audio subsystem
• Integrated Analog Devices AD1885 AC ‘97 CODEC audio
• 16-bit stereo audio recording and playback
• Full-duplex audio
• 92 dB (A-weighted) signal-to-noise ratio (PC-D-A)
• External connectors for microphone, stereo input and stereo output for amplified speakers or 32-ohm headphones
• External amplified speakers or headphones as option
Ports
• One 25-pin parallel port (ECP/EPP bi-directional Centronics supporting IEEE 1284)
• One 9-pin serial port (16550 UART)
• Two PS/2 connectors for keyboard and mouse (Mini-DIN)
• Four Universal Serial Bus (USB) ports for easy reconfiguration, attachment, and hot swapping of external peripherals (two in front, two in rear—all secured)
• One 15-pin VGA connector on system board
• Audio ports (stereo-in, stereo-out, microphone-in)
• One RJ-45 Ethernet port (10Base-T/100Base-TX)
Port control system
• Ports and I/Os are secured from unplugging of plugged devices; prevents unwanted devices from being plugged in at the rear of the system
• Front USB ports are S/W secured by the BIOS (can be disabled)
• Integrated Intel PRO/100 VE network connection
• 10Base-T and 100Base-TX physical layer capabilities
• Wake on LAN support: Remote Power On, Remote Power Off, Remote Wake-up
Keyboard & mouse
• PS/2 keyboard & mouse
• BIOS in flash EEPROM for convenient BIOS upgrades
hp e-diagtools
• Available by pressing F8 after system boot
• Pre-boot diagnostic
• Full system diagnostics
• Online BIOS upgrades
• Instant Support tuner preloaded
Lieferumfang
Nur das Mainboard * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
