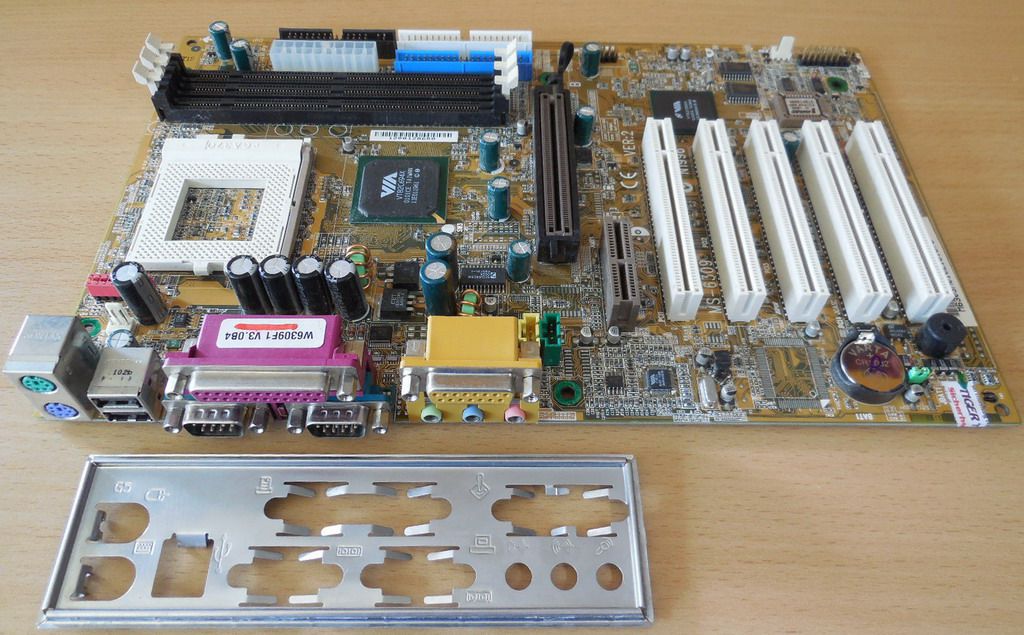

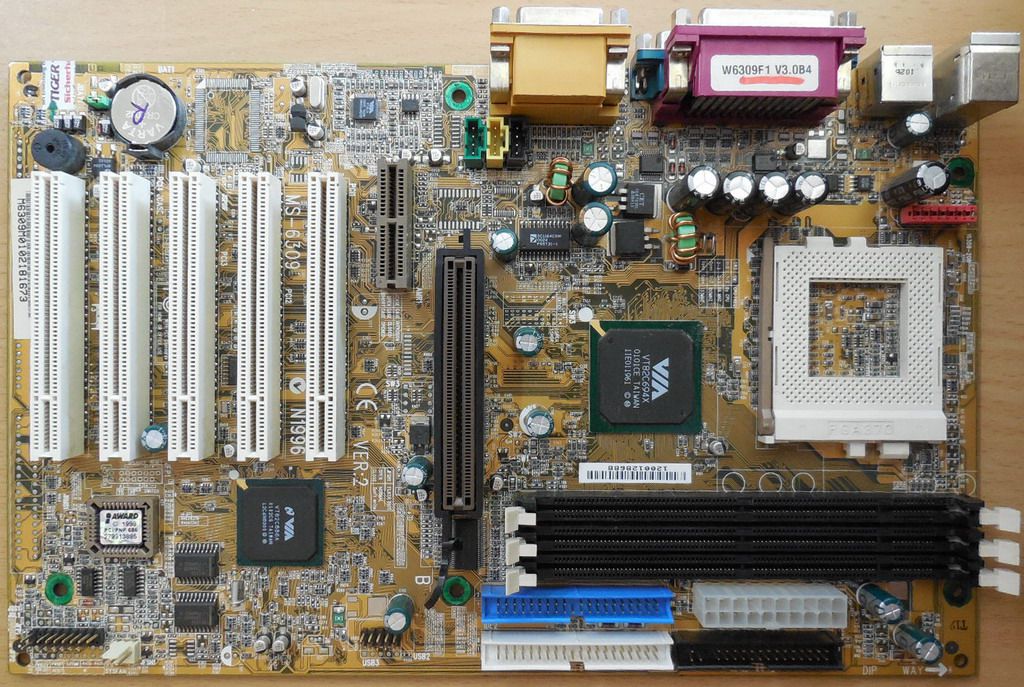

MSI MS-6309 Ver 2 Mainboard + Blende Sockel 370 SD-RAM AGP PCI Audio IDE USB
Technische Daten
CPU
Support Socket 370 for Intel® Pentium® III (FC-PGA)/Celeron™ (FC-PGA) processor
Support 500MHZ, 553MHz, 600MHz,...1.1GHz
Chipset
VIA® 694X chipset. (510 BGA)
- Support 66/100/133MHz FSB
- AGP 4x/2x and PCI plus Advanced ECC Memory Controller
- Support PC100/133 SDRAM, VCM technology
VIA® VT82C686B chipset. (352 BGA)
- Advanced Power Management Features
- Integrated Super I/O (FDC, LPT, COM 1/2, and IR)
- DirectSound AC97 Audio
- Dual bus Master IDE Ultra DMA33/66/100
- ACPI
Clock Generator
66.6MHz, 100MHz and 133MHz clocks are supported
Main Memory
Support six memory banks using three 168-pin unbuffered DIMM
Support a maximum memory size of 1.5GB (32M x 8)
Support ECC (1-bit Error Code Correct) function
Support 3.3v SDRAM DIMM
Slots
One AGP (Accelerated Graphics Port) slot
- AGP specification compliant
- AGP 66MHz 3.3v/1.5v for 2x/4x device support
One AMR (Audio Modem Riser) slot
Five 32-bit Master PCI Bus slots and one 16-bit ISA bus slots
Supports 3.3v/5v PCI bus Interface
On-Board IDE
An IDE controller on the VIA® VT82C686B Chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 33/66/100 operation modes. Can connect up to four IDE devices.
AC’97 Compliant Audio Chip Integrated (Software Audio)
VIA VT1611A Audio codec
AC’97 audio support for SoundBlaster Pro
FM synthesis legacy audio
Interne Anschlüsse
Echtzeituhr/Kalender mit Batteriepufferung
2 x IDE Connectors for up to 4 devices
1 x Floppy/FDD Connector
1 x CPU FAN Connector (3-pin)
1 x System FAN Connector (3-pin)
1 x CPU FSB Switch
1 x Wake-on-LAN Connector
1 x Wake-on-Ring Connector
1 x CD-IN Connector
1 x AUX-IN Connector
1 x MODEM-IN Connector
1 x CMOS Jumper
1 x Front USB Connector for 2 additional ports
1 x Front Panel Connector
Buzzer
20-pin ATX Power Connector
Externe Anschlüsse
1 x PS/2 Maus
1 x PS/2 Tastatur
2 x Seriell (COM A/B)
1 x Parallel (SPP/EPP/ECP)
2 x USB
3 x Audio Klinke Anschlüsse
1 x Gameport
BIOS
The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.
Dimension
ATX Form Factor 30.5cm (L) x 19.2cm (W) x 4 layers PCB
Mounting
6 mounting holes
Lieferumfang
Das Mainboard inkl. Blende * Ohne weiteres Zubehör * gebraucht *
