Products description

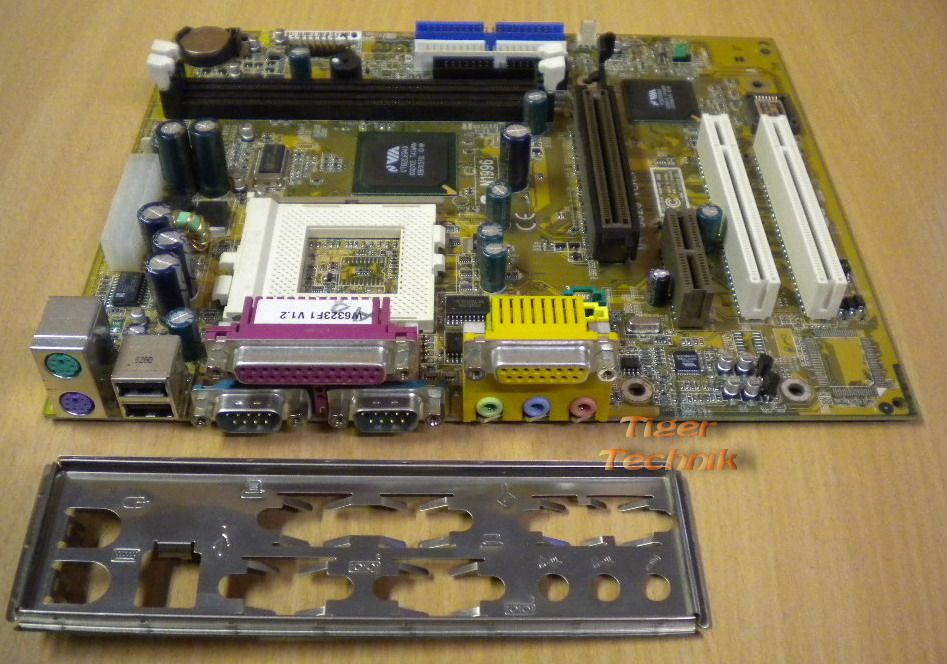

MSI MS-6323 Ver:1 mit Blende
Technische Daten:
Processor Subsystem
(VIA ® VT82C 694X chipset. (510 BGA))
Socket 370
for Intel ® Celeron™ or Intel PIII Coppermine™ processor
Supports 233MHz - 667MHz or faster processor. FSB @133MHz
4X AGP Slot; AGP 66/133MHz 3.3v device support
Two 168-pin unbuffered PC100/133 3.3v SDRAM
Support a maximum memory size of 2GB (32M x 8)
Support ECC (1-bit Error Code Correct) function.
IO SubSystem
(VIA ® VT82C686A chipset. (352 BGA))
1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes.
2 serial ports (COMA + COMB)
1 parallel port supports SPP/EPP/ECP mode
2 USB ports (reserved 2 USB Front Pin Header)
1 IrDA/HP connector for SIR.
One AMR(Audio Modem Riser) slot.
Two 32-bit Master PCI Bus slots
PCI plusAdvanced ECC Memory Controller
Supports 3.3v/5v PCI bus Interface
Integrated Audio
Creative CT5880. (Optional)
64 Voice WaveTable Synthesizer
Sound Library of over 4000 different sounds
Support Microsoft Direct Sound, Direct Sound 3D, Direct Music, and A3DAPI.
IDE Controller
PIO, Bus Master and Ultra DMA 33/66 operation modes up to four IDE devices
Advanced System Power Management Features
BIOS
The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.
Dimension
Micro-ATX Form Factor:
24.4cm (L) x 20cm (W)
6 mounting holes.
Lieferumfang
Das Mainboard + Blende - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
