Products description

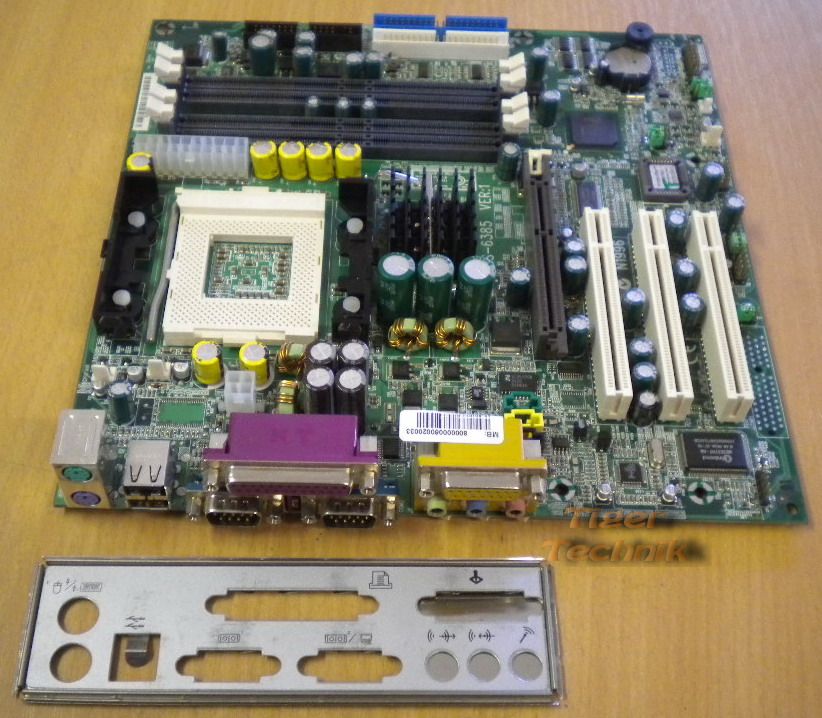

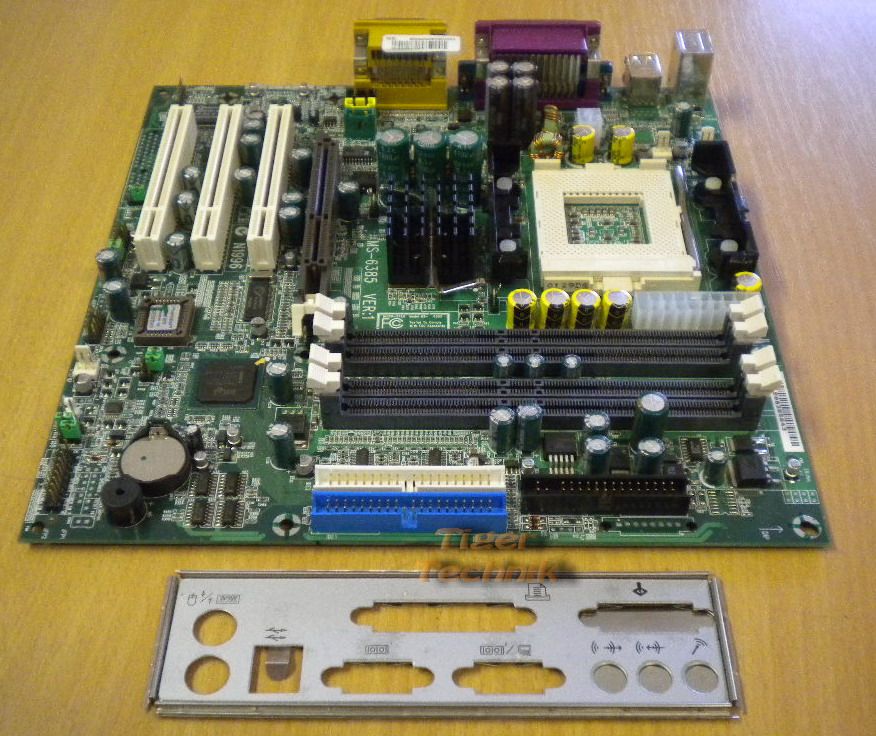

MSI MS-6385 Ver:1 Mainboard + Blende
Technische Daten:
CPU
• Support Socket 423 for Intel® Pentium®4 Processor • Supports 1.4 ~ 2.0GHz
Chipset
• Intel® 850 Chipset
- Up to 2GB Maximum memory (Rambus)
- AGP Pro Interface with 4x SBA/Data Transfer
• Intel® ICH2 Chipset
- AC'97 Controller Integrated
- 2 full IDE channels, up to ATA100
- Low pin count interface for SIO
- 4 USB Ports
- Support one CNR slot
FSB
• Supports 400MHz FSB
Main Memory
• Supports four 184-pin Gold-lead RIMM sockets.
• Supports a maximum memory size of 2GB.
Slots
• One CNR (Communication Network Riser) slot.
• One AGP (Accelerated Graphics Port) slot.
- Support up to 4x mode
• Three 32-bit/33MHz Master PCI Bus slots.
- Supports 3.3v/5v PCI bus Interface.
On-Board IDE
• An IDE controller on the ICH2 chipset provides IDE HDD /
CD-ROM with PIO, Bus Master and Ultra DMA 100 operation modes.
• Can connect up to four IDE devices.
Audio
• ICH2 chip integrated
- AC'97 Compliant
On-Board Peripherals
• On-Board Peripherals include:
- 1 Floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes.
- 2 Serial ports (COM A + COM B)
- 1 Parallel port supports SPP/EPP/ECP mode
BIOS
• The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• IDE drive auto configure, Advanced Power Management (APM) 1.2, ACPI 1.0, DMI 2.3, ECC/Parity support.
Dimension
• 24.4 cm(L) x 24.4 cm(W) MicroATX Form Factor
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
