Products description

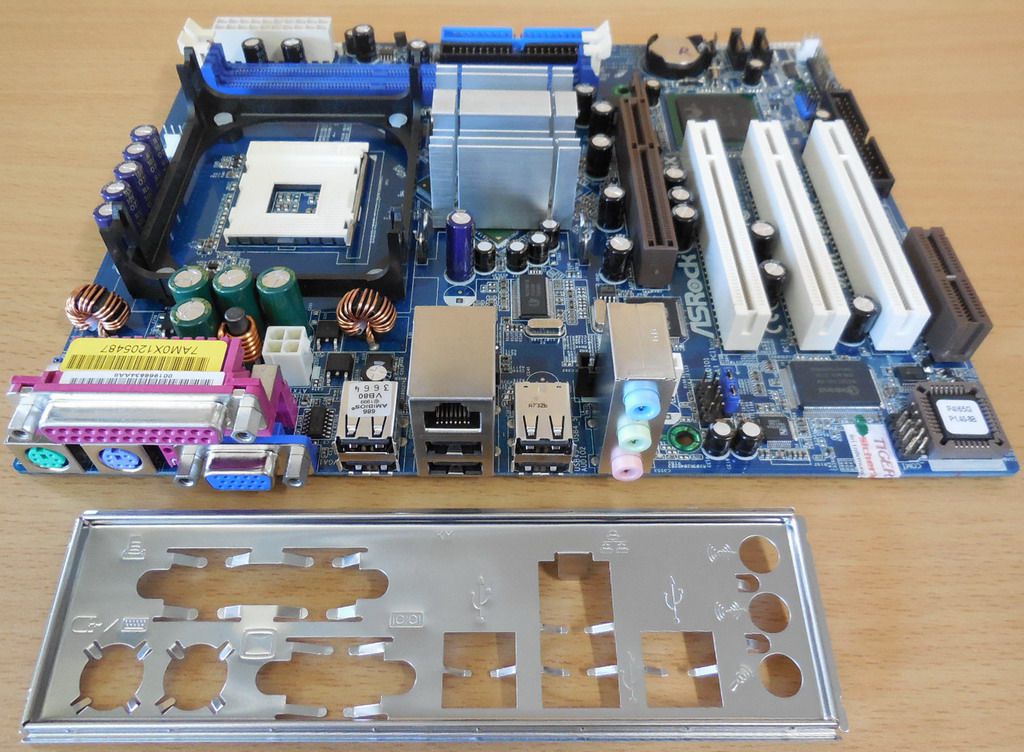

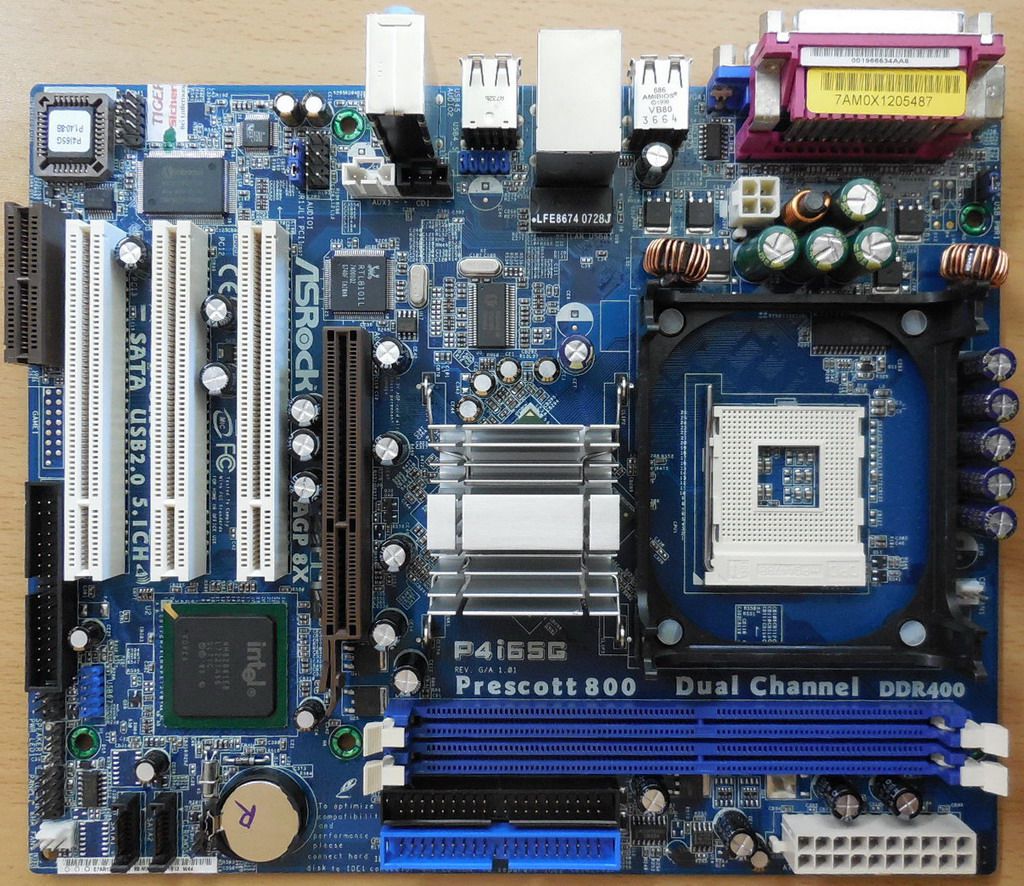

ASRock P4i65G Rev 1.01 Mainboard NEU OVP Sockel 478 AGP DDR VGA Sound LAN
Technische Daten
CPU
Socket 478 for Intel® Pentium® 4 / Celeron® D (Prescott, Northwood, Willamette) processors
FSB 800/533/400MHz
Supports Hyper-Threading Technology; Untied Overclocking Technology
Chipset
Northbridge: Intel® 865G
Southbridge: Intel® ICH5
Memory
Dual Channel DDR memory technology
2 x DDR DIMM slots
Supports DDR400/333/266 non-ECC, un-buffered memory
Max. capacity of system memory: 2GB
BIOS
4Mb AMI BIOS
AMI Legal BIOS
Supports "Plug and Play"; Jumperfree
ACPI 1.1 Compliance Wake Up Events
SMBIOS 2.3.1 Support
Graphics
Integrated Intel® Extreme Graphics 2
DirectX 8.0
Max. shared memory 96MB
Audio
Cmedia 9761A 5.1 channel audio CODEC
LAN
Realtek PCI LAN 8101L
Speed: 10/100 Ethernet
Supports Wake-On-LAN, PXE
Slots
3 x PCI slots
1 x AGP 8X slot
1 x AMR slot
Connector
2 x SATA 1.5 Gb/s connectors (No Support for "RAID" and Hot Plug functions)
2 x ATA100 IDE connectors (support 4 x IDE devices)
1 x Floppy connector
1 x IR header
1 x COM header
CPU/Chassis FAN connectors
20 pin ATX power connector
4 pin 12V power connector
CD in header
AUX in header
Front panel audio connector
2 x USB 2.0 headers (support 4 USB 2.0 ports; 2 of them are shared with USB4_5)
Rear Panel I/O
1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
1 x VGA Port
1 x Parallel Port (ECP/EPP support)
6 x Ready-to-Use USB 2.0 Ports
1 x RJ-45 LAN Port
Audio Jack: Line in / Front Speaker / Microphone
Unique Feature
Hybrid Booster: CPU Frequency Stepless Control; ASRock U-COP; Boot Failure Guard (B.F.G.)
Support CD
Drivers, Utilities, AntiVirus Software (Trial Version)
Accessories
Quick Installation Guide, I/O Shield; 1 x Floppy Cable; 1 x ATA 100 Cable; 1 x SATA Data Cable; 1 x SATA 1 to 1 Power Cable; 1 x COM Port Bracket
Hardware Monitor
CPU Temperature Sensing
Chassis Temperature Sensing
CPU Overheat Shutdown to Protect CPU Life
CPU Fan Tachometer
Chassis Fan Tachometer
Voltage Monitoring: +12V, +5V, +3.3V, Vcore
Form Factor
Micro ATX Form Factor: 9.6-in x 7.8-in, 24.4 cm x 19.8 cm
OS
Microsoft® Windows® 98SE / ME / 2000 / XP compliant
Certifications
FCC, CE
Lieferumfang

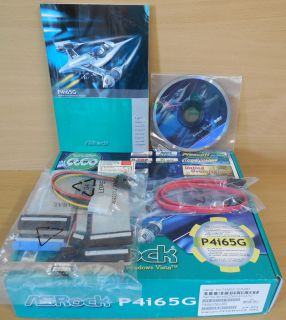

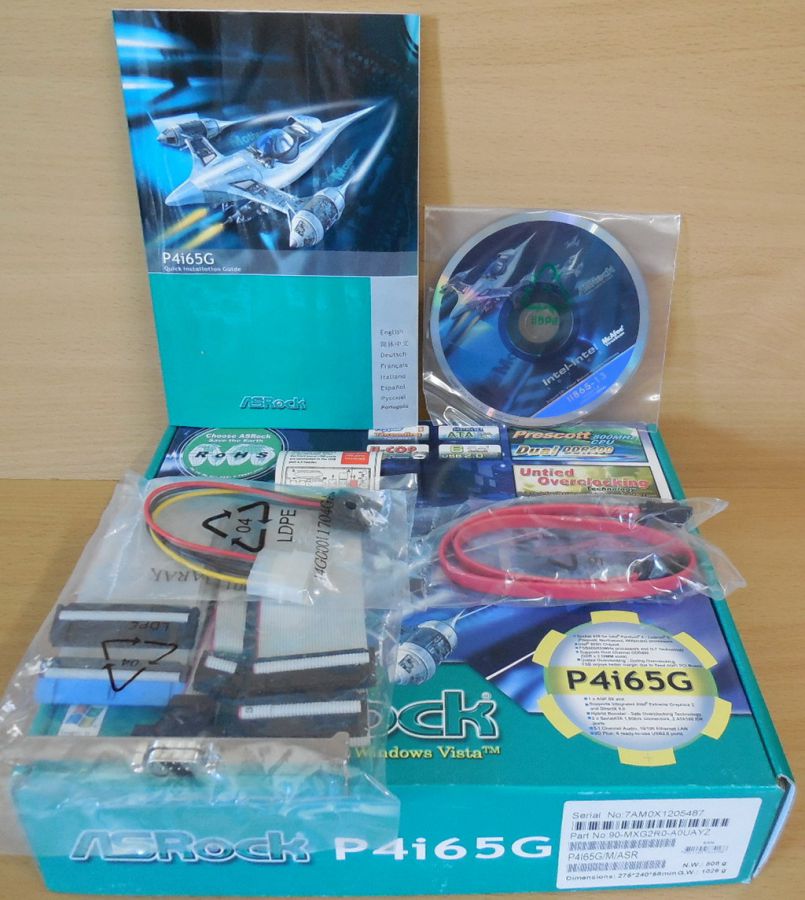

Mainboard mit Zubehör laut Handbuch * NEU & OVP *
Abbildung ähnlich
