Products description

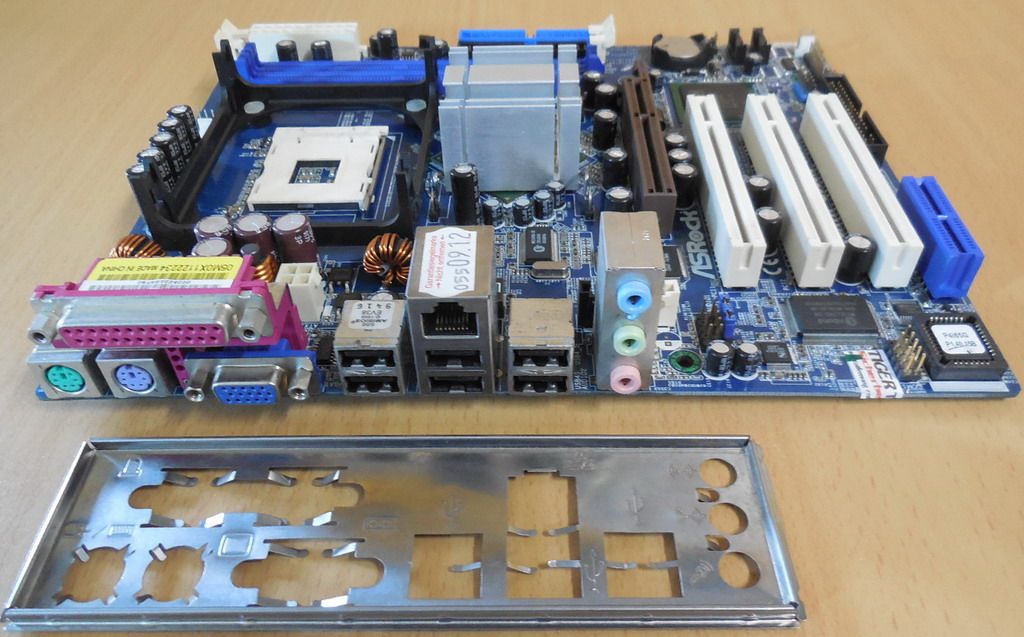

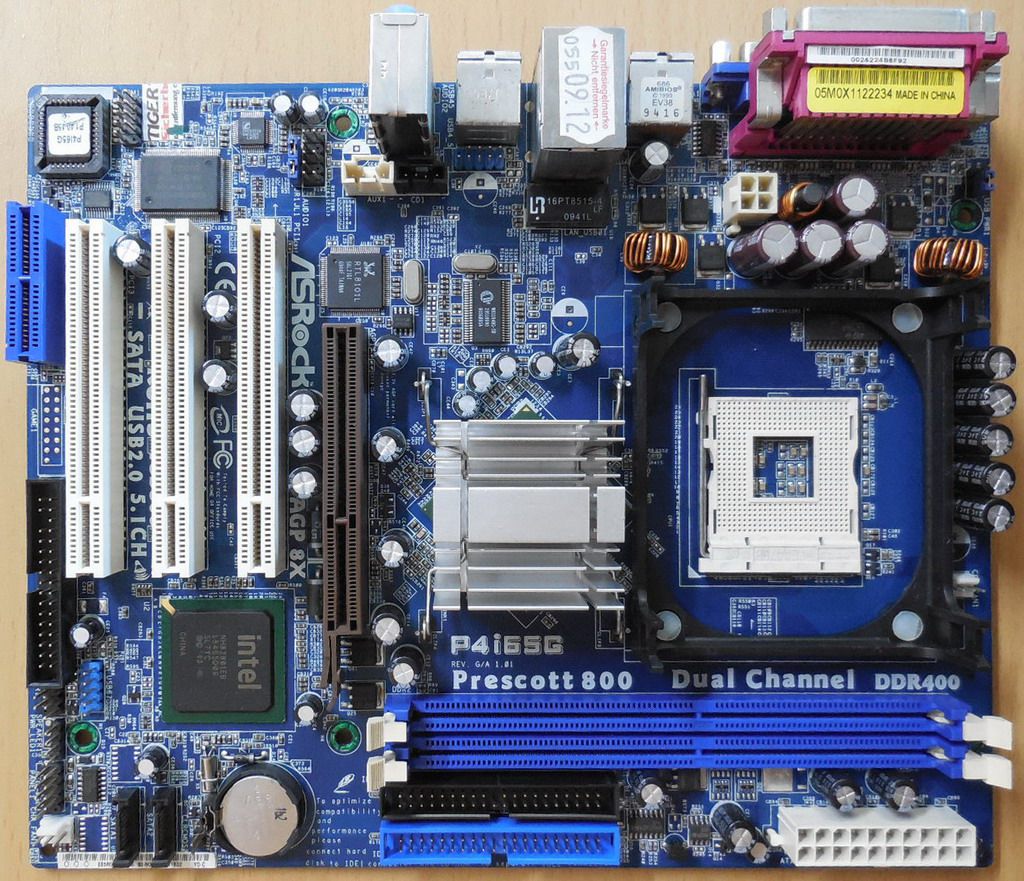

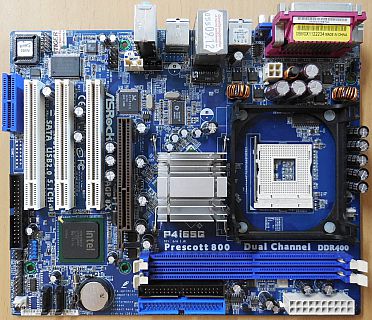

ASRock P4i65G Rev 1.01 Mainboard + Blende Sockel 478 AGP DDR VGA Audio SATA
Technische Daten
CPU
Socket 478 for Intel® Pentium® 4 / Celeron® D (Prescott, Northwood, Willamette) processors
FSB 800/533/400MHz
Supports Hyper-Threading Technology; Untied Overclocking Technology
Chipset
Intel® 865G Northbridge + Intel® ICH5 Southbridge
Memory
Dual Channel DDR memory technology
2 x DDR DIMM slots
Supports DDR400/333/266 non-ECC, un-buffered memory
Max. capacity of system memory: 2GB
Graphics
Integrated Intel® Extreme Graphics 2
DirectX 8.0
Max. shared memory 96MB
Audio
Cmedia 9761A 5.1 channel audio CODEC
LAN
Realtek PCI LAN 8101L
Speed: 10/100 Ethernet
Supports Wake-On-LAN; PXE
Slots
3 x PCI slots
1 x AGP 8X slot
1 x AMR slot
Connectors
2 x SATA 1.5 Gb/s connectors (No Support for "RAID" and Hot Plug functions )
2 x ATA100 IDE connectors (support 4 x IDE devices)
1 x Floppy connector
1 x IR header
1 x COM header
1 x 3-pin CPU FAN connector
1 x 3-pin Chassis FAN connector
1 x 20-pin ATX power connector
1 x 4-pin 12V power connector
1 x CD in header
1 x AUX in header
1 x Front panel audio connector
1 x Front Panel connector
1 x Internal Speaker connector
2 x USB 2.0 headers (support 4 USB 2.0 ports; 2 of them are shared with USB4_5)
1 x PS2_USB PWR1 Jumper
1 x CLRCMOS Jumper
ASRock I/O Plus Rear Panel I/O
1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
1 x VGA Port
1 x Parallel Port (ECP/EPP support)
6 x Ready-to-Use USB 2.0 Ports
1 x RJ-45 LAN Port
Audio Jack: Line in / Front Speaker / Microphone
Unique Feature
Hybrid Booster: CPU Frequency Stepless Control; ASRock U-COP; Boot Failure Guard (B.F.G.)
Hardware Monitor
CPU Temperature Sensing; Chassis Temperature Sensing; CPU Overheat Shutdown to Protect CPU Life; CPU Fan Tachometer; Chassis Fan Tachometer; Voltage Monitoring: +12V, +5V, +3.3V, Vcore
BIOS
4Mb AMI BIOS
AMI Legal BIOS
Supports "Plug and Play"; Jumperfree
ACPI 1.1 Compliance Wake Up Events
SMBIOS 2.3.1 Support
Form Factor
Micro ATX Form Factor: 9.6-in x 7.8-in, 24.4 cm x 19.8 cm
OS
Microsoft® Windows® 98SE / ME / 2000 / XP compliant
Certifications
FCC, CE
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
