Products description

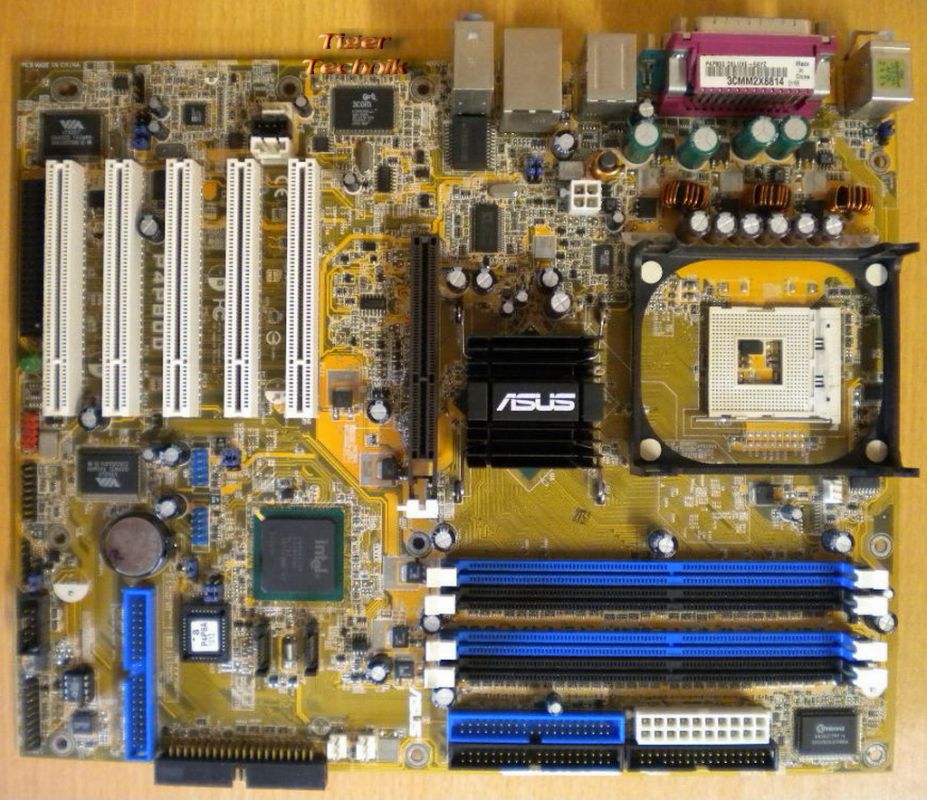

ASUS P4P800 Deluxe Rev 2.00 Mainboard + Blende
Sockel 478 AGP 8X DDR SATA IDE-RAID
Technische Daten
CPU
Socket 478 for Intel® Pentium® 4 / Celeron processors with speeds up to 3.06 GHz+ or higher
Supports Intel® Hyper-threading Technology
Supports Intel® Prescott CPU
Chipset
Northbridge: Intel® 865PE
Southbridge: Intel® ICH5R w/ RAID 0 support
Front Side Bus (FSB)
800/533/400 MHz
Memory
Dual-channel memory architecture
Supports PC3200/2700/2100 unbuffered non-ECC DDR DIMMs
4 x 184-pin DDR DIMM sockets for up to 4GB
Expansion slots
1 x AGP 8X (0.8V, 1.5V only)
5 x PCI
1 x ASUS WiFi slot for optional wireless LAN upgrade (nicht im Lieferumfang)
Storage
ICH5R SouthBridge supports
2 x UltraDMA 100/66/33 support for 4 devices
2 x Serial ATA with RAID 0 function
VIA® 6410 RAID controller supports
2 x UltraDMA 133 connector support for 4 drives with
RAID 0, RAID 1, RAID 0+1 and RAID JBOD
max. 10 Laufwerke!
AI Audio
ADI AD1985 6-channel Audio CODEC
1x S/PDIF out
AI Net
3COM 3C940 Gigabit Ethernet controller
AI BIOS
ASUS CrashFree BIOS2
ASUS Q-Fan Technology
ASUS Post Reporter™
AI Overclocking
Intelligent CPU frequency tuner
ASUS JumperFree
Adjustable CPU V-Core, Memory and AGP voltages
SFS (Stepless Frequency Selection) from 100MHz up to 400MHz at 1MHz increment
ASUS C.P.R. (CPU Parameter Recall)
Special features
Asus MyLogo 2
Instant Music
Asus EZ Flash
Multi-language
IEEE 1394
VIA VT6307 IEEE1394 controller supports two IEEE 1394 connectors
USB
Maximum of 8 USB 2.0 ports
Rear panel I/O
1 x Parallel port
1 x Serial port
1 x Coaxial S/PDIF output port
1 x PS/2 Keyboard port
1 x PS/2 Mouse port
1 x RJ45 port
4 x USB 2.0/1.1 ports
1 x IEEE 1394 port
Line In/Line Out/Microphone ports
Internal I/O
2 x USB 2.0/1.1 connector for additional 4 USB ports
CPU/Chassis/Power fan connectors
20-pin/4-pin ATX 12V power connectors
Chassis intrusion
IEEE 1394 connector
GAME/MIDI connector
SPDIF out connector
CD/AUX/Modem audio connectors
Front panel audio connector
COM2 connector
BIOS features
4Mb Flash ROM, AMI BIOS, PnP, DMI2.0, ACPI, SM BIOS 2.3, CrashFree Bios 2, ASUS EZ Flash, ASUS Instant Music, ASUS MyLogo2, ASUS Multi-Language BIOS
Industry standard
USB2.0, PCI 2.2 (PCI 2.3)
Manageability
DMI 2.0, WOL/WOR by PME, WO_USB, WO_KB/MS, chassis intrusion
Form Factor
ATX form factor: 12 in x 9.6 in (30.5 cm x 24.5 cm)
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
