Products description

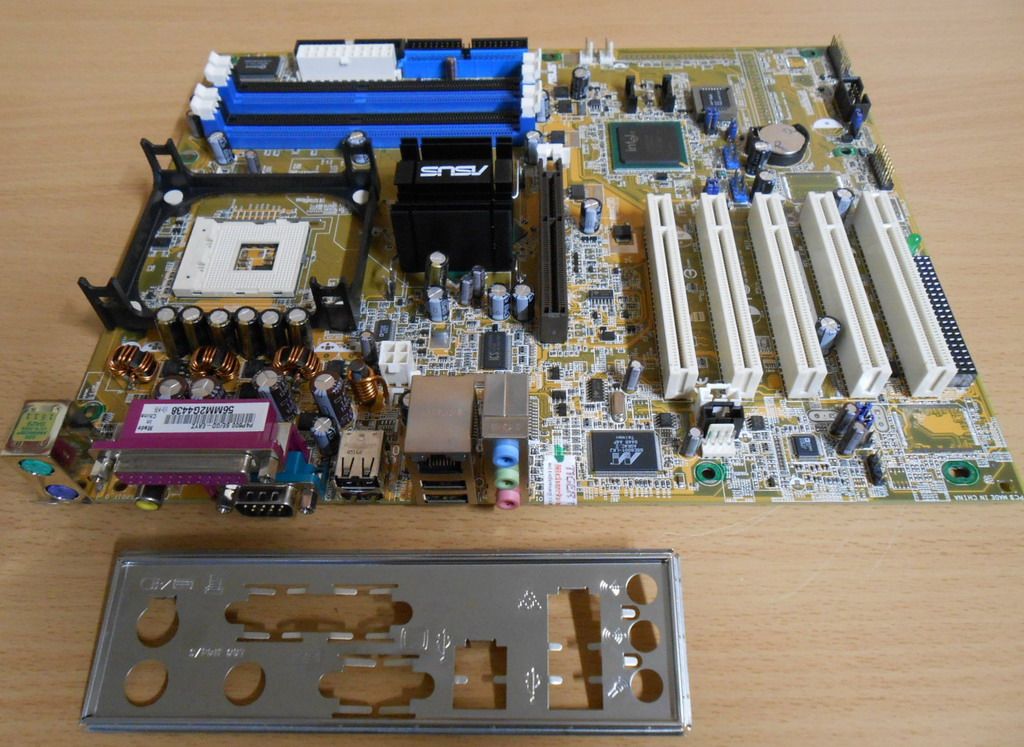

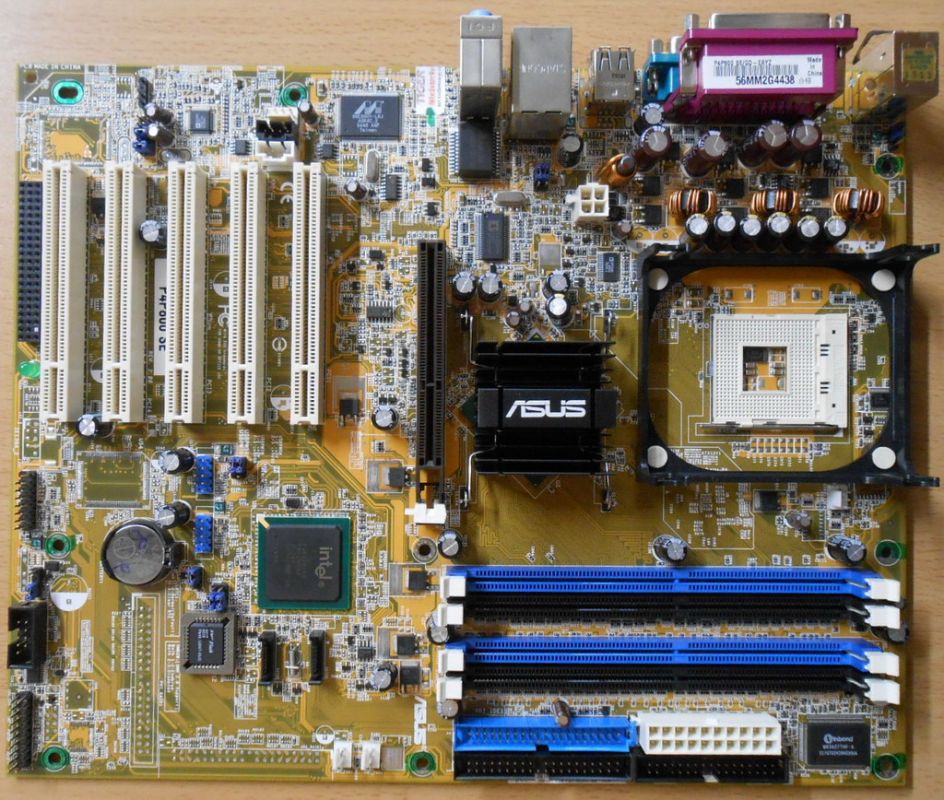

ASUS P4P800 SE Rev 2.00 Mainboard + Blende
ATX Sockel 478 SATA AGP 8X IDE DDR
Technische Daten
CPU
Socket 478 for Intel® Pentium® 4/Celeron with speeds up to 3.2GHz+
Supports Intel® Hyper-Threading technology
Supports Intel® Prescott CPU
Chipset
Intel 865PE
Intel ICH5R
Front Side Bus (FSB)
800/533/400 MHz
Memory
Dual-channel memory architecture
4 x 184-pin DDR DIMM sockets for up to 4GB unbuffered non-ECC DDR400/333/266 SDRAM memory
ASUS Hyper-Path Technology
Expansion slots
1 x AGP 8X (0.8V, 1.5V only)
5 x PCI
1 x ASUS WiFi slot for optional wireless LAN upgrade
Storage
ICH5R SouthBridge supports
- 2 x UltraDMA 100/66/33
- 2 x Serial ATA with RAID 0, RAID 1 function
AI Audio
ADI AD1985 SoundMAX® 6-channel CODEC
Audio Sensing and Enumeration Technology
S/PDIF out interface support
LAN AI Net
Marvell® 88E8001 Gigabit Ethernet controller
Virtual Cable Tester (VCT) Technology support
AI Bios
ASUS CrashFree BIOS2
ASUS Q-Fan Technology
AI Overclocking
Intelligent CPU frequency tuner
ASUS JumperFree
CPU, Memory and AGP voltage adjustable
SFS (Stepless Frequency Selection) from 100MHz up to 400MHz at 1MHz increment
Adjustable FSB/DDR ratio. Fixed AGP/PCI frequencies
ASUS C.P.R. (CPU Parameter Recall)
Special features
Power Loss Restart
S/PDIF out interface support
Rear panel I/O
1 x Parallel port
1 x Serial port
1 x S/PDIF output port
1 x PS/2 keyboard port
1 x PS/2 mouse port
4 x USB 2.0 ports
1 x RJ-45 port
6-channel audio I/O ports
Internal I/O
2 x USB 2.0 connector for 4 additional USB2.0 ports
Serial port 2 (COM2) connector
CPU/Power/Chassis fan connectors
20-pin/4-pin ATX 12V power connectors
Chassis intrusion
GAME/MIDI connector
S/PDIF Out connector
CD/AUX/Modem audio connectors
Front panel audio connector
Front Panel connector
BIOS features
4Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ASUS EZ Flash, ASUS Instant Music, ASUS MyLogo2, ASUS C.P.R., ASUS Multi-Language BIOS
Industry standard
PCI 2.2, PCI 2.3, USB 2.0
Manageability
WfM 2.0, DMI 2.0, WOL, WOR, chassis intrusion
Form Factor
ATX form factor: 12 in x 9.6 in (30.5 cm x 24.5 cm)
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
