Products description

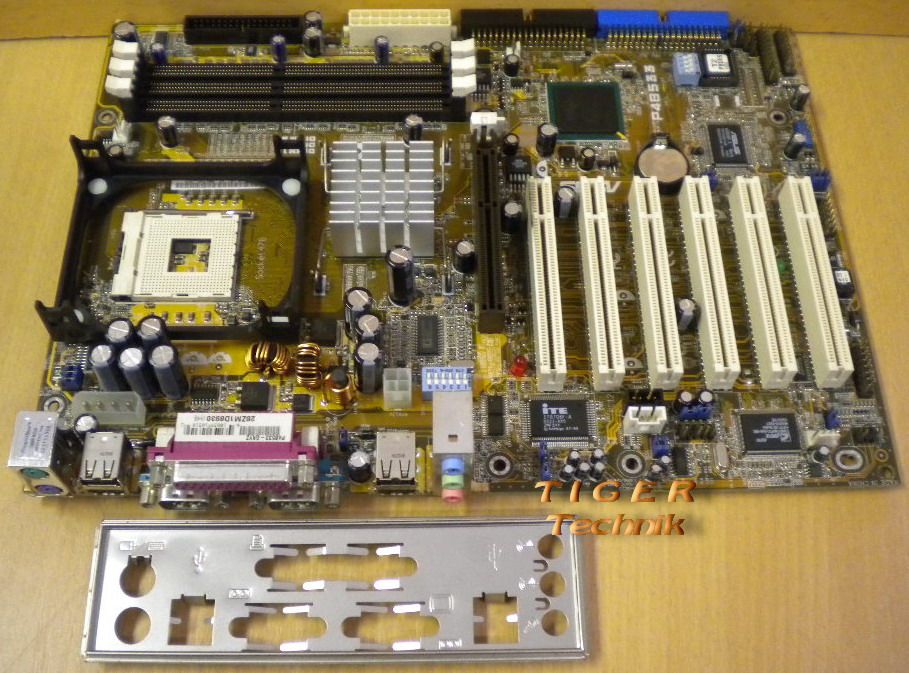

Asus P4B533 Rev 1.04 Mainboard + Blende
Technische Daten:
Max Mainboard Size: ATX
Chipset Type: Intel 845E, Intel 845E
Max Bus Speed: 533 MHz
Processor Socket: Socket 478
Compatible Processors: Pentium 4
Width: 12 in
Depth: 8.6 in
Manufacturer: Asus
Supported RAM
Max Size: 2 GB
Technology: DDR SDRAM
Bus Clock: 200 MHz, 266 MHz
Speed: PC1600, PC2100
Data Integrity Check: non-ECC
Supported RAM Integrity Check: Non-ECC
Storage Controller
Controller Interface Type: ATA-100
Processor / Memory
Signal Processor: CMI-8738 MX
Expansion / Connectivity
Storage Interfaces: ATA-100 - connector(s): 2 x 40pin IDC, ATA-100 - connector(s): 2 x 40pin IDC
Internal Interfaces:
1 x floppy
1 x audio - 4 pin MPC
2 x audio - 4 pin MPC, 1 x floppy
1 x audio - 4 pin MPC
2 x audio - 4 pin MPC
Audio
Type: 6-channel
Audio Codec: CMI8738 MX
Audio Output
Sound Output Mode: 5.1 channel surround
Features
BIOS Type: Award
BIOS Features: ACPI support, APM support, DMI 2.0 support, JumperFree, Multilingual BIOS, SMBIOS 2.3 support, WfM 2.0 support
Manual Settings: AGP slot voltage, CPU frequency, FSB ratio (CPU:memory), memory voltage, processor core voltage
Hardware Monitoring: CPU core temperature, CPU core voltage, CPU fan tachometer, chassis fan tachometer, chassis temperature, power supply fan tachometer, power supply temperature, system voltage
Sleep / Wake Up: RTC (real-time clock) wake up, keyboard wake up, mouse wake up, suspend to RAM (STR), wake on LAN (WOL), wake on PCI device, wake on modem (WOM), wake on ring (WOR)
Hardware Features: ASUS Q-Fan, EZ Plug, chassis intrusion detection
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
