Products description

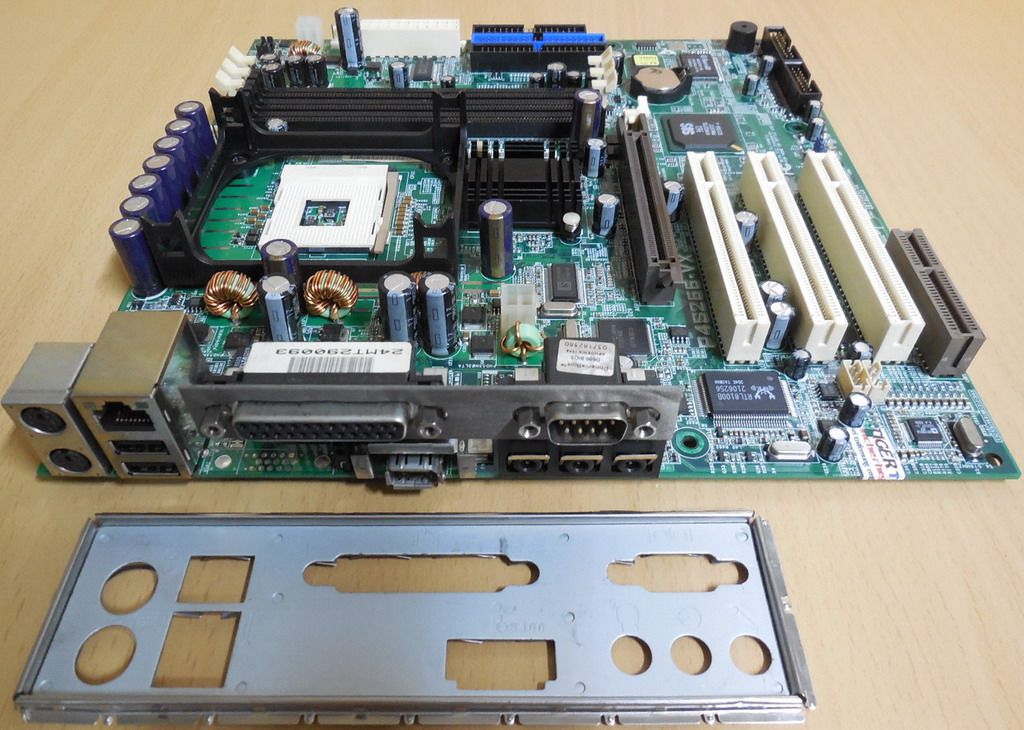

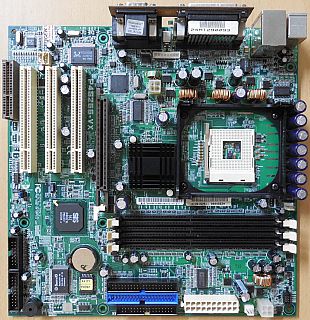

Asus P4S266-VX Rev 1.03 Mainboard + Blende Sockel 478 SiS 650 DDR Sony Vaio
Technische Daten
Hersteller Asus für Sony Vaio
Model P4S266-VX Rev 1.03
Processor Supports Intel® Pentium® 4 (Northwood) an PGA478 socket with a 400 MHz system bus
Chipset SiS® 650
Memory 3 x 184-pin DDR1 SDRAM Dual Inline Memory Module (DIMM) sockets
Expansion Capabilities
1 x AGP connector
3 x PCI bus connectors
1 x AMR connector
Audio
Analog Devices AD1881A AC´97 2.1 Audio Codec
USB
Support for max. 4 USB devices
LAN
Realtek RTL8100B 10/100 Mbits/sec Ethernet LAN
Internal I/O
2 x IDE Connectors
1 x FDD Floppy Disk Connector
1 x USB2345 Connector for additional ports
1 x IEEE1394 Firewire Connector for one additional port
1 x Buzzer
1 x 3-Pin CPU FAN Connector
1 x 3-Pin Power FAN Connector
1 x CMOS Jumper
1 x CD-IN Connector
1 x PANEL1 Front Panel Connector
1 x AUX Connector
1 x 20-pin ATX Mainboard Power Connector
1 x 4-pin ATX 12V1 CPU Power Connector
1 x 4-pin ATX 12V2 CPU Power Connector
Rear I/O
1 x PS/2 Keyboard
1 x PS/2 Mouse
2 x USB
1 x LAN
1 x IEEE1394 Firewire
1 x Seriell (COM)
1 x Parallel
3 x 3,5 mm Klinke Audio Anschlüsse (Line-IN/OUT, Microphone)
BIOS
Phoenix® BIOS
Form Factor
microATX (9.60 inches by 9.60 inches); ca. 244 mm x 244 mm
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
