Products description

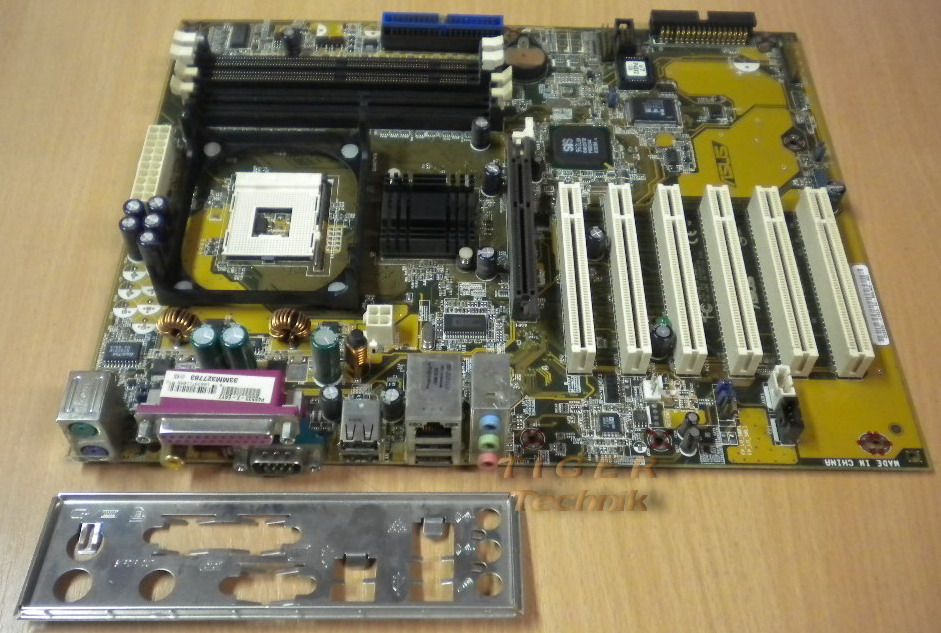

Asus P4S533-X Rev1.01 Mainboard + Blende
Sockel 478 LAN Audio SDRAM oder DDR
Technische Daten
CPU
Socket 478 for Intel® Willamette/Northwood Pentium® 4 processors that supports up to 3.06+ GHz
Supports Intel® Hyper-Threading Technology
Chipset
SiS® 645DX+ SiS® 962L
Front Side Bus (FSB)
533/400 MHz
Memory
2 x 184-pin DIMM sockets support for PC2700/2100/PC1600 non-ECC DDR DIMMs for up to 2GB memory
Wahlweise nur DDR-RAM oder SD-RAM seperat nutzbar!
2 x 168-pin DIMM sockets support for PC133/PC100 non-ECC SDRAM DIMM for up to 2GB memory
Expansion slots
1 x AGP 4X (1.5V only)
6 x PCI
IDE
2 x UltraDMA 133/100/66/33 connectors
Audio
ADI AD1980 6-channel CODEC
S/PDIF out interface
LAN
Realtek 8201BL PHY
Special features
ASUS JumperFree; ASUS MyLogo; ASUS EZ Flash; C.P.R.; CrashFree BIOS; Wake-On-LAN, Wake-On-Ring; Suspend-to-RAM
USB 2.0
max. 6 USB ports
Rear Panel I/O
1 x Parallel port
1 x COM port
1 x PS/2 keyboard port
1 x PS/2 mouse port
4 x USB 2.0/USB 1.1 ports
1 x RJ-45 port (optional)
1 x S/PDIF out
Line In/Line Out/Microphone ports
Internal I/O
1 x USB 2.0/1.1 connector for 2 additional USB 2.0 ports
CPU/Chassis fan connectors
20-pin/4-pin ATX 12V power connectors
CD/AUX audio connectors
GAME/MIDI connector
Front panel audio connector
COM2 connector
BIOS features
2Mb Flash ROM, Award BIOS, TCAV, PnP, DMI2.3, SM
BIOS 2.3, CrashFree BIOS, ASUS EZ Flash
Industry standard
PCI 2.2, USB 2.0
Manageability
DMI 2.3, WOL/WOR by PME
Form Factor
ATX form factor: 12 in x 9.6 in (30.5 cm x 24.4 cm)
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
