Products description

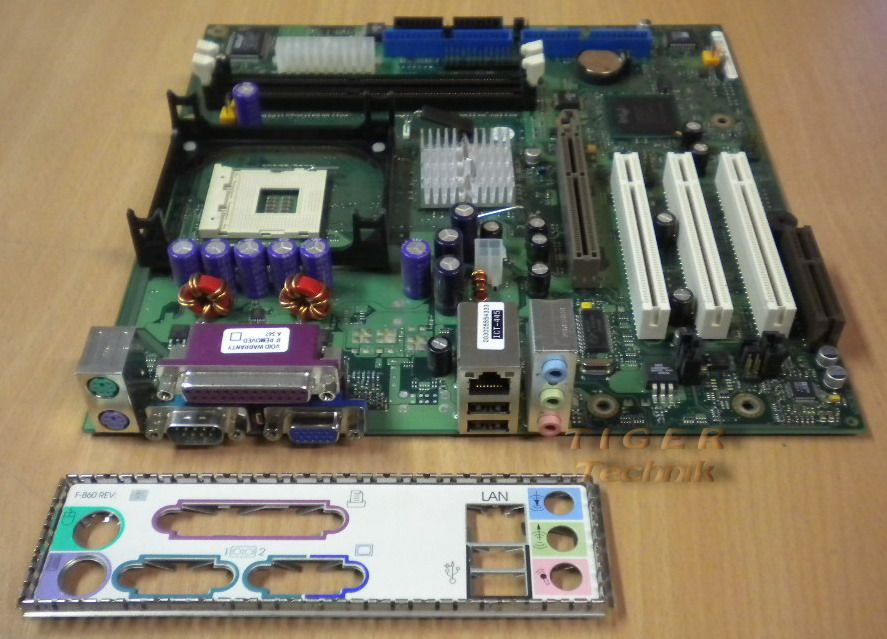

FSC D1520-A13 GS 2 Mainboard + Blende
Technische Daten
Chipset: i845GE
Board size: μ-ATX
VGA: ja
Audio / 6-channel / S/PDIF: ja / ja / ja
Buzzer / int. Speaker Support: ja / nein
LAN / with Alert-on-LAN: ja / nein
HI-SPEED USB 2.0: ja
Internal ports:
DIMM Sockets (DDR 333 SDRAM, PC2700): 2
AGP Slot (2/4x, 32 bit, 66 MHz, 1.5 V): 1
PCI slot (32 bit, 33 MHz, 5 V and 3.3 V): 3
CNR Slot (Type A, AC‘97 only): 1
IDE Interface (Ultra DMA/100): 2
Floppy Interface (up to 2.88 MB): 1
CD / AUX audio input: 1 / -
Frontpanel Audio (headphone, microphone): 1
USB Ports* (2.0, ~480 Mb/s): 4
Serial Ports* (FIFO, 16550 compatible): 1
Fan Connectors PSU** / FAN1 / FAN2 / FAN3: - / 1 / 1 / -
Power Connectors ATX / ATX12V / AGP PRO: 1 / 1 / -
External ports
VGA: 1
Audio Mic. in / Line in / Line out (2 x 0,5 W / 8 Ω): 1 / 1 / 1
LAN (RJ-45): 1
PS/2 mouse/keyboard: 1 / 1
USB Ports (2.0, ~480 Mb/s): 2
Serial Ports (FIFO, 16550 compatible): 1
Parallel Port (EPP/ECP): 1
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
