Products description

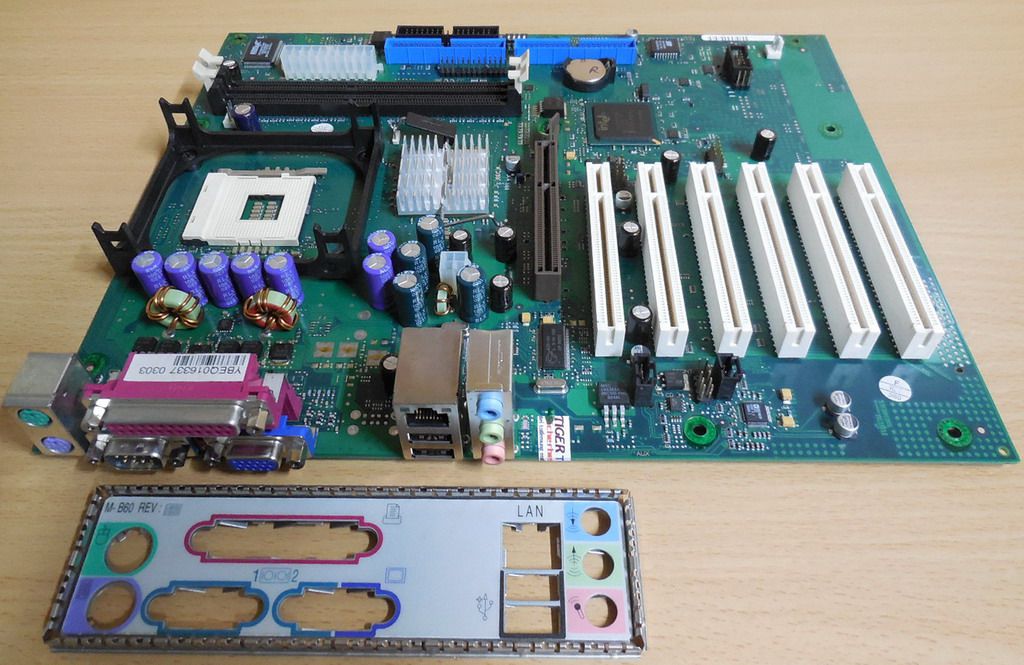

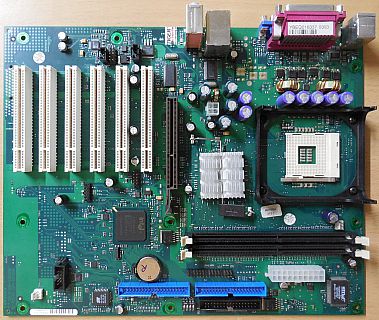

Fujitsu Siemens D1526-A11 GS2 Mainboard + Blende Sockel 478 DDR VGA LAN Audio
Technische Daten
Hersteller Fujitsu Siemens Computers
Model D1521-A11 GS2
CPU-Unterstützung
Intel® Pentium® 4 Processors, mPGA 478, 533/400 MHz FSB
Intel® Celeron® Processors, mPGA 478, 400 MHz FSB
(For details on supported processors please refer to the Fujitsu Website)
Sockel Intel 478
Chipsatz Intel 845GE
RAM 2 x DIMM Sockets 184-Pin (2.5 V), 32MB - 2GB, DDR333/266 SDRAM (PC2700/2100), unbuffered, no ECC
Graphics Integrated Intel® Extreme Graphics, 2D/3D Graphics Controller, 256 Bit, 120 Hz max. Refresh Rate, 2047x1536x16 max. Resolution, 350 MHz RAMDAC, Dynamic Video Memory Technology
upgradeable with AGP Graphics Card or ADD Cards to add support for digital displays or TV Out, DDC 2B Support for Monitor Detection
LAN Intel® LAN Ethernet Controller 82562 ET with 10/100 Mbit/s, Wake-on-LAN (WoL) by interesting Packets, Link Status Change and Magic Packet™, bootix® BootP or bootix® PXE Support
Audio Analog Devices AD1981B, AC ‘97 Audio, HW 3D Stereo Enhancement, SW Soundblaster Emulation (Win98/WinME/Win2000) Support, SW Wavetable Synthesis Support, S/PDIF 5.1
Erweiterungssteckplätze 1x AGP (2x/4x; 32Bit; 66MHz); 6x PCI (32Bit; 33MHz; 5V and 3.3V)
Intern Echtzeituhr/Kalender mit Batteriepufferung
2 x ATA100 Interfaces up to 4 IDE Drives
1 x Diskettenlaufwerksschnittstelle (Floppy Interface up to 2.88MB)
1 x CPU FAN Connector
1 x AUX1 Connector
2 x USB2.0-Anschluss Header für 4 weitere USB2.0 Ports, z.B. via Blende
1 x 20-pin ATX Power Connector
1 x 4-pin 12V Processor Supply Connector
1 x Interner Speaker Anschluss
1 x Front System Panel Connector
1 x Front Audio Panel Connector
1 x SPDIF (5.1 digital Audio) Connector
1 x CD_In Connector
1 x COM2 (COM B) Connector
Externe Anschlüsse 1x VGA Sub-D; 1x PS/2 Maus, 1x PS/2 Tastatur, 1x Parallel; 1x Seriell, 1x LAN, 2x USB2.0, 1x Line-In, 1x Line-Out, 1x Mic
Phoenix NuBIOS Version 4.06 modified and adapted by Fujitsu Siemens Computers
SM-BIOS (DMI), BIOS Update via disk, Quick Boot, Logo Boot, Quiet Boot (Silent Screen), Plug & Play, Automatic DRAM and PCI Configuration, Advanced Power Management ACPI S4 (Save-to-Disk), ACPI S3 (Save-to-RAM)
Security Features
Recovery BIOS, System and BIOS Password, Boot and/or Write Protection for Floppy Disk Drive, Boot Sequence Control for each Floppy and IDE Drive, Serial and Parallel Port Access Protection, Boot Sector Virus Warning, Write Protection for Flash BIOS
Special Features
Silent Drives Noise reduction for optical and hard disk drives
Recovery BIOS Restores a corrupted BIOS
Desk Update Simple driver update with DU CD
Multi Boot Comfortable boot from any boot device
USB Security Access protection with Fujitsu Siemens Computers Memory Bird
Formfaktor ATX ca. 304.8 mm x 243.8 mm
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
