Products description

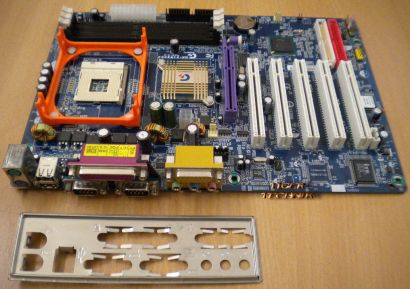

Gigabyte GA-8IR2003 Rev. 2.0 UDIMM 266MHz
Meinboard + Blende
Specification
CPU
Socket 478 for Intel® Pentium®4 processor
400 MHz FSB
Chipset
Intel® 845 MCH
Intel® ICH2
Realtek ALC650
Memory
3 x 184-pin DDR DIMMs
Supports up to 2GB of DDR 200/266 memory
Internal I/O Connectors
1 x FDD
2 x UDMA ATA 100/66 Bus Master IDE
1 x USB 1.1 connector (2 ports by cable)
2 x cooling fan pin headers
CD / AUX in
Expansion Slots
1 x AGP 4X, supports 1.5V display card only
5 x PCI (PCI 2.2 compliant)
Back Panel Connectors
2 x USB 1.1 ports
1 x LPT, 2 x COM ports
Audio (1 x Line-in / 1 x Line-out / 1 x MIC) connector
PS/2 Keyboard/Mouse connector
1 x Game / Midi port
CPU/AGP/DIMM setting CPU FSB / Multiplier adjustable via BIOS
Power
ATX power connector and ATX 12V connector
Power-off by Windows 98/ Me/ NT/ 2000/ XP shut down and switch
Form Factor ATX 29.5 x 19.6 cm
BIOS 2M bit flash ROM
Other Features
IDE, SCSI, LS120, ZIP, CD-ROM and USB bootable
Suspend to RAM (STR)
Supports USB KB / MS wake up from S3
Poly fuse for keyboard over-current protection
@BIOS™, EasyTune™ 4, Q-Flash™, GMC™
Audio Realtek ALC650 Audio
Rear panel ports:
1 x Audio Line-in
1 x Audio Line-out
1 x Audio Mic-in
1 x Game/Midi
1 x Keyboard/Mouse PS/2
1 x Parallel
2 x Serial
2 x USB 1.1
Lieferumfang
Gigabyte GA-8IR2003 Meinboard + Blende - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
