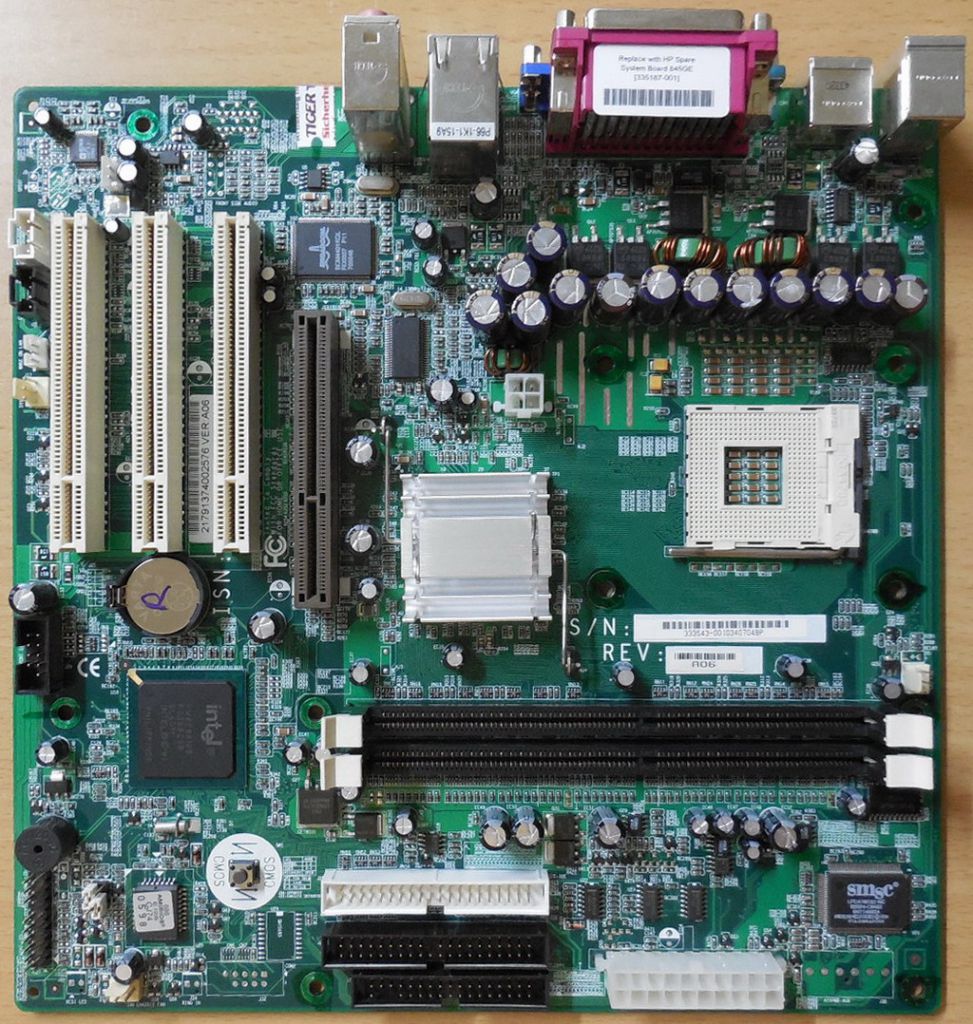

HP 335187-001 Rev. A06 Mainboard + Blende für HP/Compaq D230 MT Lite-On NR138 Sockel 478 LAN VGA AGP
HP Standard ist ohne Retentionmodul. Entweder in Verwendung mit einem originalen HP D230 Systemlüfter oder durch den Einsatz eines Retentionmoduls nutzbar.
Technische Daten
HP P/N 335187-001
Weitere Bezeichnungen NR138 Rev. A06
CPU
Intel Celeron with 400MHz FSB and 128KB L2 Advanced Transfer Cache (2.0/2.1/2.2GHz)
Intel Pentium 4 with 533MHz and 512KB L2 Advanced Transfer Cache (2.4/2.66/2.8GHz)
Chipset
Intel 845GE chipset
Memory
2 x DDR SDRAM PC-2100(266MHz) / PC-2700(333MHz); maximal 2GB non-ECC Memory
Grafik
integrated Intel Extreme Graphics
Expansion Slots
3 x PCI slots (32-bit; 33MHz; full height)
1 x AGP 4x slot
Storage
2 x Ultra ATA/100 IDE ports support up to 4 IDE devices
1 x Floppy Disk Drive port
Audio
Analog Devices ADI1981B AC´97 Audio Codec
LAN
Broadcom® BCM 4401 10/100Mbps Fast Ethernet Controller
Back Panel I/O ports
1 x PS/2 Keyboard port
1 x PS/2 Mouse or Pointing Device port
4 x USB2.0 ports
1 x RJ-45 LAN port
1 x VGA Sub-D port
1 x Parallel port
1 x Serial port
1 x Audio ports (Line-In, Line-Out, Microphone)
Internal I/O
1 x 20-Pin ATX Mainboard connector
1 x 4-Pin 12V CPU connector
1 x 3-Pin CPU FAN connector
1 x 3-Pin Chassis FAN connector
1 x 3-Pin System FAN connector
2 x IDE connector
1 x FDD connector
1 x CMOS Switch
1 x J10 Mono Out connector
1 x JP1 Jumper
1 x JP2 Jumper
1 x Front Panel connector
1 x CD_In connector
1 x AUX connector
1 x USB2.0 header for 2 optional USB2.0 ports
1 x Wake-On-LAN connector
1 x Buzzer
Formfactor
Micro-ATX; ca. 244 mm x 244 mm
Lieferumfang

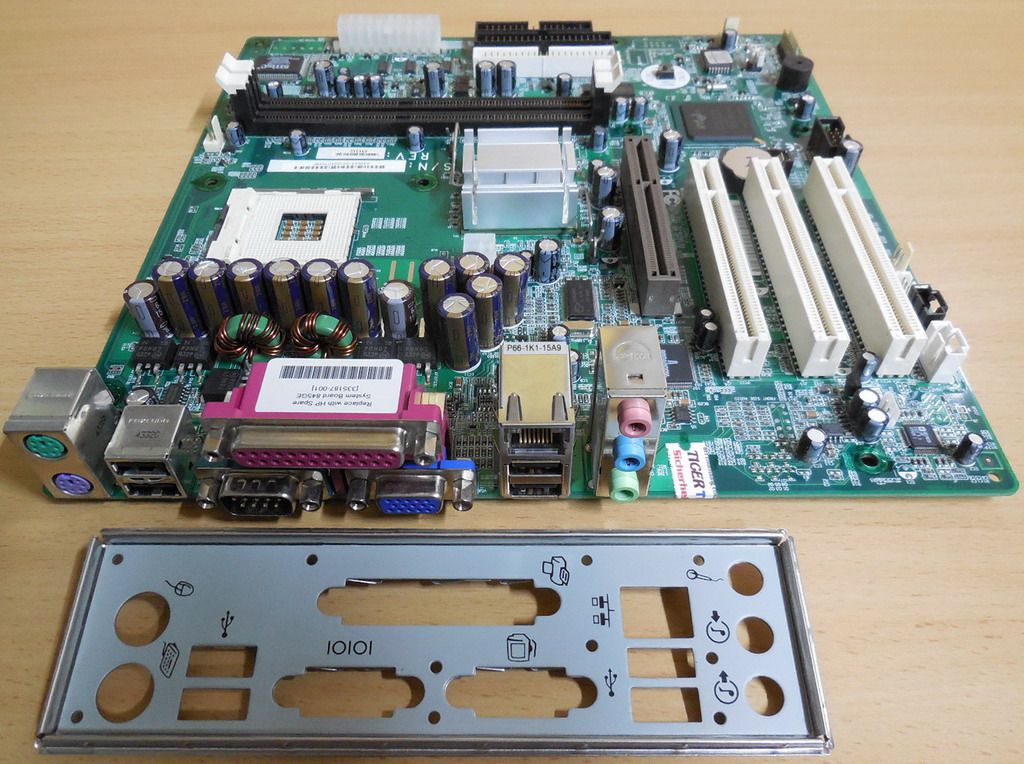

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
