Products description

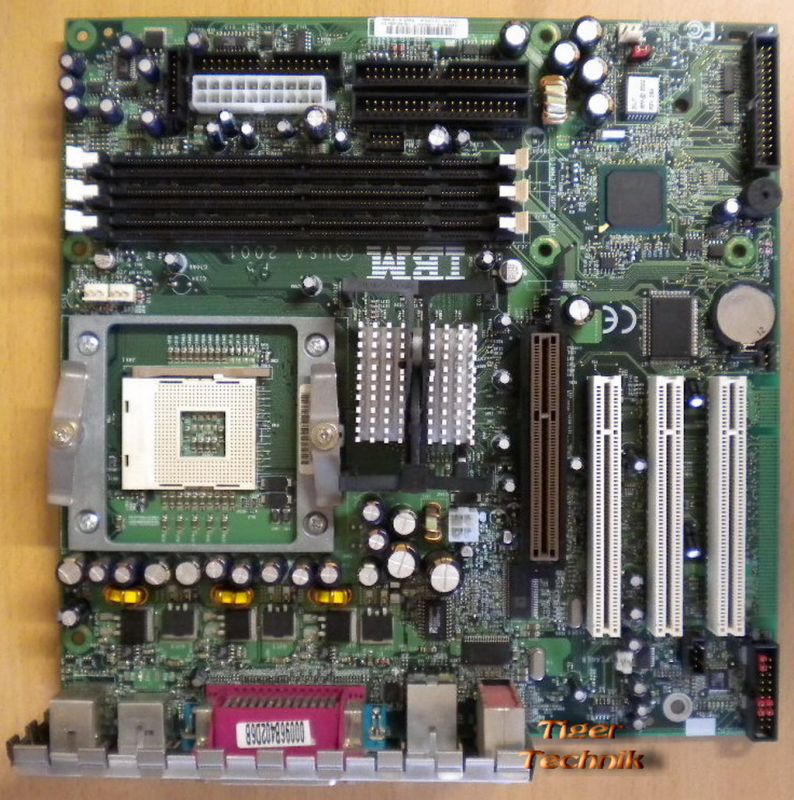

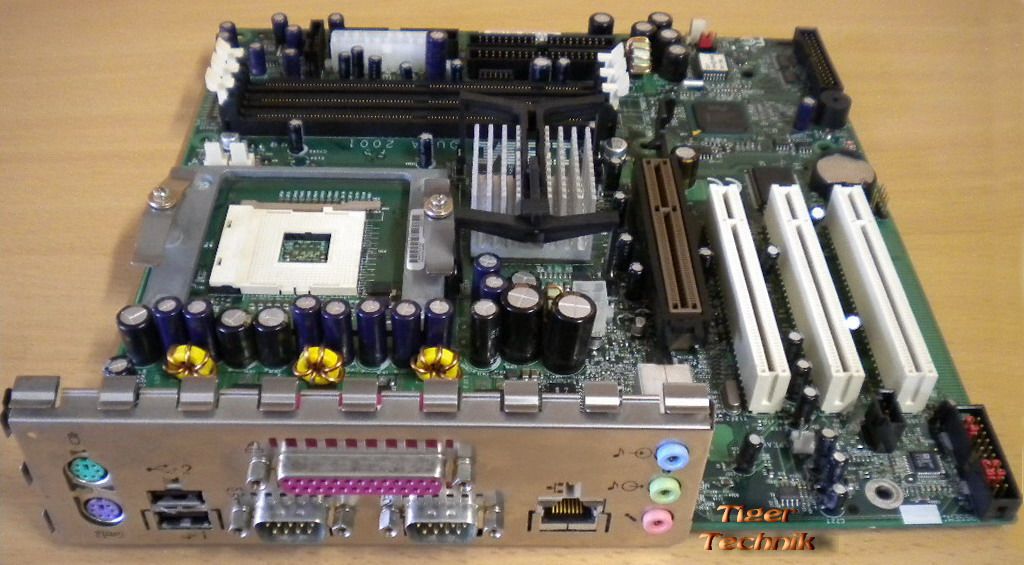

IBM FRU 49P4384 Mainboard + Blende
z.B. für NetVista M41, 6792, 6794 oder baugleich
Technische Daten
System board / Form factor
mATX
Processor
Intel® Celeron® with FSB400
Intel® Pentium® 4
Pentium 4 technology is the latest Intel family of processors running at 400MHz on a front side bus with SSE2** (Streaming SIMD Extensions 2) and NetBurst Technology.
Pentium 4 features include:
400MHz system bus (100MHz quad-pumped)
Up to 3.2GB/sec data transfer rate
Intel NetBurst micro-acrhitecture
A 512KB, on-die L2 advanced transfer cache
Chipsets
Intel 845 chipset
IDE controller
Enhanced Local Bus IDE controller, ATA 100 IDE device support
Supports up to four IDE devicesMemory
Total of three memory sockets
Memory type: Industry standard PC 133 SDRAM memory DIMMs
Maximum system memory supported is 1.5 GB
Audio
Integrated PCI AC'97 Audio Controller
Keyboard and mouse
1x PS/2 Keyboard
Networking
Integrated 10/100 Fast Ethernet with Wake on LAN
External ports
Four USB (2x rear/2x front)
One Ethernet RJ-45
Two serial 9-pin 16550 compatible
One parallel 25-pin (EPP, ECP), IEEE 1284
Keyboard and mouse ports
Audio line in, headphone out, and microphone in jacks
Slots
One AGP 4X Slot
Three PCI Slots
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
