Products description

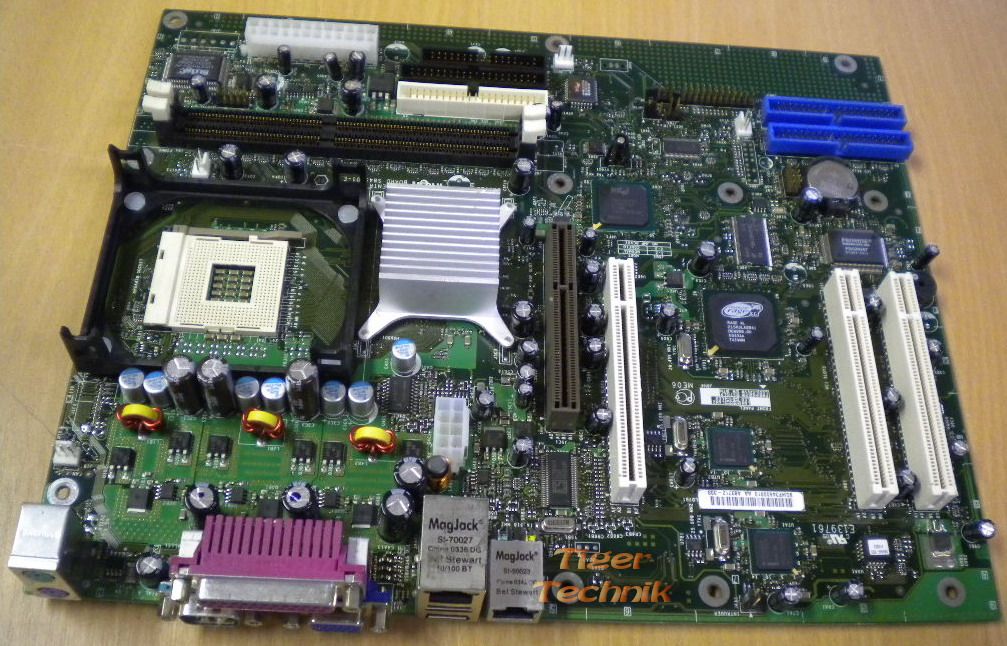

Intel Entry Server Board S845WD1-E A83712-303
Technische Daten:
· 400/533 MHz System Bus
· Intel® 845E chipset
- Intel® 82845E Memory Controller Hub (MCH)
- Intel® 82801BA I/O Controller Hub (ICH2)
- Intel® 82802AB 4 Megabit Firmware Hub (FWH)
· Support for single-sided or double-sided DIMMs (DDR 200 and DDR 266) providing up to 2 GB system memory with two 184-pin DDR SDRAM Dual Inline Memory Module (DIMM) sockets.
· One AGP bus with AGP connector:
- One AGP connector supporting 1.5 V 4X AGP cards
· One independent PCI bus (32-bit, 33 MHz, 5 V) with three PCI connectors and four embedded devices:
- 2D/3D graphics controller: ATI Rage* XL Video Controller with 8 MB of SDRAM
- Two Intel10/100 82550PM Fast Ethernet Controllers
- ATA-100 controller: Promise Technology* PDC20267
· LPC (Low Pin Count) bus segment with one embedded device:
- SMSC LPC47M102 LPC Bus I/O controller controller chip providing all PC-compatible
I/O (floppy, serial, keyboard, mouse)
· X-Bus segment with one embedded device:
- Flash ROM device for system BIOS: Intel 32 megabit 28F320C3 Flash ROM
· Two external Universal Serial Bus (USB) ports with an additional internal header providing two optional USB ports for front panel support
· One serial port and one serial port header.
· One parallel port.
· Two IDE interfaces with UDMA 33, ATA-66/100 support
· Support for up to three system fans and one processor fan
· Server System Infrastructure (SSI)-compliant connectors for SSI interface support: frontpanel, power connector
· Hardware Monitor Subsystem:
- Voltage sense to detect out of range power supply voltages
- Thermal sense to detect out of range thermal values
- Four fan sense inputs used to monitor fan activity
Hier gehts zum Handbuch ---> http://www.andovercg.com/datasheets/intel-s845wd1-tps.pdf
Lieferumfang
Nur das Mainboard ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
