Products description

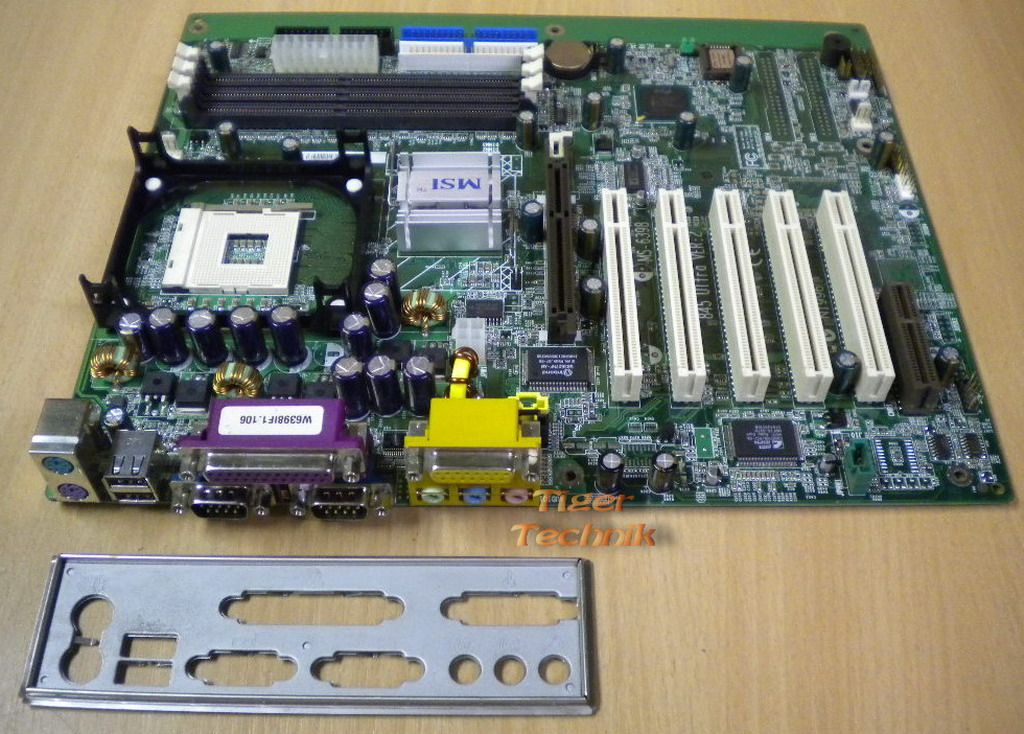

MSI MS-6398 845 Ultra Ver 2 FSC Mainboard + Blende
Sockel 478 AGP PCI CNR
Technische Daten
CPU
- Supports Intel® Pentium® 4 processor in 478 pin package.
- Supports 1.5GHz, 1.6GHz, 1.7GHz, 1.8GHz, 1.9GHz, 2GHz, 2.1GHz, 2.2GHz and up.
Chipset
Intel® 845 chipset (593 FC-BGA)
- Supports DDR SDRAM at 200/266MHz operation (DDR200/DDR266).
- AGTL+ host bus with integrated termination supporting 32-bit host addressing.
- 1.5V AGP interface with 4x data transfer and 4x fast write capability.
- 8-bit, 66MHz 4x hub interface to the Intel ICH2.
Intel® ICH2 chipset (360 EBGA)
- Upstream hub interface for access to the Intel MCH.
- 2-channel Ultra ATA/100 Bus Master IDE controller.
- USB controller 1.1 (expanded capabilities for 4 ports).
- I/O APIC.
- SMBus controller.
- FWH interface.
- LPC interface.
- AC'97 2.1 interface.
- PCI 2.2 interface.
- Integrated system management controller.
Main Memory
- Supports four memory banks using three 184-pin DDR DIMM.
- Supports up to 2GB PC2100/PC1600 DDR SDRAMs.
- Supports 2.5v DDR SDRAM.
Slots
- One AGP (Accelerated Graphics Port) 4x slot (1.5V only).
The AGP slot DOES NOT support 3.3V AGP card. Use of 3.3V AGP card may cause damage to the mainboard.
- Five PCI 2.2 32-bit Master PCI bus slots (support 3.3V/5V PCI bus interface).
- One CNR (Communication Network Riser) slot.
On-Board IDE
An IDE controller on the ICH2 chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA66/100 operation modes. Can connect up to four IDE devices.
USB Interface
- 4 USB 1.1 ports (Rear * 2/ Front * 2).
On-Board Peripherals
- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and2.88Mbytes.
- 2 serial ports (COM A + COM B).
- 1 parallel port supports SPP/EPP/ECP mode.
- 1 IrDA connector for SIR/ASKIR/HPSIR.
- 1 audio/game port.
Audio
- C-Media CMI8738 / PCI-4ch supports 2/4 ch speaker.
BIOS
- The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
- The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications.
Dimension
- Full ATX Form Factor: 30.5cm x 25cm.
Mounting
- 9 mounting holes.
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
