Products description

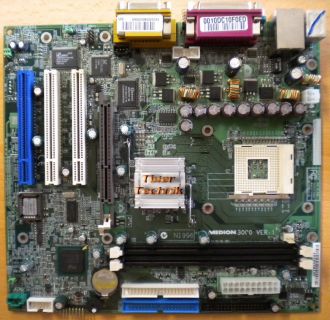

MSI MS-6399 Medion 3000 Ver.1 Mainboard + Blende
Sockel 478 Audio LAN AGP
Achtung, das Mainboard hat kein Medion Retention Modul und wird ohne Retention Modul verkauft!
Technische Daten
Hersteller: MSI für Medion
Model: MS-6399 (Medion 3000 Ver. 1)
CPU
Support Socket 478 for Intel® Pentium 4(FC-PGA2) processor; Support 1.3GHz, 1.4GHz and up to 2.XGHz
Chipset
Intel® Brookdale chipset
- AGP 4x/2x universal slot
- Support 100MHz FSB
- Support 400MHz Intel NetBurst micro-architecture bus.
Intel® ICH2 chipset (360 BGA)
- AC’97 Controller integrated
- 2 full IDE channels, up to ATA100
- Integrated 10/100Mbit/sec Etherent
- Low pin count interface for Winbond SIO
RAM
Support two 168-pin DIMM sockets;
Support a 32 to 1GB memory using 512Mbit technology; Max. memory size: 2GB
IDE
2 full IDE channels, up to ATA100, An IDE controller on the ICH2 chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 66/ 100 operation modes, Can connect to four IDE devices
LAN
Realtek 8100 single chip fast 10/100 Mb/s Ethernet controller; ACPI, APM supported
Erweiterungssteckplätze
1 x AGP (Accelerated Graphics Port) 2x/4x slot
2 x PCI 2.2 32-bit Master PCI Bus slots, the third PCI can support 2 Master devices; Support 3.3v/5v PCI bus interface
Externe Anschlüsse
1 x PS/2 Maus; 1 x PS/2 Tastatur; 1 x Parallel; 1 x Seriell; 1 x LAN; 2 x USB; 1x Game/Midiport; 4 x Klinke Audio Anschlüsse; 1 x SPDIF-In Coaxial; 1 x SPDIF-Out Coaxial
Interne Anschlüsse
1 x Floppy port (supports two FDD with 360KB, 720KB, 1.44MB and 2.88MB); 1 x CPU FAN connector; 1 x USB Connector; 1 x JAudio Connector; 1 x CMOS Jumper; 1 x Front Panel; 1 x SPDIF connector; 1 x COM connector; 1 x 20-pin System Power connector; 1 x 4-pin CPU Power connector
BIOS
The mainboard BIOS provides “Plug & Play” BIOS that can detect the peripheral devices and expansion cards installed on the board automatically
Support Desktop Management Interface (DMI) function that can record your mainboard specifications
Formfaktor
Micro ATX Form Factor (24.4cm x 22.4cm)
6 mounting holes
Lieferumfang
Das Mainboard ohne Retention Modul, aber mit I/O Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
