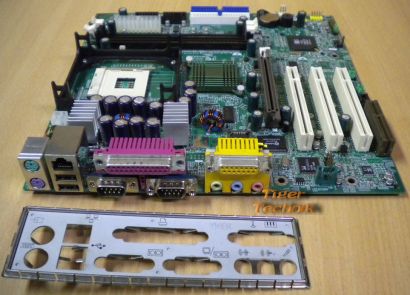

MSI MS-6533E Ver. 1 Mainboard
Sockel 478 PCI AGP CNR 2x Seriell + Blende
Technische Daten:
CPU:
Socket 478 for P4 processors (Willimate 478 and Northwood 478) with 400/
533 MHz (100/133MHz QDIR)
Core frequency from 1.7GHz to 2.53 GHz and up
Chipset:
SiS®645DX/650GX/651 HMAC/IGUI HMAC /IGUI HMAC (702 pin BGA)
- High performance host interface 400/533 (645 DX and 651 only) MHz
- Support 64-bit high performance DDR333 (645 DX and 651 only) /
DDR266/DDR 200 and PC133/100 memory controller
- Support AGP 4X/2X interface with fast write transaction
- High throughput SiS HyperZip connect to SiS962L/962 HyperZip Media
I/O
- High performance 2D/3D and Video Accelerator (650GX and 651 only)
- Complete TV-out/Digital flat panel solution and MPEG-2/1 Video
decoder (651 only)
SiS®962L/962 HyperZip Media I/O (371BGA)
- High performance HyperZip connect to Sis series NB
- Integrated multi-threaded I/O link ensures concurrency of up/down stream
data transfer with 1.2GB/s bandwidth
- Integrated HyperZip connect to PCI bridge
- Dual IDE Master/Slave controller
- Integrated USB 2.0/1.1 host controller and Fast Ethernet MAC controller
- Integrated audio controller with AC97 interface
- Advanced power management and PC2001 compliance
- Integrated RTC and DMA interrupt and keyboard controller
- Integrated PCI to LPCC bridge
- Integrated IEEE 1394 Host controller (SiS962 only)
Main Memory:
Supports four memory banks using two 184-pin unbuffered DDR DIMM.
Supports up to 2GB memory size.
Slots:
One AGP (Accelerated Graphics Port) 2X/4X slot.
Three PCI 2.2 32-bit PCI bus slots (support 3.3V/5V PCI bus interface).
One CNR (Communication Network Riser) slot.
On-Board IDE:
Dual IDE controllers integrated in Sis 962L/962.
Support P/O, Bus Master, Ultra DMA66/100/133 operation.
Can connect up to four IDE devices.
On-Board Peripherals:
- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and
2.88Mbytes.
- 2 serial ports (COM A + COM B).
- 1 parallel port supports SPP/EPP/ECP mode.
- 6 USB ports (2.0/1.1) (Rear * 2/ Front * 4).
- 1 IrDA connector for SIR.
- 1 RJ-45 LAN jack (optional).
- 1 audio/game port.
- 1 VGA port (650GX and 651only).
- 2 IEEE 1394 ports (optional).
Audio:
AC97 link controller integrated in SiS 962L/SiS 962.
2/6 channels software audio codec RealTek ALC201A/202A/ALC650.
- Compliance with AC97 v2.1 Spec.
- Meet PC2001 audio performance requirement.
LAN (optional):
PCI local bus single-chip Fast Ethernet Controller, RealTek RTL8101L.
- Integrated Fast Ethernet MAC and PHY in one chip.
- Supports 10Mb/s and 100Mb/s auto-negotiation operation.
- Compliance with PCI v2.2 and PC99 standard.
Supports Wake-On-LAN and remote wake-up.
Supports ACPI power management.
Modem (optional):
Supports MSI proprietary modem card MS-6961.
IEEE 1394 (SiS 962 only) (optional)
Compliant with IEEE 1394-1995 and 1394a-2000
Supports Serial Bus Data Rates of 100, 200 and 400 Mbits/s.Chapter 1
BIOS:
2Mb Award BIOS with PnP, ACPI, SMBIOS 2.3, Green and Boot Block.
Provides DMI2.0, WfM2.0, WOL, WOR, chassis intrusion, and SMBus for
system management.
Dimension:
Micro ATX Form Factor: 9.6” x 9.6”.
Mounting:
6 mounting holes.
