Products description

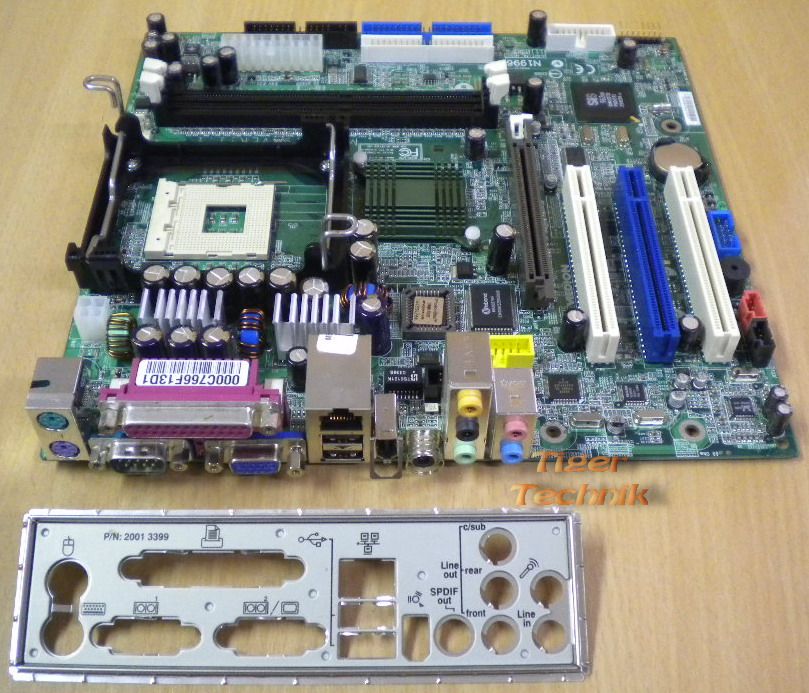

MSI MS-6719 Ver 1 Medion Mainboard + Blende
Sockel 478 AGP 8X PCI LAN VGA
Das Sockel 478 Mainboard mit Medion Retentionmodul von MSI für Medion PCs.
Nur in Verwendung mit einem Medion Kühler sinnvoll.
Technische Daten
Hersteller: MSI für Medion
Model: MS-6719 Ver. 1
Sockel: Intel 478
CPU: Supports Socket 478 for P4/Celeron processors (Willamette and Northwood core) with 400/533 MHz; Core Frequency from 1.3 GHz to 2.8 GHz and up
Chipsatz: SiS® 651 chipset, SiS® 962 chipset
RAM: Supports two 184-pin DDR DIMMs, Supports up to 2GB PC2700/2100/1600 DDR SDRAMs, Supports 2.5v DDR SDRAM
Interne Anschlüsse: One AGP (Accelerated Graphics Port) 4x/8x slot, Three 32-bit PCI bus slots (support 3.3v/5v PCI bus interface).
On-BoardIDE: Dual-IDE controller integrated in SiS 963 chipset, Supports PIO, Bus Master and Ultra DMA133/100/66/33 operation modes, Can connect up to four IDE devices
Anschlüsse: 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes, 1 serial port, 1 parallel port, 3 in vertical for 6 channels Line-out, 2 in vertical for MIC & Linein, 1 standard 1394 connector, 5 USB ports (3 front + 2 rear), 1 RJ-45 Lan Jack, PS2 KB/Mouse
Audio: S/W RealTek ALC650 6-channel audio codec with SPDIF in/out
LAN: Realtek RTL8201BL
BIOS: The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically. The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications.
Formfaktor: Micro-ATX (24.4 cm x 23.0 cm)
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
