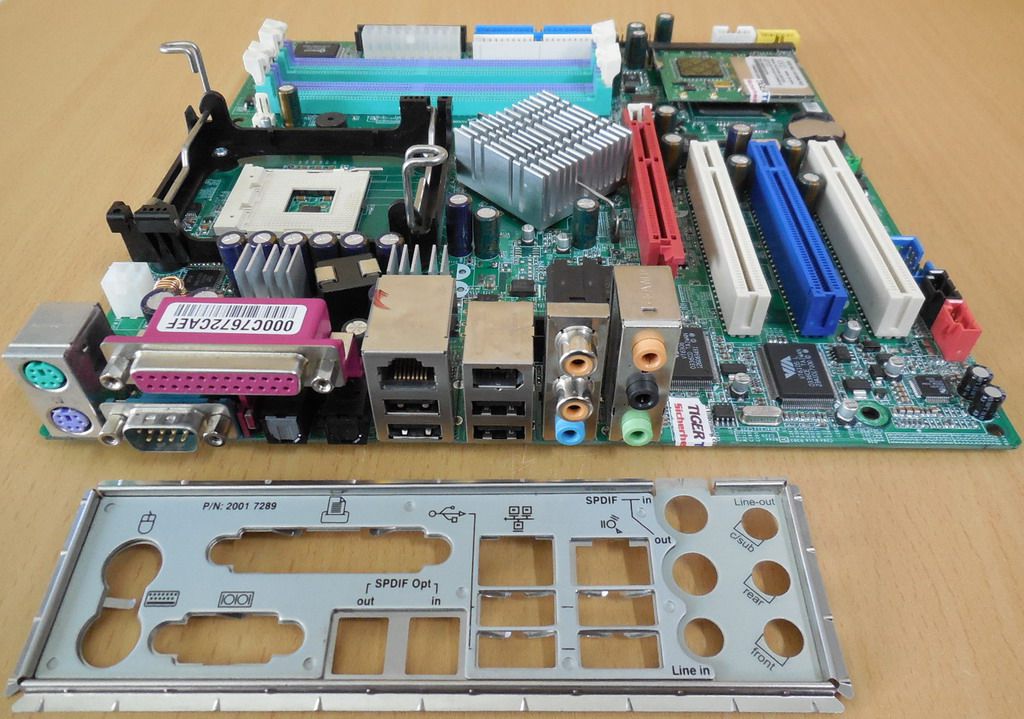

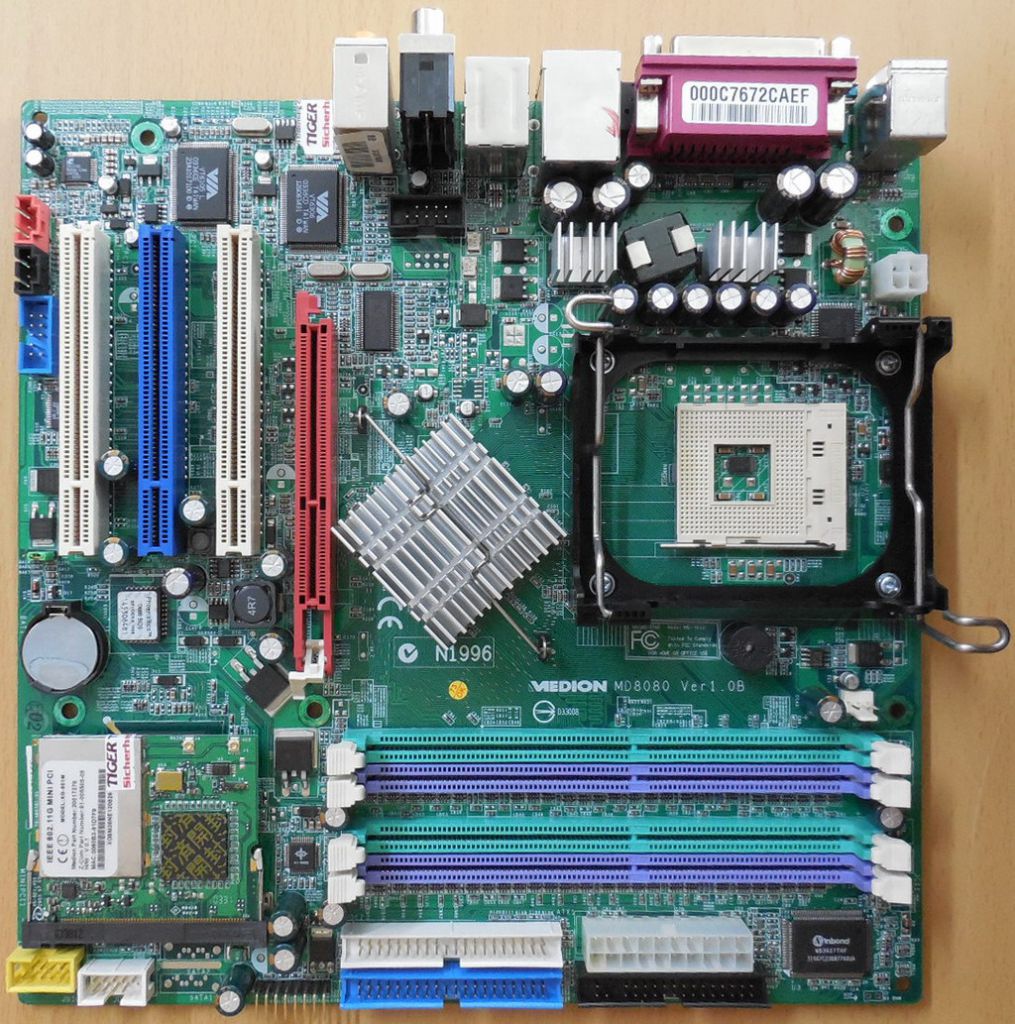

MSI MS-7012 Medion MD8080 Ver 1.0B Mainboard + Blende + Mini PCI WLAN Karte
Das Sockel 478 Mainboard mit Medion Retentionmodul von MSI für Medion PCs! Nur in Verwendung mit einem Medion Kühler sinnvoll.
Leider hat das Mainboard einen kleinen Teildefekt. Der PS/2 Maus Anschluss ist ohne Funktion. Daher hier vergünstigt angeboten! Das Mainboard lässt sich ansonsten mit einer USB Maus einwandfrei betreiben.
Technische Daten
CPU
Supports Socket 478 for Intel® Pentium 4 (Northwood/Prescott) processor
Supports up to 3.4 GHz P4 processor
Intel® Springdale-865PE chipset
Supports AGP 8x/4x at 0.8V (AGP 3.0) or 4x at 1.5V (does not support 3.3V!)
Supports 133/166/200MHz memory FSB
Supports 400/533/800MHz Intel NetBurst micro-architecture bus
Intel® ICH5 chipset (421 mBGA)
AC’97 2.3 interface
8 x USB 2.0/1.1 ports
2-channel Ultra ATA/100 Bus Master IDE controller
SMBus 2.0 support
Main Memory
Support eight memory banks using four 184-pin unbuffered 2.6V DDR DIMM
Max memory size is 4GB w/o ECC for (1GB/slot)
Slots
3 x 32-bit Master PCI Bus slot
1 x mini PCI slot (bestückt mit 54Mbit/s Mini PCI WLAN Karte 802.11G)
1 x AGP (Accelerated Graphic Port) slot
On-Board IDE
An IDE controller on the ICH5 chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA66/100/133 operation modes and can connect up to four IDE devices
Back Panel I/O Ports
1 x LAN (RJ45)
1 x Serial (COM A)
1 x Parallel (SPP/EPP/ECP mode)
1 x PS/2 Mouse (ohne Funktion)
1 x PS/2 Keyboard
1 x IEEE1394 Firewire
4 x USB2.0
1 x Vertical 6ch Audio ports (3 x Line-Out / 1 x Line-In)
1 x RCA_SPDIF In
1 x RCA_SPDIF Out
1 x Optical SPDIF In
1 x Optical SPDIF Out
Internal I/O Connectors
1 x mini PCI Slot
2 x JUSB2.0/1.1 connectors
1 x IEEE1394 connector
1 x JBAT1 CMOS Jumper
1 x 20-pin ATX Power connector
1 x 4-pin 12V CPU Power connector
1 x 3-pin CPU Fan connector
2 x IDE connectors
1 x Floppy Disk connector (supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes)
1 x Buzzer
1 x CD-In connector
1 x Front Audio Line-In connector
1 x Front Audio Panel connector
1 x Front Panel header
Audio
S/W C-Media 9761 5.1 channel with SPDIF IN / OUT
LAN
VIA® VT6105L Fast Ethernet LAN Controller
IEEE 1394
VIA® VT6306 PCI 1394a Integrated Host Controller
BIOS
The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications.
Dimension
M-ATX Form Factor; 24.38 cm (L) x 24.38 cm (W)
Mounting
6 mounting holes
Others
Support STR/STD
PC 2001 compliant
Lieferumfang
Das Mainboard inkl. Mini PCI WLAN-Karte + Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
