Products description

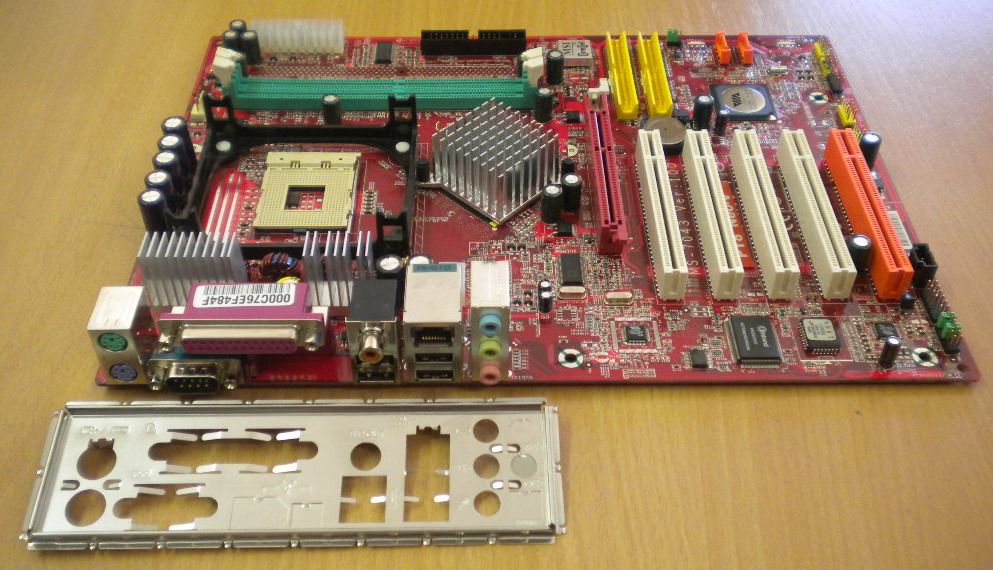

MSI MS-7043 V1.0 PT8 Neo-V
Mainboard + Blende S478 FSB800 AGP 8x
Technische Daten
CPU Supports Intel® P4 Northwood/Prescott (Socket 478) CPU´s
FSB 400 (Northwood only) 533, 800MHz
Supports up to 3.4GHz or higher
Chipset
VIA® PT800 chipset
- Supports FSB 800/533/400MHz
- Supports AGP 8X interface
- Supports DDR 400/333/266 memory interface
VIA® VT8237 chipset
- High Bandwidth V-link Client controller
- Integrated Faster Ethernet LPC
- Integrated Hardware Sound Blaster/Direct Sound AC97 audio
- Ultra DMA 66/100/133 master mode PCI EIDE controller
- ACPI
- Supports Serial ATA
- Supports USB2.0
Main Memory
Supports four memory banks using two 184-pin DDR DIMMs
Supports single-channel memory
Supports a maximum memory size up to 2GB
Supports 2.5v DDR SDRAM DIMM
Slots
1x AGP slot supports 8x/4x (AGP 3.0) at 1.5V (no 3.3V!)
5x 32-bit Master PCI bus slots (support 3.3v/5v PCI bus interface)
Onboard IDE
An IDE controller integrated in the VIA® VT8237 chipset
- Supports IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 66/100/133 operation modes
- Can connect up to 4 Ultra ATA drives
Onboard Serial ATA
Serial ATA/150 controller integrated in the VIA® VT8237 chipset
- Up to 150MB/sec transfer rate
- Can connect up to 2 Serial ATA drives
USB Interface 8x USB ports
- Controlled by VT8237 southbridge
- 4x ports in the rear I/O, 4x ports via the external bracket
On-Board Peripherals
- 1x floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes
- 1x serial port (COM A)
- 1x parallel port supports SPP/EPP/ECP mode
- 8x USB 2.0 ports (Rear x 4 / Front x 4)
- 1x RJ45 LAN jack
- 1x D-Bracket2 pinheader (Optional)
- 1x S-Bracket pinheader (Optional)
- 1x Line-In / Line-Out /Mic
- 1x Coaxial SPDIF out (Optional)
Audio AC97 link controller integrated in VT8237
- VIA® VT1617 6-channel audio codec
- Compliance with AC97 v2.2 Spec
- Meets PC2001 audio performance requirement
LAN
VIA® VT8237 integrated MAC
VIA® VT6103L 10/100 PHY
BIOS
The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically
The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications
Dimension
ATX Form Factor: 30.5cm x 19.5cm
Mounting
6 standard mounting holes
Lieferumfang
MSI MS-7043 Mainboard + Blende - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
