Products description

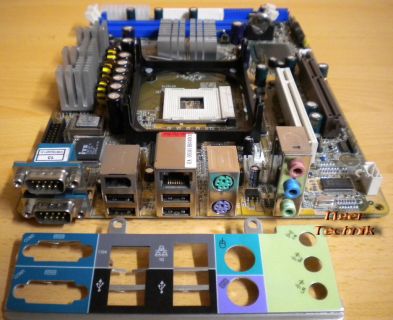

Shuttle XPC SB75G2- FB75-D33032
Intel Socket PGA478B Mainboard
- Mini aluminum barebone system
- Application range: as a high-end workstation or a server
- Socket 478 supports 400/533/800FSB and Hyper-Threading
New Version: Prescott-ready - Chipset: Intel 875P / ICH5R
- Low noise with ICE-Heatpipe Cooling
- Serial-ATA Raid, GigaBit network
- 1x AGP (8X), 1x PCI, 2x DDR400/333/266/200, 8x USB 2.0
- 6-channel audio with SPDIF in/out
Mainboard FB75
Note: Mainboard only available in conjunction with XPC SB75G2!
- Chipset:
Northbridge: Intel 875P, Southbridge: ICH5R
FSB: 800/533/400MHz
Socket 478 CPU support
Intel Pentium 4 processor for socket 478 with 800, 533 and 400MHz FSB
(Pentium 4 with Northwood core are supported, Willamette is not supported,
Prescott is supported since BOM 14 ) - Expansion slots:
1 x AGP (8X)
1 x 32 Bit PCI (v2.2) - IDE-Controller
Onboard IDE Controller ATA100
supports up to four IDE-drives - SATA RAID-Controller
Onboard Serial ATA150 RAID Controller
supports RAID-Levels 0 and 1 - Multimedia:
AC97 2.2 6-Kanal Sound
Connectors on the backpanel: 6-channel audio-out (analog: bass/center, rear, front), optical SPDIF in/out
Connectors on the frontpanel: microphone, line-in, line-out
More line-ins on the mainboard for SPDIF, CD-ROM and AUX. - Networking:
Ethernet: 10/100/1.000 MBit - Backpanel connectors:
1 x PS/2-Mouse
1 x PS/2-Keyboard
2 x Serial
1 x RJ45 (GigaBit LAN)
4 x USB 2.0 (total 8)
1 x Firewire
Connectors on the backpanel: 6-channel audio out (analog: bass/center, rear, front),
Optical SPDIF in- and output - Onboard connectors:
1 x Floppy drive (up to 2,88 MB)
2 x IDE (ATA-100)
4 x USB 2.0 (2 of it for the frontpanel, 2 for intern. 4 more on the backpanel, total 8)
1 x SPDIF (in and out)
2 x Audio frontpanel connectors (microphone and line-out)
1 x CDROM Audio input
1 x AUX
1 x Infrared interface
3 x Fan (CPU, AGP, Case) - Memory:
2 x 184-Pin for Dual Channel PC1600 (DDR200), PC2100 (DDR266), PC2700 (DDR333) or PC3200 (DDR400)
unbuffered DDR SDRAM memory with 100 or 200MHz clock frequency up to 2GB capacity - Hardware monitoring:
CPU-temperature, voltage and fan revolution - Power Management
ACPI Version 1.0 (Advanced Configuration and Power Interface)
supports power saving modes: S1 (Snoop), S3 (Suspend to RAM), S4 (Suspend to DISK), S5 (Soft-Off)
On/Off buttons with two functions: Suspend mode/ soft out
Power on after power failure - BIOS
Award V6.0PG PnP Green BIOS
stored in 4MBit Flash memory chip - ATX power supply connector
Standard 20-Pin-ATX-power supply connector + 4-Pins - Form Factor
Flex-ATX: 254mm x 185mm - Conformity
This device is classed as a technical information equipment (ITE) in class B and is intended for use in living room and office. The CE-mark approves the conformity by the EU-guidelines:
- EMV-guideline 89/336/EWG electromagnetic tolerance
- LVD-guideline 73/23/EWG use of electric devices within certain voltage-limits
Lieferumfang
Shuttle XPC SB75G2- FB75 Mainboard - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
