Products description

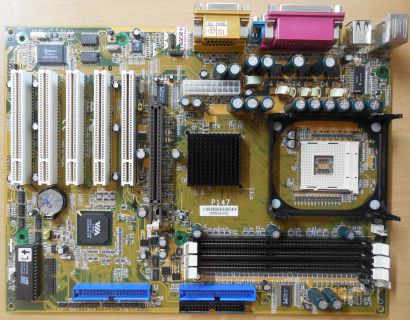

VIA P147 Rev 0.1 Mainboard + Blende Sockel 478 DDR IDE AGP Audio Gameport
Technische Daten
CPU
Supports Intel Pentium 4 at 1.5 ~ 2.0GHz
Supports socket 478 P4 at 100-132 MHz external clock speed with key-in function
Chipset
VIA P4X266 chipset
Memory
Supports 3x DDR DIMM RAM (184pins) at PC1600/PC2100; max. up to 3GB DDR RAM
Audio
Built-in AC97 Digital Audio
Dual full-duplex Direct Sound channels
H/W Sound Blaster Pro for DOS legacy compatibility
FM synthesis for legacy compatibility
Support game and MIDI port
Slots
1 x AGP slot
5 x PCI slots
Storage
Supports ATAPI (e.g. CD-ROM) devices on IDE 1, 2 interfaces.
2 independent high performance PCI IDE interfaces capable of supporting PIO Mode 3/4 and Ultra ATA-33/66/100 devices.
Intern
Echtzeituhr/Kalender mit Batteriepufferung
2 x IDE connectors
1 x Floppy connector
1 x 3-pin CPU FAN connector
1 x 3-pin System FAN connector
1 x 3-pin Power FAN connector
1 x Wake-On-LAN connector
1 x CD-In connector
1 x AUX1 connector
2 x USB connectors for additional 4 USB Ports
1 x CMOS Jumper
1 x FSB Jumper
1 x Front Panel connector
20-pin ATX Power Supply Connector
Rear Panel I/O
1 x PS/2 keyboard
1 x PS/2 mouse
1 x Parallel (EPP, ECP, SPP)
2 x Seriell
2 x USB
Audio Anschlüsse: 1 x Line-In, 1 x Line-Out, 1 x Mikrofon, 1 x Midi/Gameport
BIOS
2Mb Award Plug & Play BIOS with unique "SmartFlash" designed. By simply pressing [Alt] [F2] to execute the built in "Award Flash Program" , which will upgrade to the current BIOS as they are released
Vcore (-0.1v ~ +0.2v @+0.025) adjustable in BIOS
DIMM Voltage (0.00v ~ 0.35v @+0.05v) adjustable in BIOS
Multiplier (8x ~ 23x @+1x) adjustable in BIOS.
Power Management
Software power-down when using Windows 95/98/2000/ME.
Supports ring-in feature (remote power-on through external modem which allows system to be turned on remotely).
Resume by alarm which allows your system to turn on at a pre-selected time.
Power Loss Recovery which in the event of a power interruption, your system will automatically turn itself back on without user attention.
Supports CPU Hardware sleep and System Management Mode (SMM).
Supports the CPU, PWR and Chassis fan Auto Stop in sleep mode.
Supports the System Power LED (Panel) blinks in the sleep mode.
Form Factor
225 mm x 305mm ATX size.
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
