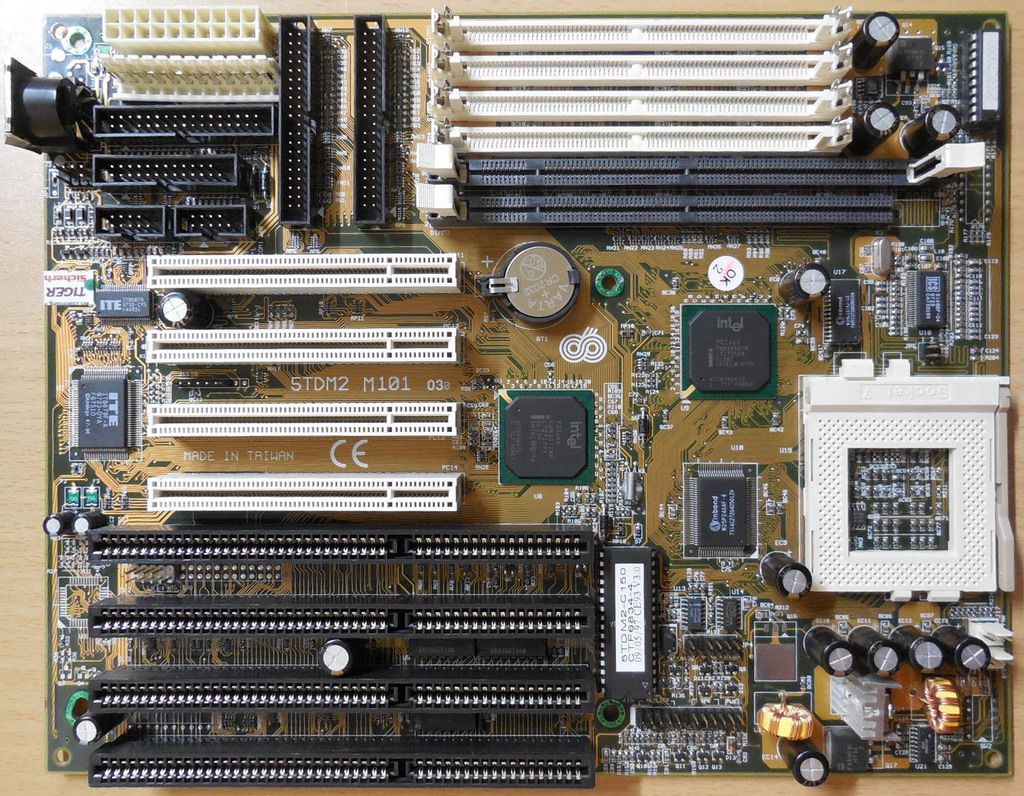

Chaintech 5TDM2 M101 Retro AT Mainboard Sockel 7 EDO SD RAM 4x ISA PCI IDE USB
Technische Daten
Hersteller Chaintech
Model 5TDM2 M101
Sockel Sockel 7 (321-pin ZIF)
CPU-Unterstützung
AMD-K5™ (PR75-PR166), AMD-K6™ (PR166 & faster), AMD-K6™ 3D
IBM®/Cyrix® 6x86-PR166+ (Rev 2.7 or later), IBM®/Cyrix® 6x86L™ PR150+-PR200+, IBM®/Cyrix® 6x86MX™ PR166+-PR233+
Intel Pentium® processors without MMX up to 200MHz, Intel Pentium® processors with MMX up to 233MHz
High efficiency Switching Power module
Innovative SeePU Technology (Jumperless CPU installation via BIOS)
Optional CPU overheat protection via APTC (Active Process Temperature Control) technology
Optional SMART (System Monitoring & Alerting) technology with LDCM utility
FSB Supports 50/60/66/*68/*75/*83 MHz system clock speeds (*Overclock)
Cache Standard 512KB (64k*64x1) Pipelined Burst SRAM integriert
Chipsatz Intel® 82430TX two chip PCIset
RAM
4 x 5V 72-Pin SIMM sockets support 4/8/16/32MB, 32/36-bit, 70-ns or faster memory modules
2 x 3.3V unbuffered 168-pin DIMM sockets support 8/16/32/64/128MB, 64/72-bit DRAM memory modules

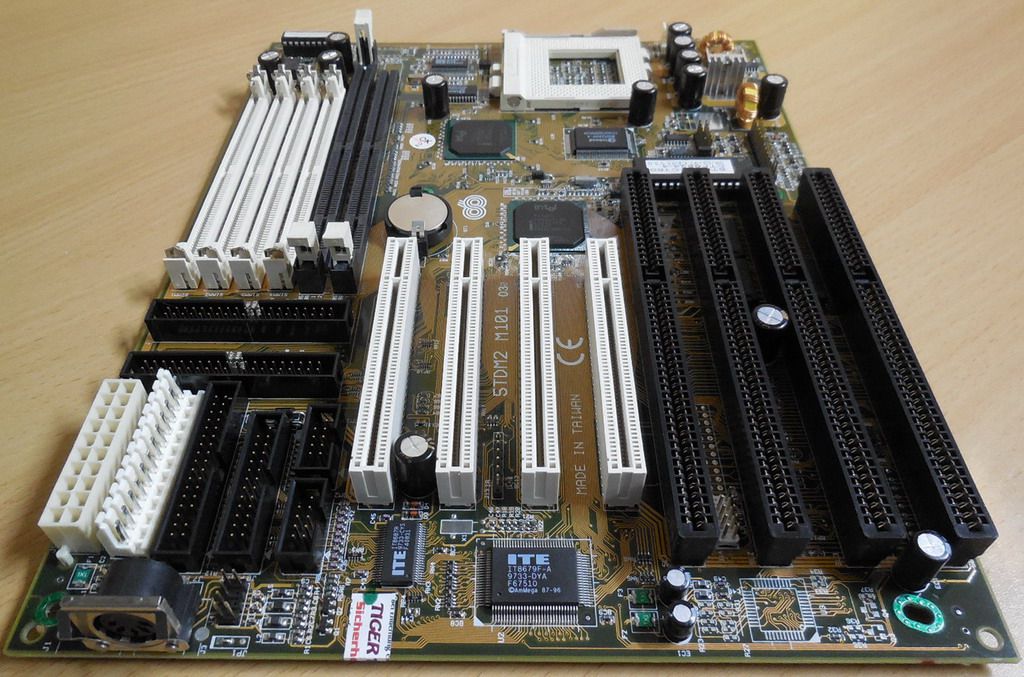

Leider fehlt die rechte Halterung der RAM Bank DIMM2. Allem Anschein nach wurde diese professionell entfernt damit das Mainboard im vorherigen Gehäuse eingebaut werden konnte. Die Bank ist technisch funktionstüchtig. Betrachte hierzu bitte die Bilder genauer.
Support Synchronous(12ns or faster)/EDO/FPM (70ns or faster) DRAM modules
Maximum 256MB memory size
Slots
4 x 16-bit ISA slots
4 x 32-bit PCI slots (all are Master Mode, PCI V2.1 compliant)
IDE
Two Ultra DMA-33 PCI IDE Ports
Supports up to PIO Mode 4, Multi-word DMA Mode 2 & Ultra DMA-33 timings
Complete Bus Master Drivers for well-known multi-tasking operatingsystems
On Board Ultra I/O Functions
ITE8679 I/O chip
1 x One floppy disk drive connector supports up to 2.88MB, 3 Mode, and has 1Mbps transfer rate
2 x Two 16550A compliant serial ports
1 x One Standard/ECP/EPP parallel port
Supports IrDA IR function, up to 115.2kbps
BIOS
Award System BIOS
1Mb Flash ROM
Supports PnP, APM, DMI & multi-device (such as floppy, IDE/SCSI, CD-ROM, etc.) booting features
Built-in Trend ChipAway Virus for a 100% virus-free system boot-up
Green PC Meets EPA Green PC standard: power consumption under 30W on Doze, Standby or Suspend modes
Advanced Management Capability
Supports Software power off control, Over-ride power button, Power-on by modem, Power-on by alarm, Power failure recovery, Blinking LED in suspend, etc.
Flash BIOS protect, Reset switch protect via BIOS
Poly-fuse over-current protection for USB and keyboard
Interne Steckplätze 4 x ISA, 4 x PCI, 1 x PS/2 Mouse interface connector, 2 x IDE connectors, 1 x Floppy connector (FDD), 1 x J8 Printer connector, 1 x COM 1 connector, 1 x COM 2 connector, 1 x USB connector, 1 x J13 IR connector, 1 x J15 Front Panel connector, 1 x JP2 CMOS Jumper, 1 x JP4 FAN 78 connector, 1 x 3-pin CPU FAN connector, 1 x 3-pin System FAN connector, 1 x JP5 Factory connector, 1 x 6+6-pin AT Mainboard Power connector, 1 x ATX Mainboard Power connector
Externe Anschlüsse 1x AT Tastatur
Formfaktor Baby AT; ca. 280mm x 221mm, 5 mounting holes
Besonderheiten Das Mainboard bietet unter anderem die Wahl aus SD-RAM Speichern oder EDO, bzw. FPM Mode RAM. EDO/FPM und SD-RAM sind nicht gleichzeitig verwendbar!!! Außerdem bietet das Mainboard die Möglichkeit entweder ein AT Netzteil oder ein ATX Netzteil zu verwenden!
Lieferumfang
Nur das Mainboard * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
