Products description

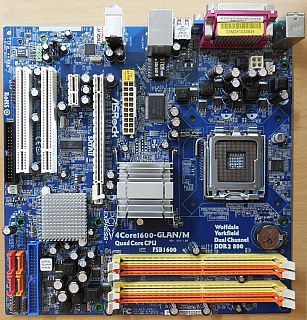

ASRock 4Core1600-GLAN/M Rev 1.02 Mainboard + Blende Intel G31 Sockel 775 DDR2
Technische Daten
CPU
LGA 775 for Intel® Core™ 2 Extreme / Core™ 2 Quad / Core™ 2 Duo / Pentium® Dual Core / Celeron, supporting Penryn Quad Core Yorkfield and Dual Core Wolfdale processors
Compatible with all FSB 1600*/1333/1066/800 MHz CPUs
Supports Hyper-Threading Technology, Untied Overclocking Technology, EM64T CPU
*In overclocking mode.
Chipset
Northbridge: Intel® G31 + Southbridge: Intel® ICH7
Memory
4 x DDR2 DIMM slots*
Supports DDR2 800/667 non-ECC, un-buffered memory; Dual Channel DDR2 memory technology
Max. capacity of system memory: 4GB**
*Before you install memory module on this motherboard, please read below message to avoid any improper installation:
» Due to chipset limitation, if you plan to install three or four memory modules on this motherboard, please install only single-sided memory modules.
» To install two memory modules on this motherboard, please install them on DDRII_1 and DDRII_3 DIMM sockets.
For the detailed installation information, please refer to the user manual or quick installation guide.
**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP and Windows® Vista™. For Windows® XP 64-bit and Windows® Vista™ 64-bit with 64-bit CPU, there is no such limitation.
BIOS
4Mb AMI Legal BIOS
Supports "Plug and Play"
ACPI 1.1 Compliance Wake Up Events
Supports Jumperfree
SMBIOS 2.3.1 Support
Graphics
Intel® Graphics Media Accelerator 3100
Pixel Shader 2.0, DirectX 9.0
Max. shared memory 384MB
Audio
5.1 CH Windows® Vista™ Premium Level HD Audio (ALC662 Audio Codec)
LAN
PCIE x1 Gigabit LAN 10/100/1000 Mb/s
Realtek RTL8111B/RTL8111C
Supports Wake-On-LAN, PXE
Slots
1 x PCI Express x16 slot
1 x PCI Express x1 slot
2 x PCI slots
Connector
4 x SATA2 3.0 Gb/s connectors (No support for RAID and Hot Plug functions)
1 x ATA100 IDE connector (supports 2 x IDE devices)
1 x Floppy connector
1 x DeskExpress Hot Plug Detection header
CPU/Chassis FAN connector
24 pin ATX power connector
4 pin 12V power connector
CD in header
Front panel audio connector
2 x USB 2.0 headers (support 3 USB 2.0 ports)
1 x WiFi/E header
Rear Panel I/O
1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
1 x Serial Port: COM1
1 x VGA Port
1 x Parallel Port (ECP/EPP support)
4 x Ready-to-Use USB 2.0 Ports
1 x RJ-45 LAN Port
HD Audio Jack: Line in / Front Speaker / Microphone
Unique Feature
Instant Boot
Hybrid Booster: CPU Frequency Stepless Control, ASRock U-COP, Boot Failure Guard (B.F.G.)
Hardware Monitor
CPU Temperature Sensing; Chassis Temperature Sensing; CPU Fan Tachometer; Chassis Fan Tachometer; CPU Quiet Fan; Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor
Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
OS
Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit / 2000 compliant
Certifications
FCC, CE
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
