Products description

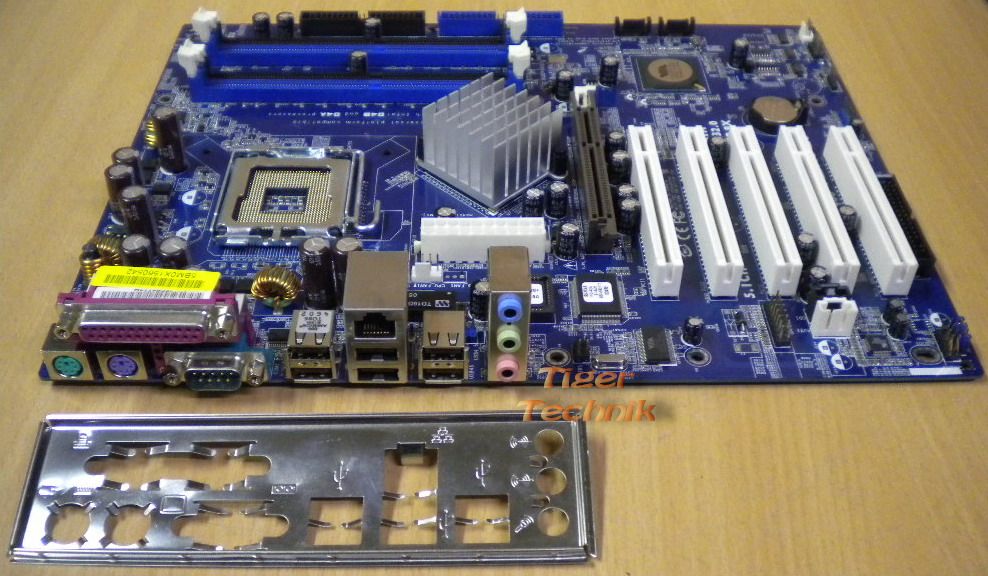

ASRock 775V88 Rev. 1.01 Mainboard
Sockel 775 AGP PCI LAN Seriell + Blende
Technische Daten:
Hersteller: ASRock
Model: 775V88 Rev. 1.01
Unterstützte CPUs: Intel Pentium 4, Celeron
Chipsatz: VIA PT880
Sockel: Intel 775
RAM: Dual Channel DDR memory technology, Supports DDR400/333/266 non-ECC, un-buffered memory, DIMM slots: 4, Max. capacity of system memory: 4GB*Due to the chipset limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP and Windows® XP 64-bit.
BIOS: 2Mb AMI BIOS with ACPI, SM BIOS 3.0, PnP
Audio: CMedia CMI9761 6 channel AC'97 audio codec
Interne Anschlüsse: 2 x SeialATA 1.5Gb/s connectors, supports RAID,0,1,JBOD, SATA HDD_Hotplug, 2 x ATA 133/100/66 IDE connectors ( supports 4 x IDE devices), 1 x Floppy connector, CPU/Chassis FAN connectors, 20 pin ATX power connector, 4 pin +12V ATX power connector, IDE LED connector, CD/AUX audio in header, Front panel audio connector, 2 x USB 2.0 port pin headers
Externe Anschlüsse: 6 x USB2.0 ports, 1 x RJ45 LAN port, 1 x Serial port (COM1), 1 x PS2 Keyboard connector, 1 x PS2 Mouse connectors, 1 x Parallel port (LPT1), 1 x Audio ports ( Line In/Out, Mic In)
Formfaktor: ATX
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
