Products description

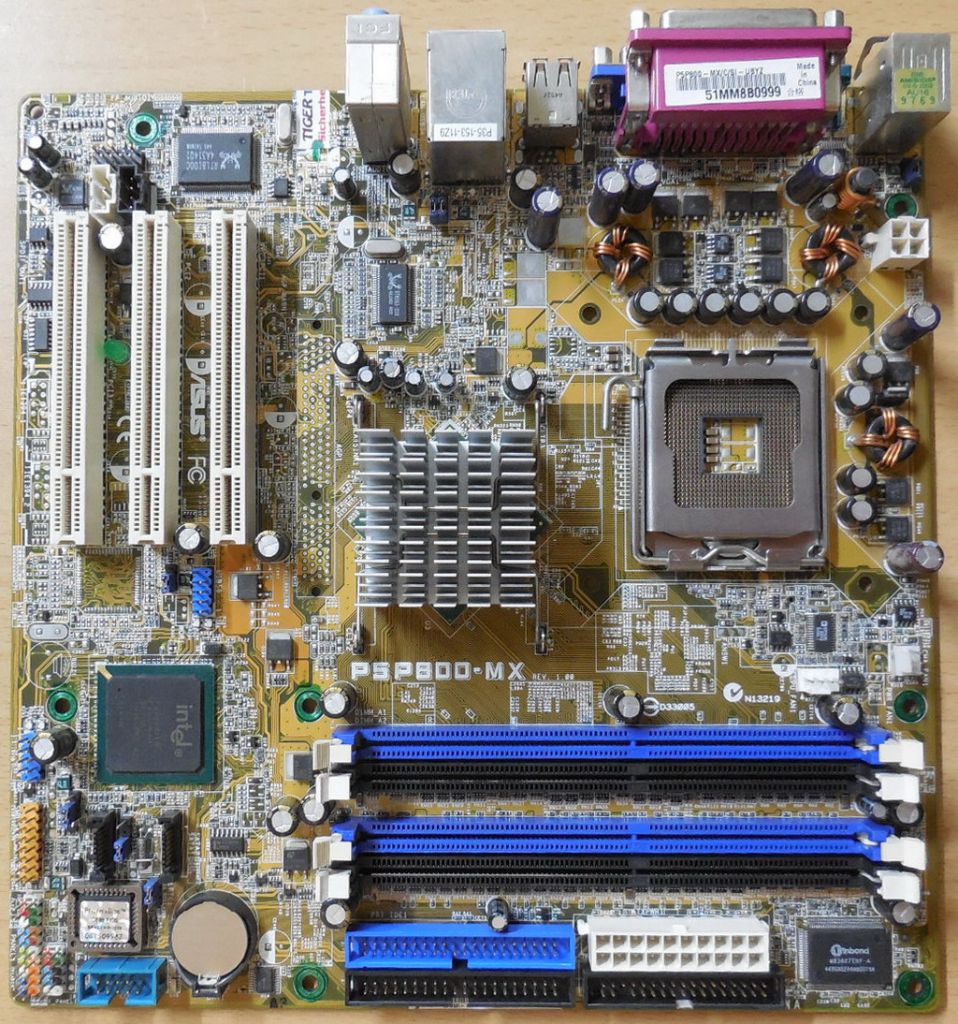

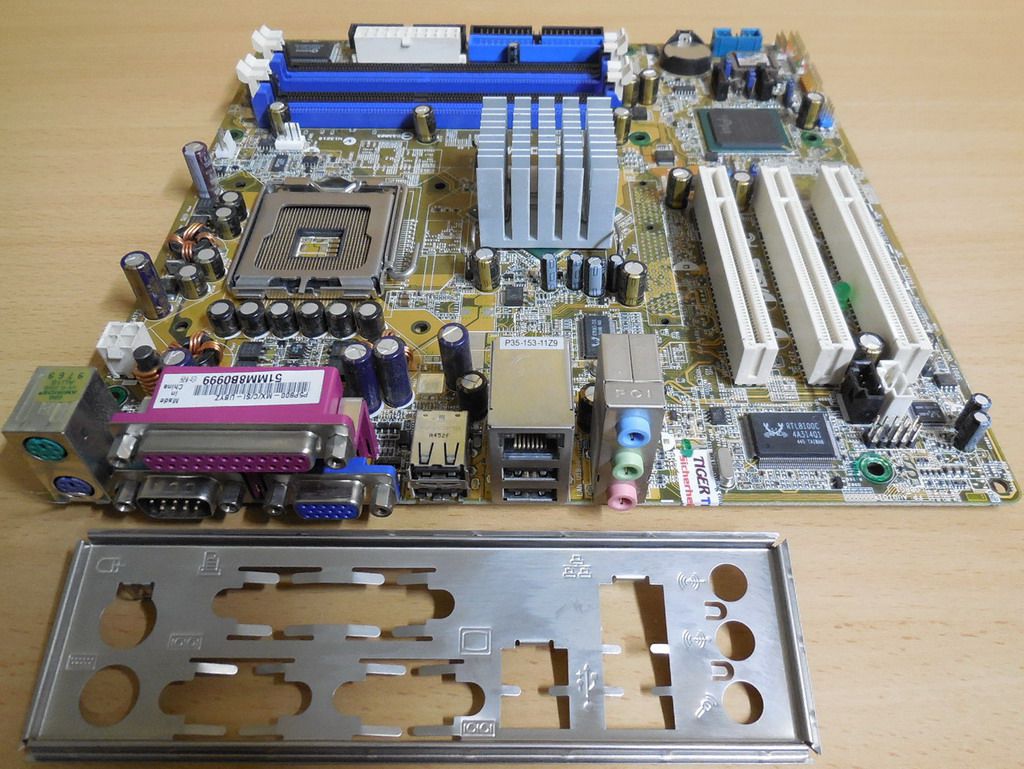

ASUS P5P800-MX Rev 1.00 Mainboard + Blende Intel Sockel 775 VGA LAN Audio
Technische Daten
CPU
LGA775 socket for Intel® Pentium® 4 / Celeron® Processors
Compatible with Intel® PCG 04A and 04B processors
Supports Intel® Hyper-Threading Technology
*Refer to the Asus Website for Intel CPU support list
Chipset
Intel® 865GV / ICH5
Front Side Bus (FSB)
800 / 533 MHz
Memory
4 x 184-pin DIMM, max. 4GB, DDR1 400/333/266 MHz, non-ECC, un-buffered memory
Dual channel memory architecture
ASUS Hyper-Path Technology
*Refer to the Asus Website or user manual for Memory QVL (Qualify Vendor List)
Expansion slots
3 x PCI
Storage
2 x Ultra DMA 133/100/66/33
2 x Serial ATA
VGA
Intel Extreme Graphics 2 by Intel 865GV chipset
Audio
Realtek ALC665 6-channel Audio CODEC; S/PDIF out interface support
LAN
Realtek RTL8100C 10/100Mbps Fast Ethernet Controller
USB
8 x USB 2.0 ports (4 ports at mid-board, 4 ports at back panel)
Special features
ASUS MyLogo2; ASUS CrashFree BIOS 2; ASUS EZ Flash; ASUS Q-Fan; ASUS Instant Music Lite
Rear panel I/O
1 x Parallel port
1 x Serial port
1 x VGA port
1 x PS/2 keyboard port
1 x PS/2 mouse port
4 x USB 2.0 ports
1 x LAN RJ-45 port
6-Channel Audio I/O ports
Internal I/O
2 x SATA connectors
2 x IDE connectors
1 x FDD connector
2 x USB 2.0 connectors for 4 additional USB ports
1 x Game/Midi connector
1 x COM2 connector
1 x Chassis Intrusion connector
1 x CD Audio connector
1 x AUX1 connector
1 x S/PDIF-Out connector
1 x Front Audio Panel connector
1 x Front System Panel connector
1 x KB_PW Jumper
1 x USBPW1-2 Jumper
1 x USBPW3-4 Jumper
1 x USBPW5-6 Jumper
1 x USBPW7-8 Jumper
1 x 4-Pin CPU fan connector
1 x 3-Pin Chassis fan connector
1 x CMOS Jumper
4-pin CPU 12V power connector
20-pin ATX Power connector
BIOS features
4 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3; ASUS EZ Flash, ASUS CrashFree BIOS 2, C.P.R. (CPU Parameter Recall), ASUS MyLogo2
Industry Standard
PCI 2.2, USB2.0
Manageability
DMI2.0, WfM2.0, WOL by PME, WOR by PME, Chassis Intrusion
Form Factor
uATX Form Factor, 9.6"x 9.6" (24.4cm x 24.4cm)
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
