Products description

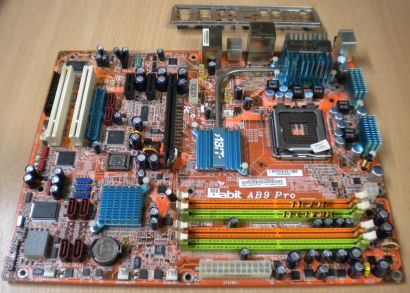

Abit AB9 Pro ABp-UDL001310 V1.00
Motherboard + Blende
Intel®(LGA775) Dual channel DDR2 800/667/533
Technische Daten
CPU
Support Intel® Core™ 2 Quad, Core 2 Duo Extreme, Core 2 Duo, Pentium® D and Pentium® 4 processors with1066/800MHz FSB
Support Intel® 2006FMB Conroe CPU
Chipset Intel® P965 / ICH8R Chipset
Memory
4 X 240-pin DIMM sockets support max. memory capacity 8GB
Supports Dual channel DDR2 800/667/533 Un-buffered Non-ECC memory
LAN On board PCI-E Gigabit LAN controller supports 10/100/ 1000M
Audio
On board 7.1 CH HD Audio CODEC
Supports auto jack sensing and optical S/PDIF Out
Expansion Slots
1 x PCI-E X16
2 x PCI-E X1
2 x PCI
Internal I/O
1 x Floppy Port supports up to 2.88 MB
1 x Ultra DMA 133/100/66/33 IDE connector
9 x SATA 3Gb/s connector
3 x USB header (support 6 ports)
1 x FP-Audio, 1 x CD-In
Back Panel I/O
1 x PS/2 Keyboard, 1 x PS/2 Mouse
abit Silent OTES™
1 x S/P DIF In, 1 x S/P DIF Out,
1 x eSATA
7.1 CH Audio connector (Front, Line-in, MIC-in, Center/Subwoofer, Surround, Rear Surround)
4 x USB 2.0, 2 x RJ-45 LAN connector
Serial ATA
6 x SATA 3Gb/s offer by Intel® ICH8R support Intel® Matrix Storage Tech(AHCI & RAID 0/1/5 /10)
Form Factor ATX form factor 305 x 245mm PCB Color: Orange
RoHS 100% lead-free process and RoHS compliant
http://static.highspeedbackbone.net/pdf/Abit_ab9_series_Manual.pdf
Lieferumfang
Abit AB9 Pro Mainboard - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
