Products description

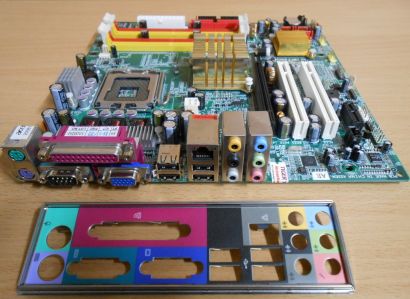

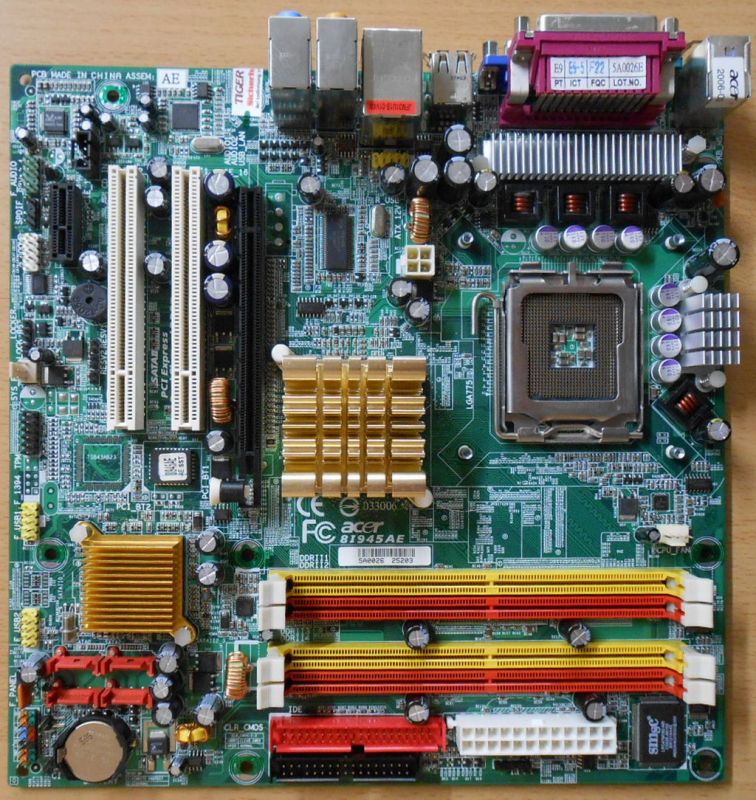

Acer 8I945AE Rev 1.1 Gigabyte Mainboard + Blende
Sockel 775 SATA PCIe
Technische Daten
ausgebaut aus einem Acer PC. Das Board wurde von Gigabyte für Acer gebaut. Bei entsprechenden Vorraussetzungen auch für andere PC´s geeignet.
CPU
Intel® Pentium® 4 processor with 533/800/1066 MHz FSB
Intel® Celeron® D processor with 533 MHz FSB
Chipset
Intel® 945G
Memory
Supporting up to 4 GB of DDR2 400/533/667 RAM
Dual channels supported on four DIMMs
Expansion slots
Two PCI slots
PCI Express TM x1 slot
PCI ExpressTM x16 slot
Storage
1 x UltraATA133/100/66/33 for up to 2 IDE devices
4 x SATA II ports for up to 4 SATA devices
Audio
Embedded Intel® HD Audio CODEC, Realtek ALC880
LAN
Marvell 88E8052 with gigabit Ethernet
VGA
Integrated graphics with DVMT 3.0
Back Panel I/O
1 x Parallel
1 x Serial
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x VGA port
1 x Audio I/O
4 x USB 2.0
1 x RJ-45 Port
Internal I/O Connectors
CPU/System fan connectors
24 pin ATX power connector
4 pin P4 power connector
1 x Floppy port connector
Front Panel connector
CD_IN audio connector
Front Audio panel connector
2 x USB 2.0 connector supports additional 4 USB 2.0 ports
1 x COM B connector
1 x TPM connector
1 x SPDIF-Out connector
Form Factor
micro ATX form factor
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
