Products description

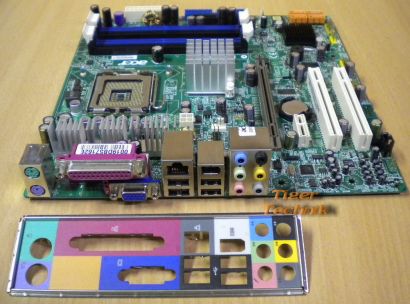

MSI MS-7326 Mainboard für Acer + Blende
z.B. für Acer Aspire T671 oder baugleich geeignet
Technische Daten
Aspire T671 Mainboard
CPU/Processor
Socket: 775
Supports the following processors:
Intel Core 2 Duo, up to 3.8GHz, 533/800/1066MHz system bus
Intel Pentium D, up to 3.6GHz, 533/800MHz system bus
Intel Pentium 4, up to 3.8GHz, 533/800MHz system bus
Intel Celeron D, up to 3.2GHz, 400/533MHz system bus
Chipset
North bridge: ATI RS600L (unlock)
South bridge: ATI SB600
Super I/O: ITE8718
Form factor
Max. 244 mm x 244 mm, MicroATX
Memory
Dual Channel DDR2 800/667/533/400, Unbuffered DIMM
Support 4x DDRII DIMM (8 GB Maximum capacity)
Dual channel function enabled when plugging in two same memory size DDR2 memory modules
Steckplätze
1x PCI Express® X16 Slot, 1x PCI Express® X1 Slot, 2x PCI Slot
Video graphics
ATI RS600 on-die graphic solution (ATI Radeon)
ATI AVIVO technology support
Multiple display features support
One D-Sub VGA port on the rear side
SDVO interface which supports hot plug detection
Onboard audio
Realtek HD audio codec ALC888 HD codec 7.1 channels
Six audio jack on the rear side of the unit, compliant to Realtek HD audio definition
One 2*5 front audio header
One S/PDIF-out header (1*4)
One AUX-In header
S/N ratio: 90 dB for the rear output jack
Onboard LAN
Marvell 88E8056, Gb PHY featuring
Floppy Disk Drive
One slot, 1.44MB/3 mode 3.5" devices support
SATA Interface + IDE
Four slots
Compliant to SATA 2.0 specification
IDE/ RAID/ AHCI mode support RAID 0, 1, 10 support HDD/ CD-ROM/ CD-RW/ DVD-ROM/ DVD-RW/ DVD+RW/ DVD Dual/ DVD Super Multi Plus support
1 x IDE Port for 2 IDE devices
USB
10 x USB2.0/1.1(Rear 4 ports, Front 6ports)
Five OHCI and one EHCI host controllers to support ten ports
Three 2*5 onboard headers
Four ports for front daughter board
Two ports for internal USB card reader + IR module
Compliant to standard Intel FPIO pin definition
1394a
•1x back panel and 1x via 1394 header (TSB43AB23PDTG4 2-port)
Buzzer
•One onboard buzzer
CIR & IR Blaster
Compliant to ITE's pin definition to support CIR & IR blaster function for Vista home premium SKU
Power-up feature support
Back panel I/O
PS/2 keyboard (purple)
PS/2 mouse (green)
One LPT port
One VGA out port
Four USB (2.0)
One IEEE 1394a port
One RJ-45 networking port (LAN)
Audio ports:
line in (light blue)
line out (lime)
microphone (pink)
side speaker out (gray)
rear speaker out (black)
center/subwoofer (yellow orange)
Internal connectors
One IDE connector
One floppy drive connector
One ATX 24-pin power connector
One ATX 4-pin +12v power connector
Four Serial ATA connectors
One IEEE 1394a connector
One 4-pin CPU fan connector
One 3-pin PC fan connector
One serial connector
One front audio connector
One AUX-IN connector
One Front Panel connector
Three USB connectors supporting 2.0 ports
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
