Products description

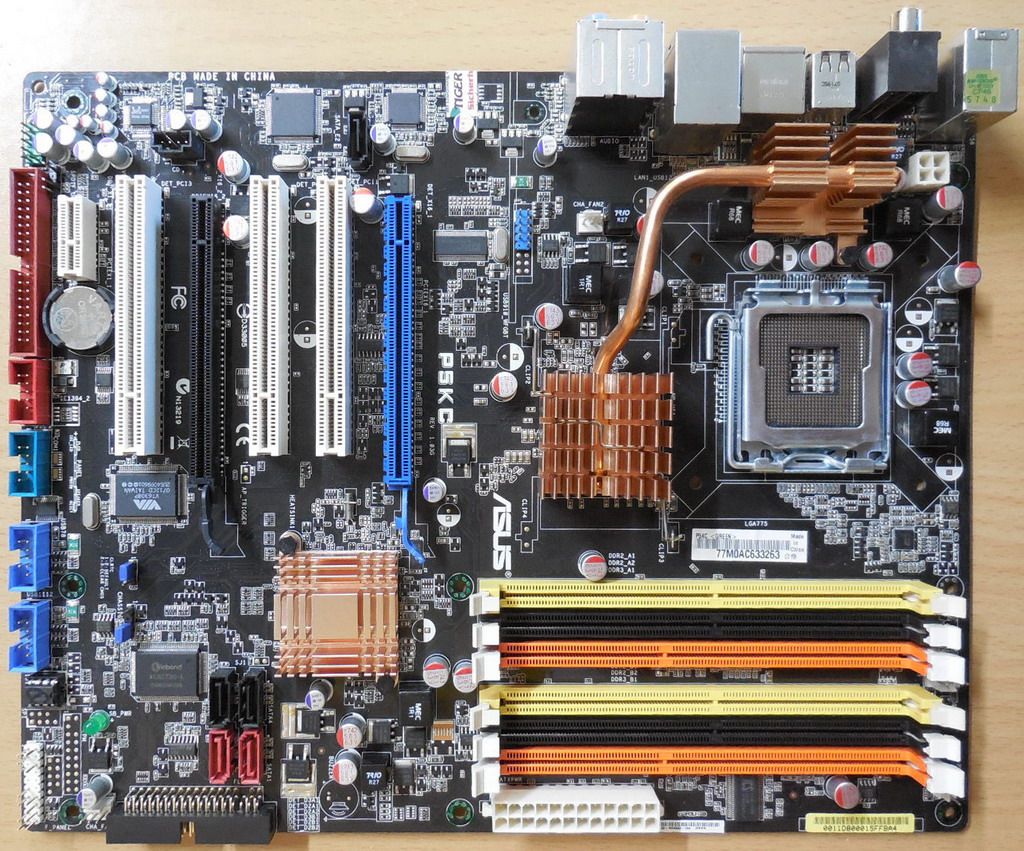

Asus P5KC Rev 1.03G Mainboard + Blende Sockel 775 Intel P35 DDR2 oder DDR3 PCIe
Technische Daten
CPU
Intel® Socket 775 Core™2 Quad / Core™2 Extreme / Core™2 Duo / Pentium® Extreme / Pentium® D / Pentium® 4 / Celeron
Compatible with Intel® 05B/05A/06 processors
Support Intel next generation 45nm multi-core CPU (nach Bios Update!)
Chipsatz
Intel® P35 + Intel ICH9
Front Side Bus
1600/1333/1066/800 MHz
Memory
2 x DIMM, Max. 4 GB, DDR3 1333(O.C.)/1066/800 Non-ECC, Un-buffered Memory
Dual Channel memory architecture
Wahlweise nur DDR2 oder DDR3 seperat nutzbar! Nicht gleichzeitig belegbar!
4 x DIMM, max. 8GB, DDR2 1066*/800 / 667 MHz, non-ECC, un-buffered memory
Dual channel memory architecture
*The chipset officially supports the memory frequency up to DDR3 1066MHz/DDR2 800. Due to the tuning by ASUS exclusive technology, this motherboard natively supports up to DDR3 1333/DDR2 1066MHz. Please refer to the Website of Asus or user manual for Memory QVL
**When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
Expansion Slots
2 x PCIe x16 (blue @16x; black @ x4 or x1 mode)
1 x PCIe x1
3 x PCI
Supports CrossFire Technology
Storage
by Southbridge
4 x SATA 3 GB/s ports
by JMicron® JMB363 PATA and SATA controller
1 x UltraDMA 133/100/66 for up to 2 PATA devices
1 x External SATA 3.0 Gb/s ports
1 x SATA 3.0 Gb/s port (SATA On-the-Go)
Support RAID 0, 1, JBOD
LAN
PCIe 10/100/1000 Gigabit Lan controller
Audio
Realtek ALC 883 8-Channel High-Definition Audio CODEC
Coaxial / Optical S/PDIF out ports at back I/O
Support Jack-Sensing, Enumeration, Multi-streaming
USB
12 USB 2.0/1.1 ports (6 ports at mid-board, 6 ports at back panel)
IEEE 1394
VIA VT6308P controller supports 2 x 1394a ports (1 at midboard; 1 at back panel)
ASUS Unique Features
ASUS Quiet Thermal Solution ASUS AI Gear 2; ASUS AI Nap; ASUS Fanless Design Heatsink solution; ASUS Fanless Design: Stack Cool 2; ASUS Q-Fan 2
ASUS Crystal Sound ASUS Noise Filter
ASUS EZ DIY ASUS Q-Connector; ASUS O.C. Profile; ASUS CrashFree BIOS 3; ASUS EZ Flash 2; ASUS AI Slot Detector
Other Features
ASUS MyLogo 2
Overclocking Features
Intelligent overclocking tools ASUS AI Booster Utility; ASUS AI NOS (Non-delay Overclocking System)
Precision Tweaker vDIMM: 8 -step DRAM voltage control; vCore: Adjustable CPU voltage at 0.0125V increment; vChipset 4-step voltage control
SFS (Stepless Frequency Selection) FSB tuning from 200MHz up to 800MHz at 1MHz increment; Memory tuning from 667MHz up to 1333MHz; PCI Express frequency tuning from 100MHz up to 150MHz at 1MHz increment; Memory tunning from 800MHz up to 1333MHz for DDR3
Overclocking Protection ASUS C.P.R.(CPU Parameter Recall)
Back Panel I/O Ports
1 x PS/2 Keyboard
1 x External SATA
1 x Optical SPDIF Out
1 x Coaxial SPDIF Out
1 x IEEE 1394a Firewire
1 x RJ45 Gigabit LAN
6 x USB 2.0/1.1
8-channel Audio I/O
Internal I/O Connectors
5 x SATA connectors
1 x IDE connector for up to 2 devices
1 x Floppy Disk Drive connector
1 x Front Panel Audio connector (AAFP)
1 x System Panel connector
3 x USB 2.0 connector supports additional 6 USB 2.0 ports
1 x IEEE1394a connector supports additional 1 IEEE1394 port
1 x CPU FAN connector (4-pin)
1 x Power FAN connector (3-pin)
2 x Chassis FAN connectors (3-pin)
1 x S/PDIF Out connector
1 x Chassis Intrusion connector
1 x CD/AUX Audio in connector
1 x Internal Speaker connector
24-pin ATX Power connector
4-pin ATX 12V Power connector
BIOS
8 Mb Flash ROM DMI 2.0
AMI BIOS, PnP, WfM2.0, SMBIOS v2.3, ACPI v2.0a
Manageability
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Form Factor
ATX Form Factor; 12" x 9,6" ( 30.5 cm x 24.4 cm )
Lieferumfang

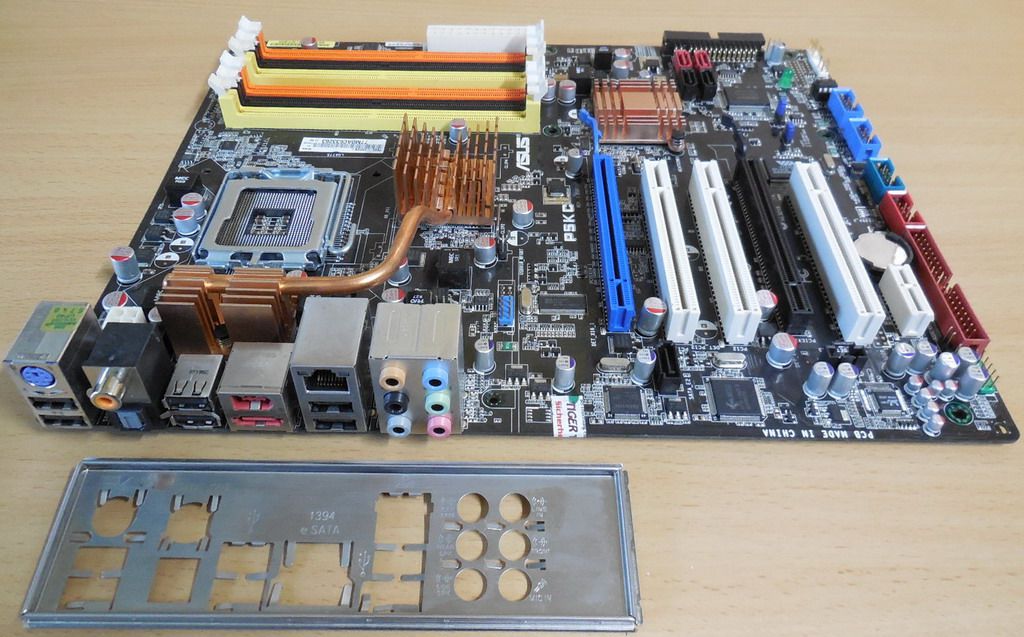

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
